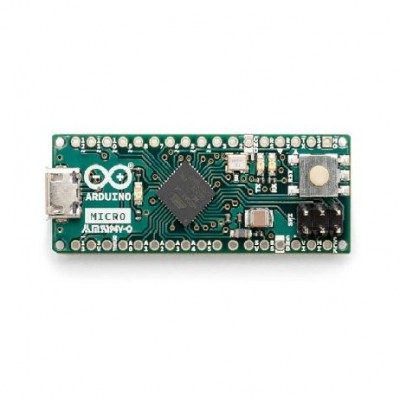

Official Arduino Micro No Headers A000093

The Micro is a microcontroller Official Arduino Micro No Headers board based on the ATmega32U4, developed in conjunction withAdafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

This Official Arduino Micro is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behaviour of the board.

Onboard is the processor, crystal, micro USB connection with fuse, Reset button, ISP low-level reprogramming header, ON LED, TX and RX LEDs, an extra user pin #13 LED, and a 3.3V regulator. Youll probably also want to pick up a micro-B USB cable to connect this board to your computer

You can use it for basic Arduino sketches as well as USB client projects like making it appear as a mouse or keyboard to your computer! Although it is not shield compatible it does have all the same pins as a Leonardo. Its best for when you want to shrink your project down or use it on a breadboard.

For more technical details and starting guides, check out the Arduino website

Getting Started:

You can find in theGetting Started sectionall the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

Package Includes:

1 x Official Arduino Micro No Headers A000093
