ODROID-VU7C 7inch 1024600 HDMI Display With Multi-touch

This is ODROID-VU7C 7inch 1024600 HDMI Display With Multi-touch .

Add a display on an ODROID-C4 without any cable by plugging it into the 40pin female header on the back of ODROID-VU7C, and connect the HDMI port on C4 to the one on the VU7C using an HDMI link board. You need a type A-A HDMI cable to use it with an N2+.

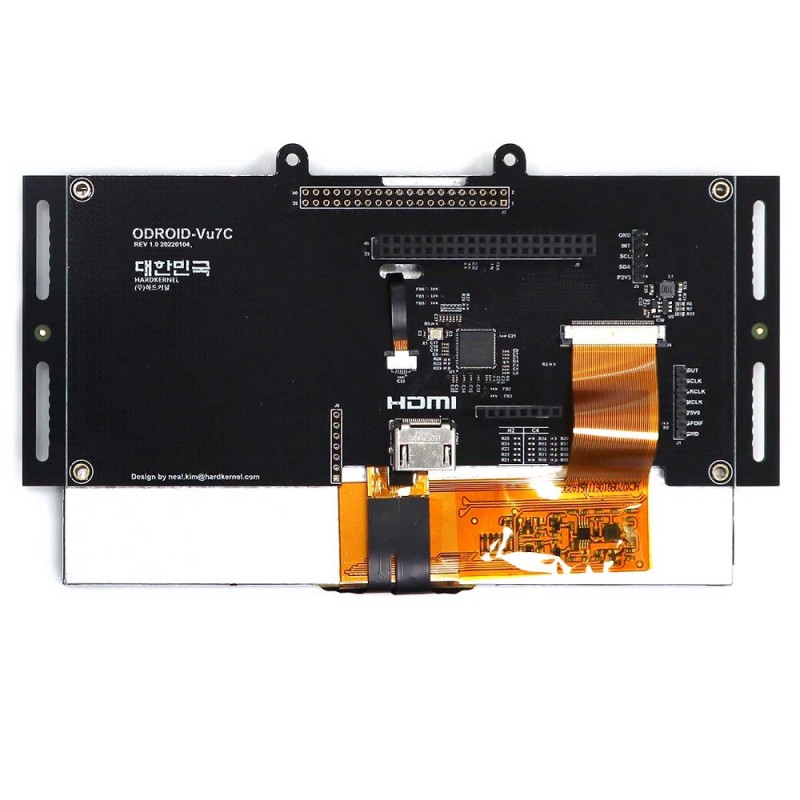

The VU7C is designed to extend the IO ports on the C4 and N2+ while using the display. The 7pin header on VU7C is for I2S. Add a Boom Bonnet kit using a 7-pin cable. The 5pin header on VU7C is for I2C. An RTC Shield is ready to use.

Features:

1. High-Resolution Display: The ODROID-VU7C features a 7-inch LCD screen with a crystal-clear resolution of 1024600, ensuring vibrant visuals and sharp details.
2. HDMI Connectivity: Easily connect the display to your ODROID or any HDMI-compatible device for seamless viewing.
3. Multi-Touch Support: Enjoy intuitive interactions with the responsive multi-touch functionality, making navigation and control effortless.
4. Sturdy Design: The display comes with a robust enclosure, providing protection and durability for various applications.
5. On-Screen Display (OSD) Menu: Quickly access and adjust display settings using the user-friendly on-screen display menu.
6. Compact and Portable: With its compact size, the ODROID-VU7C is highly portable, ideal for projects on the go.
7. Easy Installation: Set up the display effortlessly with user-friendly installation instructions.

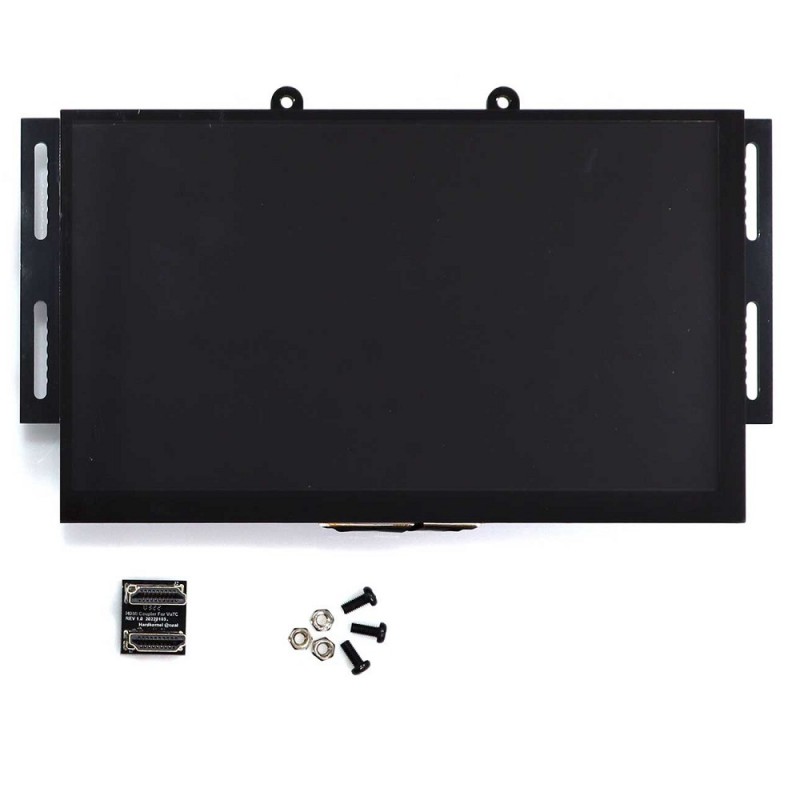

Package Includes:

1 x Fully assembled 7inch display

3 x 3.5mm screws

3 x Hex nuts

1 x HDMI link board (HDMI Coupler)
