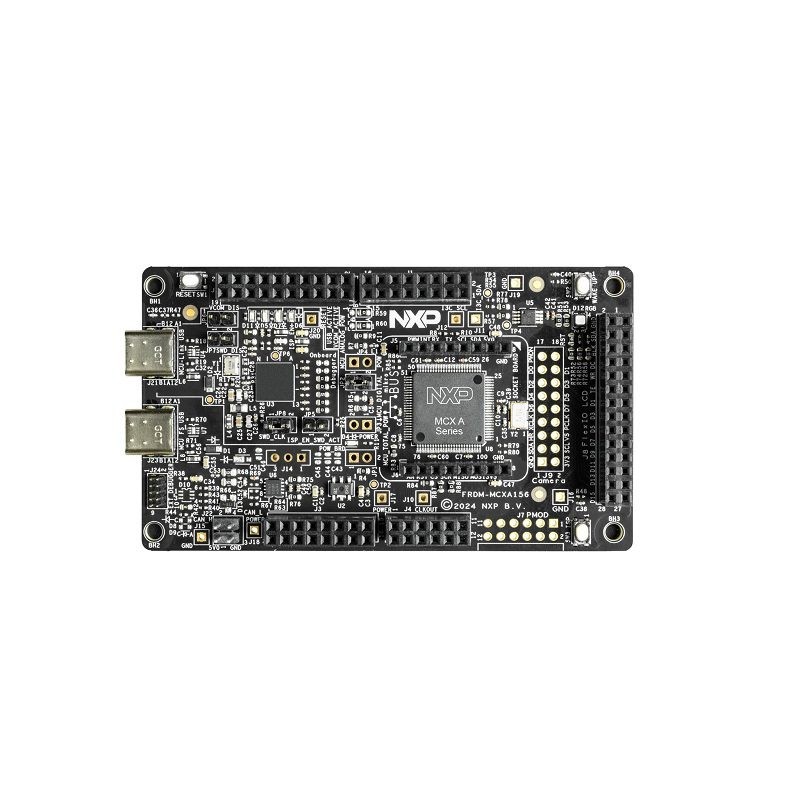

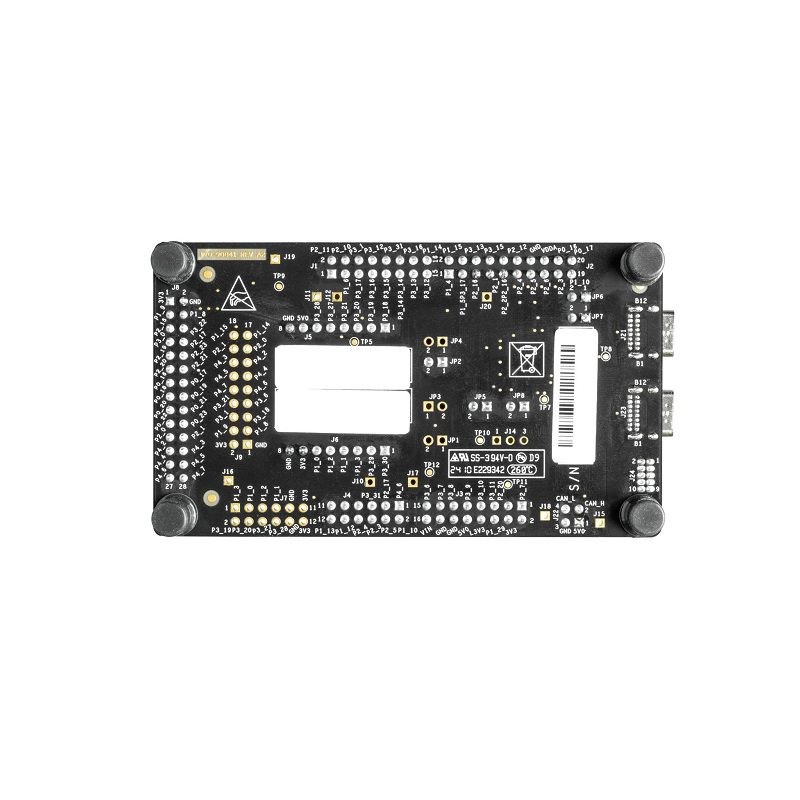

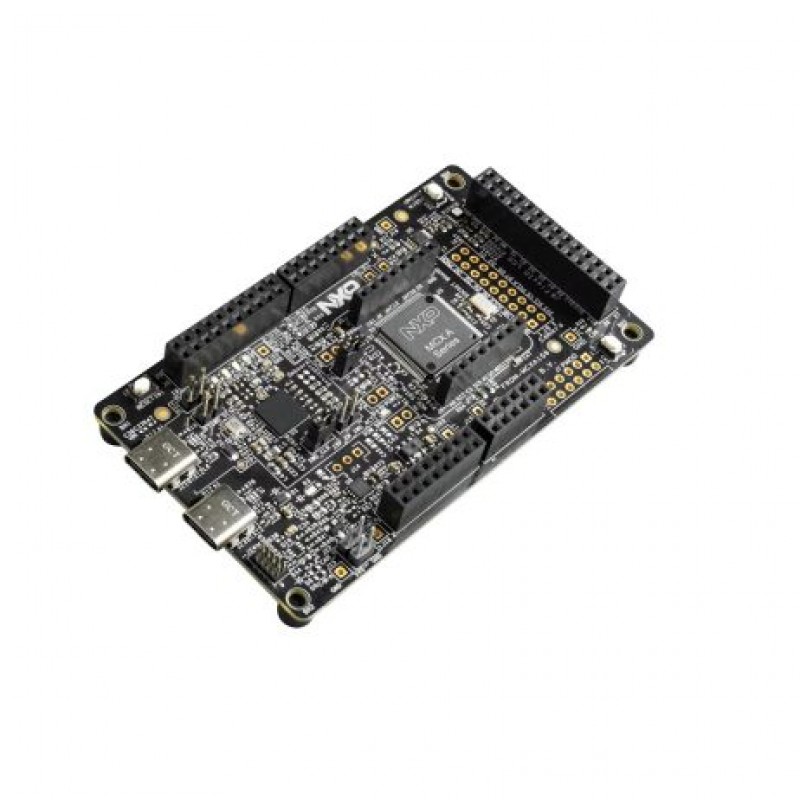

NXP Freedom FRDM-MCXA156 Development Board

It is a compact and scalable development boards for rapid prototyping of MCX A144/5/6 A154/5/6 MCUs. They offer industry standard headers for easy access to the MCUs I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger.

Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUX press Developer Experience.

Features:

1. Microcontroller: MCXA156 Arm Cortex-M33 core, Up to 1 MB flash with up to 128 KB RAM with 8 KB ECC, CAN-FD, FlexIO, FS USB, I3C, LPLUART, LPSPI, LPI2C, DMA and LDO
2. Connectivity : FS USB ports with USB Type-C connector for device functionality, HS USB Type-C connectors (On-board MCU-Link debugger)
3. CAN/I3C/SPI/I2C/UART connector (Arduino, PMOD/mikroBUS, DNP), Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)
4. Debug, On-board MCU-Link debugger with CMSIS-DAP, JTAG/SWD connector
5. Sensor: P3T1755DPJ I3C/IC temp sensor
6. Expansion Options: Arduino Header, FRDM Header, Pmod DNP, mikroBUS, FlexIO/LCD Header, FlexIO/Camera Header, User Interface, RGB user LED, Plus reset, ISP, Wake-up buttons

Applications:

1. Consumer: Air Conditioning (AC)
2. Industrial: Brushless DC Motor (BLDC) Control, Electricity Meter, Motor Drives, Permanent Magnet Synchronous Motor (PMSM), Vital Signs Monitors

Package Includes:

1 x NXP Freedom FRDM-MCXA156 Development Board

1 x Adapter Cable

1 x User Manual
