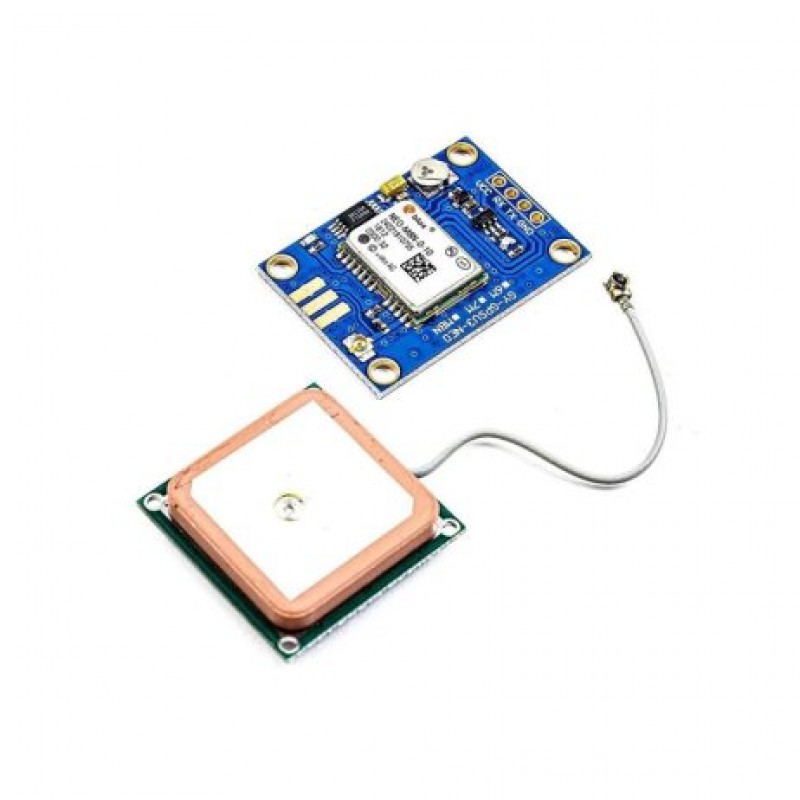

NEO-M8N GPS Module with Ceramic Active Antenna

This is a NEO-M8N GPS Module with Ceramic Active Antenna.

The APM 2.5 NEO M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Note:It is a manual measurement, there may be 2-3 mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

How to interface the GPS module with Raspberry Pi and Arduino?

Hookup guide Click here!

Note: To purchase the GPS module, Click here

Connection Diagram :

Features :

1. The ceramic antenna providesa very strong signal
2. With LED indicator lamp
3. The default baud rate: 9600.
4. Flash memory: 64KB
5. With data backup battery.
6. LED signal indicator.
7. Compatible with various flight controller module.
8. EEPROM save the configuration parameter data when power-down.
9. Assistance AssistNow GNSS Online
10. AssistNow GNSS Offline (up to 35 days)
11. AssistNow Autonomous (up to 6 days)
12. OMA SUPL & 3GPP compliant
13. Oscillator TCXO
14. Built-in RTC crystal
15. Anti-jamming Active CW detection and removal.
16. Extra onboard SAW bandpass filter
17. Memory Flash
18. Supported antennas Active and passive
19. Odometer Travelled distance
20. Data-logger For position, velocity, and time

Find detailed features and specifications in datasheetat Attachment.

Package Includes :

1 x APM 2.5 NEO M8N GPS Module.

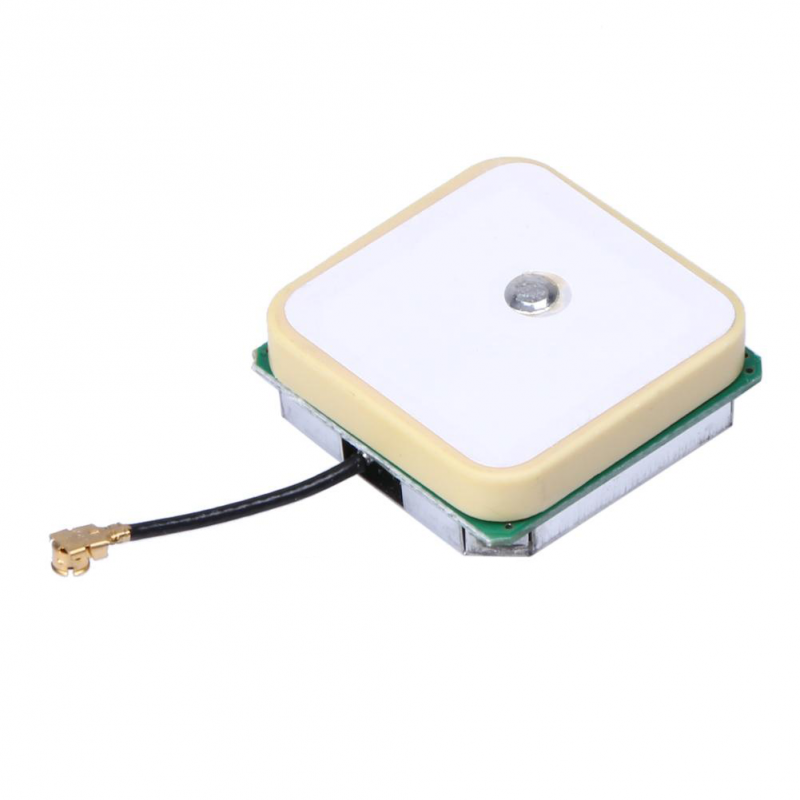

1 xCeramic Active Antenna.
