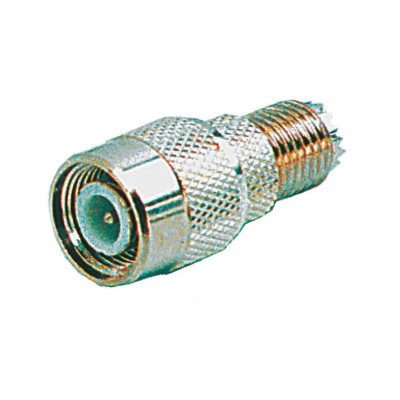

MX UHF Mini Female Socket To MX TNC Male Plug Connector (MX-917) - 10 Pieces Pack

  • Product Code: EPI16850
  • Availability: 12

0 reviews Write a review

  • Rs.6479.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

MX MINI UHF Female to TNC type Male Connector adaptor is a threaded RF connector used to join coaxial cables. MX TNC Connectors are miniature with 50 ohm Impedance, light weight and operate satisfactorily From DC to 11 GHz. While similar to BNC, the TNC Connector features threaded couplings where Vibration and shock are design, considerations.


Features and Specifications:-
  • MX MINI UHF Female to TNC type Male Connector adaptor
  • MX MINI UHF Female to TNC type Male Connector adaptor pin is Gold Plated.
  • MX TNC connector is used to join coaxial cables using a threaded RF connector.
  • MX MINI UHF connector can have frequency response of the RF.
  • MINI UHF connectors are used for RF signal Interconnection
  • MX MINI UHF Female to TNC type Male Connector adaptor has threaded coupling nut.


Applications:-

What are TNC CONNECTORS & their Applications.??

The TNC Series features screw threads for mating. TNC are miniature, threaded weatherproof units with constant 50 O impedance and they operate from 0 - 11 GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.

Applications:

  • Antennas
  • Base Stations
  • Cable Assembly
  • Cellular
  • Components
  • Instrumentation
  • Mil-Aero
  • Networks
  • Radar
  • Telecom
What are UHF & MINI UHF & their Applications.??
UHF stands for Ultra High Frequency. It is used UHF transmission is the physically short wave that is produced by the high frequency. It doesn't refract or bounce off the ionosphere. They are designed for use as coaxial connections where size, weight, and cost factors are critical. Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C,
It is mainly used for broadcasting, TV, Radio transmission, Audio Video, Telecommunication, Antennas, Cable Assembly, Low Frequency equipment, PA Systems and CB radios. Etc.

Mini-UHF connectors are miniaturized versions of UHF connectors, designed primarily for use in mobile phones.

APPLICATIONS:
  • Antennas
  • Automotive
  • Cable Assembly
  • Cable Modems
  • Cellular
  • Components
  • PC/LAN
  • Telecom


Package Includes:-

10 x MX UHF Mini Female Socket To MX TNC Male Plug Connector (MX-917)
Brand/Manufacturer
Country Of Origin
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 695.02 (Inclusive of all Taxes)
