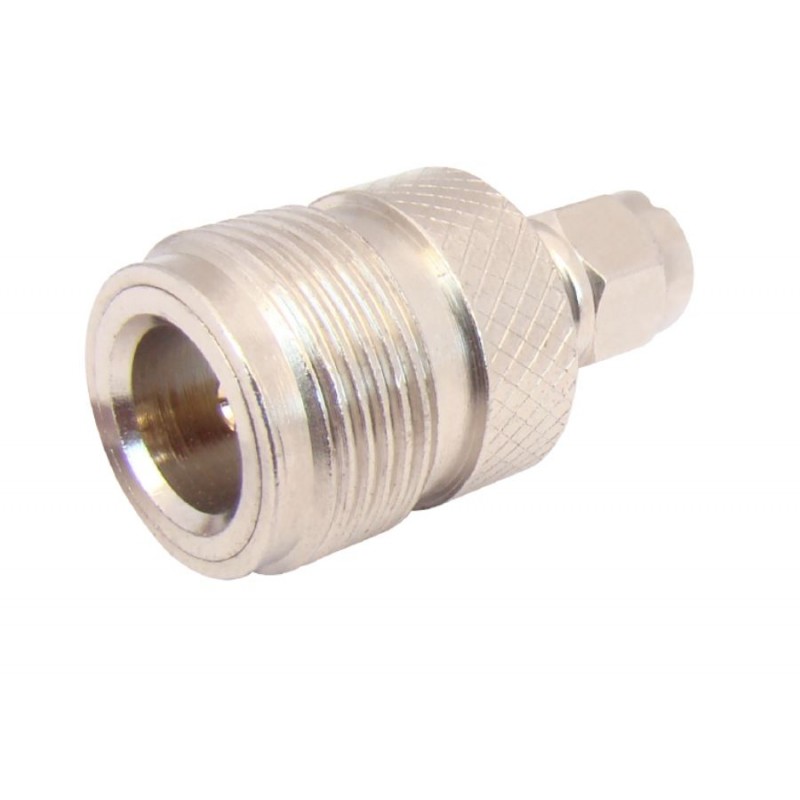

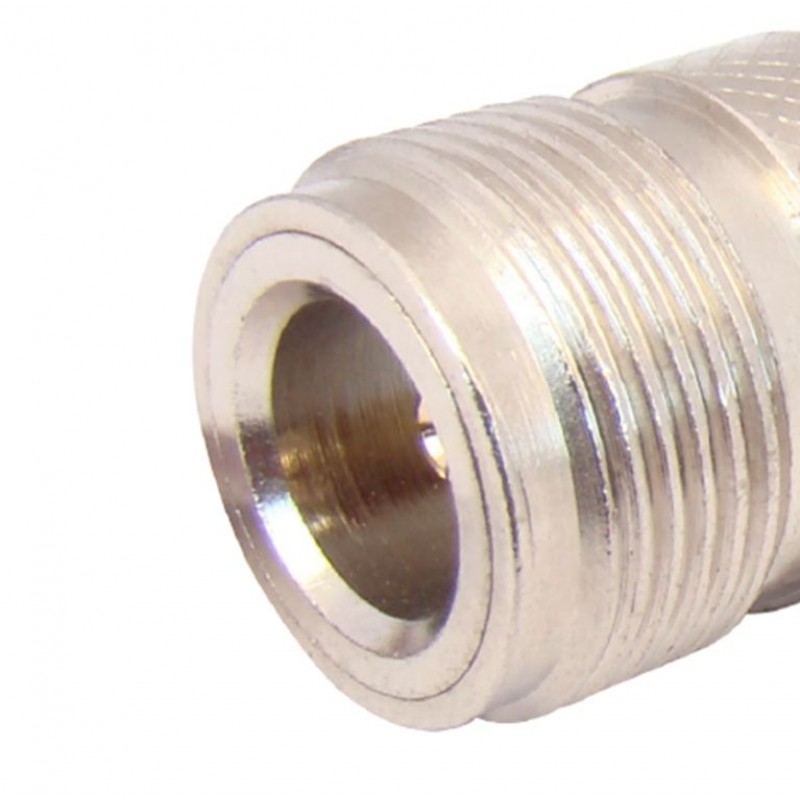

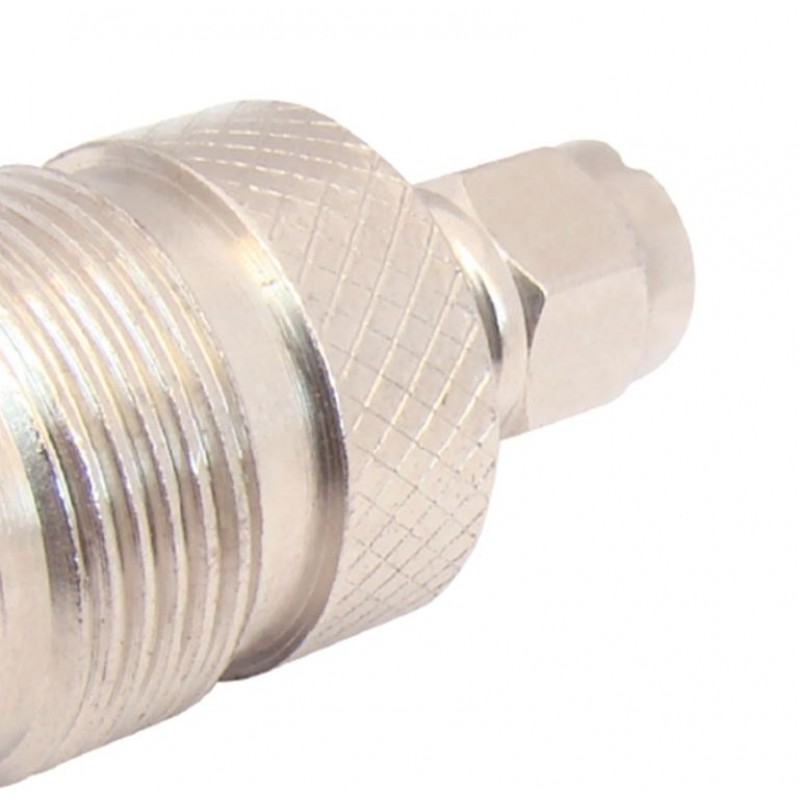

MX SMA Male To MX N Female Connector (MX-340) - 10 Pieces Pack
- Product Code: EPI16576
- Availability: 12
-
Rs.6479.00
- (Excluding 18% GST)
OR
MX SMA Male to N Female connector adaptor is a threaded RF connector used to join coaxial cables. MX N type connectors are capable to carry microwave-frequency signals. MX N type connector was developed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz.
Features and Specifications:-
- MX SMA Male to N Female connector adaptor
- MX SMA Male to N Female connector adaptor pin is Gold Plated.
- MX N connector is used to join coaxial cables using a threaded RF connector.
- MX SMA Connector can have frequency response of the RF.
- SMA connectors are used for RF signal Interconnections frequency up to 18GHz
- MX N type connector can easily handle signal up to 11 GHz.
- MX SMA Male to N Female connector adaptor has threaded coupling nut
Applications:-
What is SMA and its Application?
SMA connectors are semi-precision, subminiature units that provide excellent electrical performance from DC to 18 GHz. These high-performance connectors are compact in size and mechanically have outstanding durability.
For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, these SMA connectors for semi-rigid coaxial cables and the SMA Plug-to-Jack adapter offer a precise and simple means of phase adjustment for microwave devices.
SMA is available both in Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.
Features & Benefits
- Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design.
- Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
- Available for .085" and .141" diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316.
- Phase Adjustable SMA connectors provide ease of mechanical screw adjustments, compared to the delays and expense of laborious cable-trimming.
Applications:
- Base Stations
- Cable Assemblies
- Components
- Instrumentation
- Mil/Aero
- PC/LAN
- Process Controls
- Telecom
What is N Connector and its Application?
N Connectors are a type of Radio Frequency or RF connectors used to join coaxial cables. N connectors are one of the first connectors that can carry microwave frequency signals. This connector is named after Paul Neill of Bell Labs who invented it in 1940s. Originally designed for up to 1 GHz signals, it can now handles up to 11 GHz. The male connector is hand tightened and has an air gap between the center and outer conductors.
APPLICATIONS:
- Antennas.
- Broadcast.
- Radar.
- Test.
- Measurements.
- LANs and Transmitters.
10 x MX SMA Male To MX N Female Connector (MX-340)
* Product Images are shown for illustrative purposes only and may differ from actual product.
