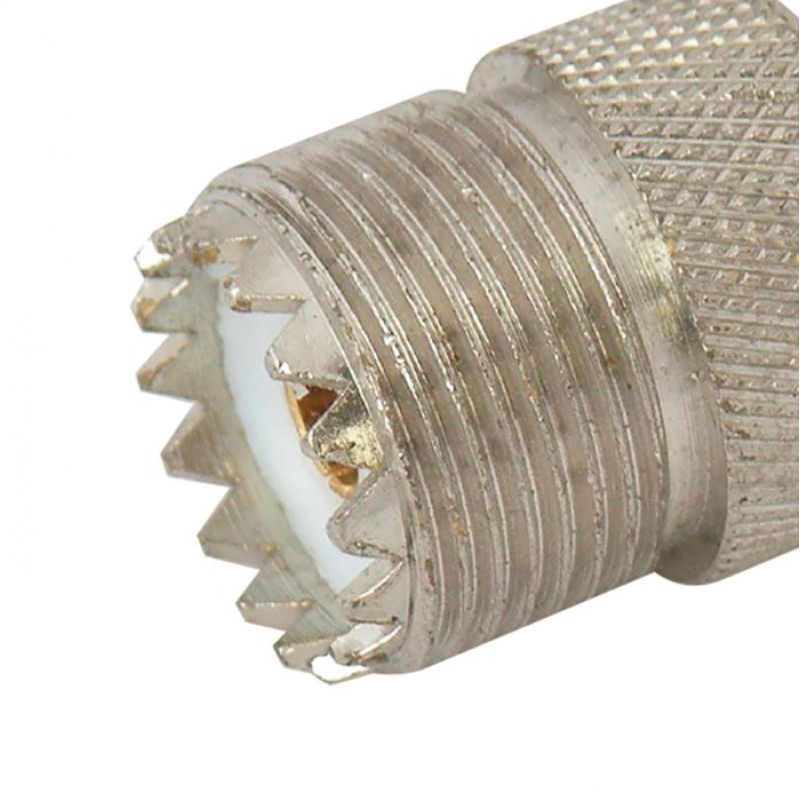

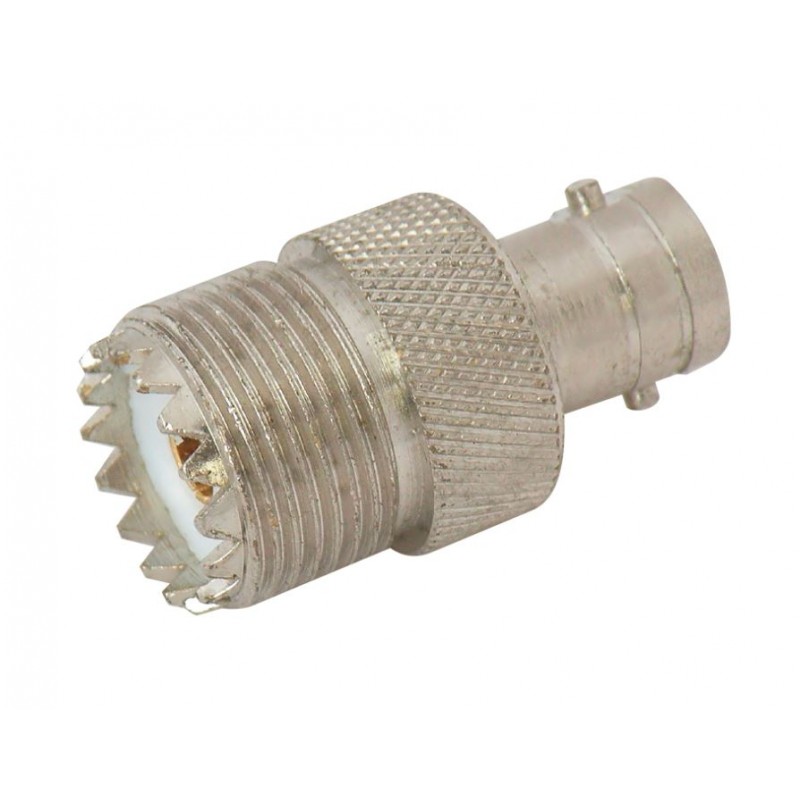

MX BNC Female Socket To MX UHF Female Connector with Teflon Pin Gold Plated (MX-292) - 10 Pieces Pack

MX BNC socket to MX UHF female connector with teflon and gold plated pin used for audio, video and networking applications that provides a firm connection. MX BNC is used to connect a variety of different coaxial cables. MX BNC connectors are different from many connectors because of their snap-lock superior architecture, which keeps the plug firmly in its socket.

Features and Specifications:-

• MX BNC socket to UHF female connector with Teflon and gold plated pin.
• MX UHF connectors crimp termination types provide a lower cost installation method.
• MX BNC connector is placed at the end of coaxial cables in order to link wiring to a piece of electronic equipment, most commonly an audio or visual device.
• After the plug is inserted, it is turned, causing pins in the socket to be pinched into a locking groove on the plug.
• MX BNC connector is used for RF signal connections, for analog and Serial Digital Interface video signals.
• MX BNC connector is an alternative to the MX RCA connector when used for composite video on commercial video devices.
• MX BNC connector has Snug-fit center pin assembly provides tactile feedback.
• MX BNC connector has excellent cable protection and retention.
• MX BNC connector has Precise machined brass parts for outstanding durability.

Applications:-

What are BNC CONNECTORS & their Applications.??

BNC Connectors are miniature, lightweight connectors. It features two bayonet lugs on the female connector. BNC connectors are ideally suited for cable termination for miniature to subminiature coaxial cables like RG-58, RG-59, RG-179, RG-316.

Applications:  RF signal connections, Video signals, Amateur Radio Antennas, Aviation Electronics, Medical equipment, LAN devices, Ethernet Network Cards, Broadcast equipment, Instrumentations and Test Equipment.

What are UHF & MINI UHF & their Applications.??

UHF stands for Ultra High Frequency. It is used UHF transmission is the physically short wave that is produced by the high frequency. It doesn't refract or bounce off the ionosphere. They are designed for use as coaxial connections where size, weight, and cost factors are critical. Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C,

It is mainly used for broadcasting, TV, Radio transmission, Audio Video, Telecommunication, Antennas, Cable Assembly, Low Frequency equipments, PA Systems and CB radios. Etc.

Mini-UHF connectors are miniaturized versions of UHF connectors, designed primarily for use in mobile phones.

APPLICATIONS:

•Antennas

•Automotive

• Cable Assembly

• Cable Modems

• Cellular

• Components

• PC/LAN

• Telecom

10 x MX BNC Female Socket To MX UHF Female Connector with Teflon Pin Gold Plated (MX-292)
