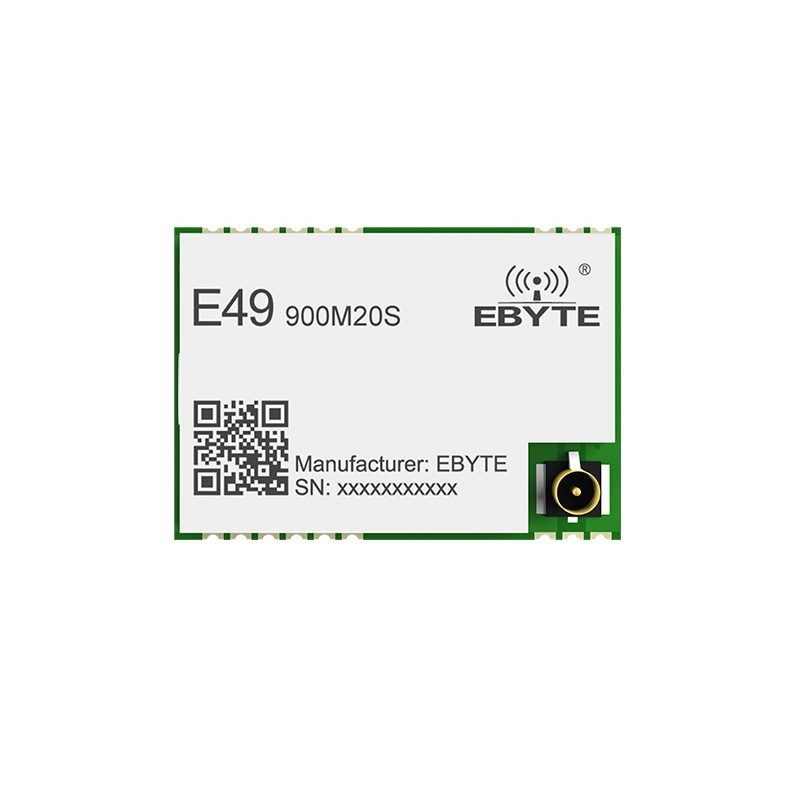

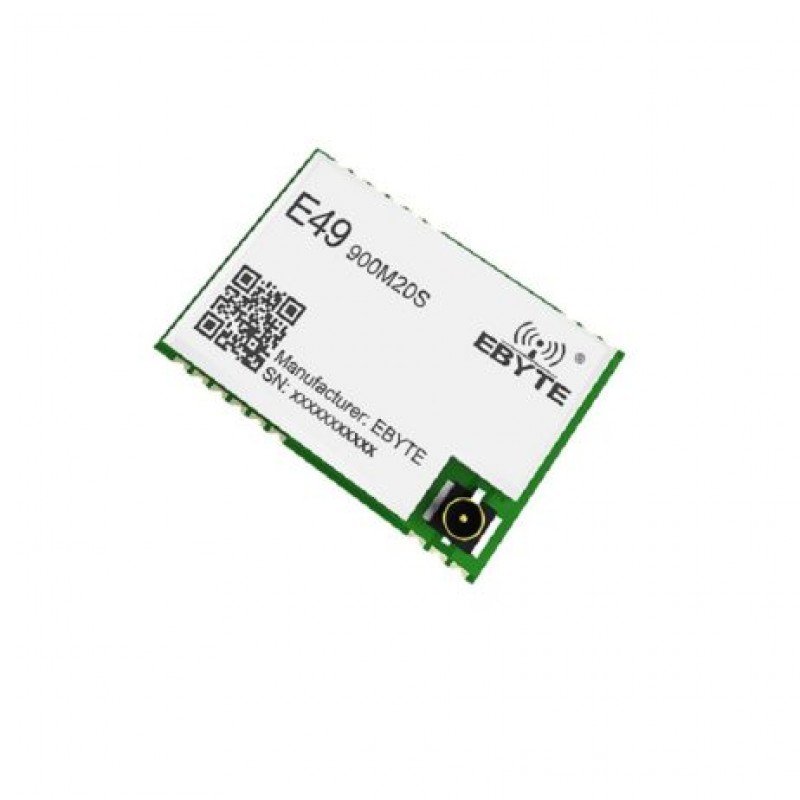

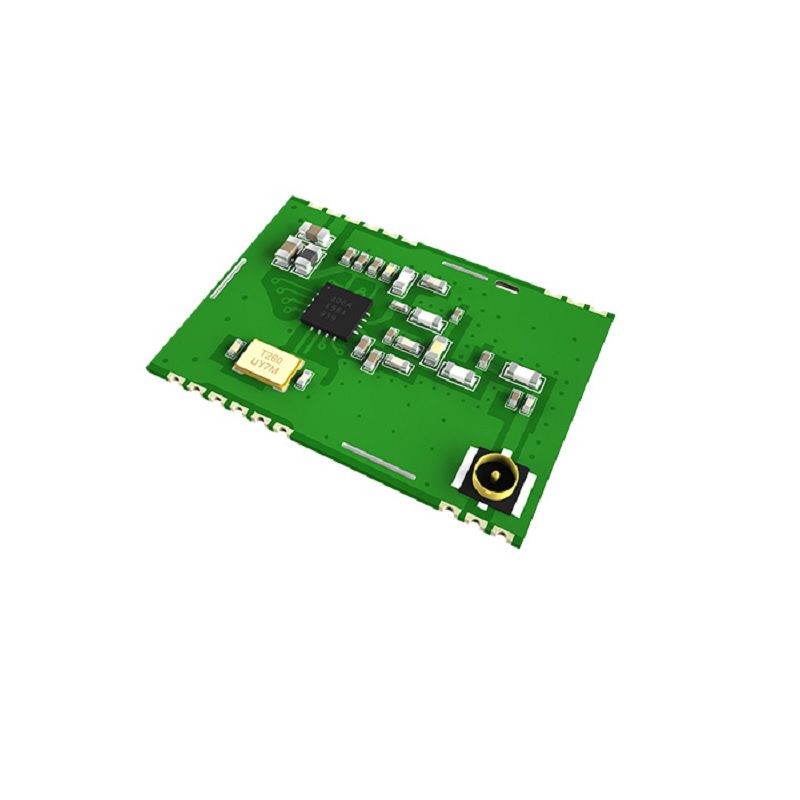

EBYTE E49-900M20S Ebyte Wireless Module 850~930MHz 20dBm 3km Iot Wireless Data Transmission Module

EBYTE E49-900M20S Iot Wireless Data Transmission Module is a cost-effective wireless data transmission module launched by Chengdu Ebyte. It is A pure hardware module based on CMT2300A.E49-900M20S Supports the maximum transmission power of 20dBm, users can set a lower output power, thus saving power consumption.

The EBYTE E49-900M20S Iot Wireless Data Transmission Module works in the 850MHz ~ 930MHz frequency band, including the commonly used 868MHz and 915MHz frequency band. Since this module is a pure RF transceiver module, using SPI interface, needs MCU driver.

Features:

1. Wireless Data Transmission: Designed for reliable wireless data transfer.
2. Cost-Effective: Offers a budget-friendly solution for wireless communication.
3. Pure Hardware Module: Based on the CMT2300A chip, ensuring stable and predictable performance.
4. RF Transceiver: Operates as a radio frequency transmitter and receiver.
5. SPI Interface: Uses the Serial Peripheral Interface (SPI) for communication with a microcontroller (MCU).
6. MCU Driver Required: Needs an external microcontroller to manage and control its operation.
   Frequency & Power:
7. Frequency Band: Operates within the 850MHz to 930MHz frequency range.
8. Common Frequency Support: Includes widely used frequencies like 868MHz and 915MHz.
9. Maximum Transmission Power: 20dBm.
10. Adjustable Output Power: Allows users to reduce transmission power for lower power consumption.

Package Includes:

1 x EBYTE E49-900M20S Iot Wireless Data Transmission Module
