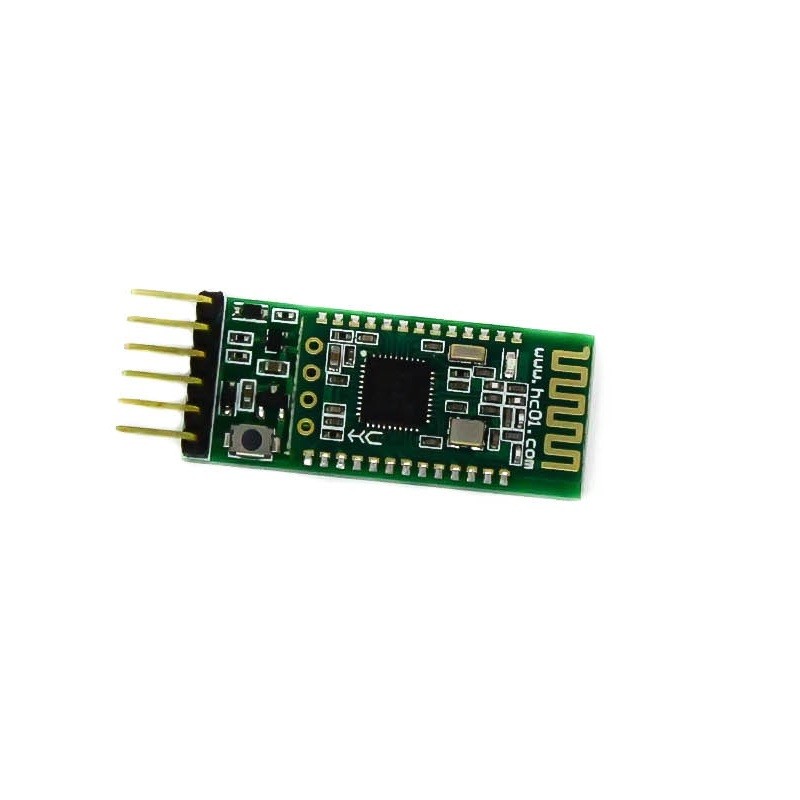

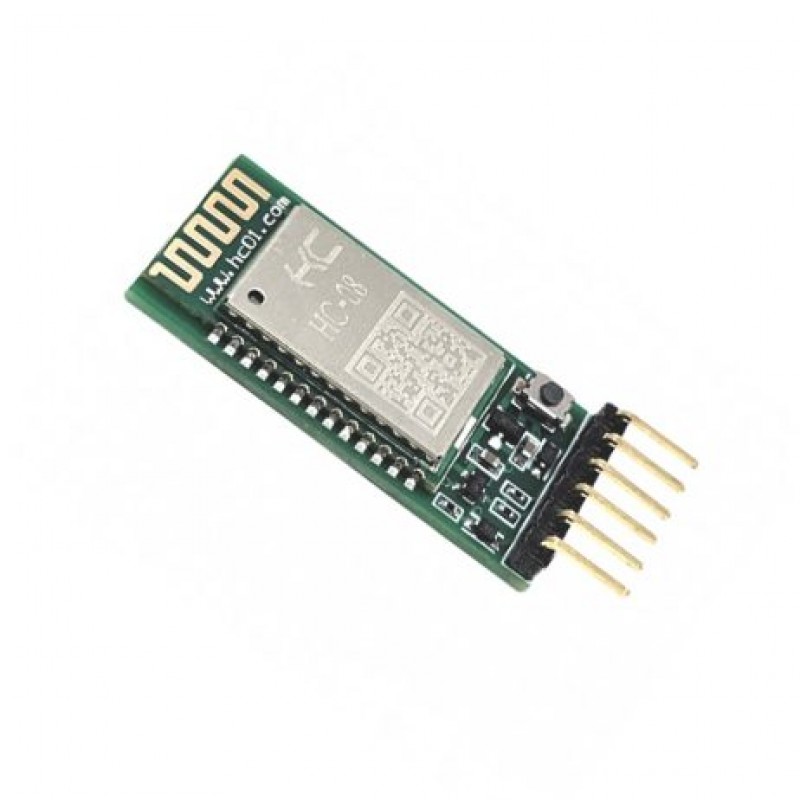

HC-08 Bluetooth 4.0BLE Serial Port Module

The HC-08 Bluetooth 4.0BLE Serial Port Module uses BLE (Bluetooth Low Energy) protocol. The main difference between Bluetooth and BLE is power consumption. Bluetooth consumes more power than BLE but can handle a lot of data. BLE is more appropriate for quickly transferring small amounts of data between nearby devices. BLE is less power-hungry, so the devices running this protocol can operate for years with a small battery; perfect for IoT!

HC-08 is a Bluetooth 4.0 low energy module, it can easilyconnect toiOS 5 and Android 4.3 or above by using a serial terminal app. You can use the Bluetooth communication up to 87 yards (80 meters) with this Bluetooth BLE module. It also runs on a 2.4GHz frequency. The chipset is CC2540 with 256K Byte space. You can change the role and serial baud rate and it supports AT commands for configuration.

HC-08 is a relatively new module made byan experiencedBluetooth design and manufacturing supplier in China. Its mass produced and therefore well-tested. It can be incorporated into products or projects without worrying about being able to get it again. Its already widely used inmany Bluetoothprojects.

Note: The product dimensions may have2% error. Color also may vary due to light effect.

How to use?

Click Here.

Specifications:

1. Frequency: 2.4GHz ISM.
2. Protocol: BLE 4.0.
3. Max transmitting power: max. 4dBm.
4. Modulation System: GFSK.
5. Serial Baud Rate: 1200 to 115200 bps.
6. Reference Distance: 80 meters.
7. Speed: 1Mbps (Max).
8. Power supply: 2.0 3.6 V.
9. Sleep Mode Current: 0.4uA (MODE 2).

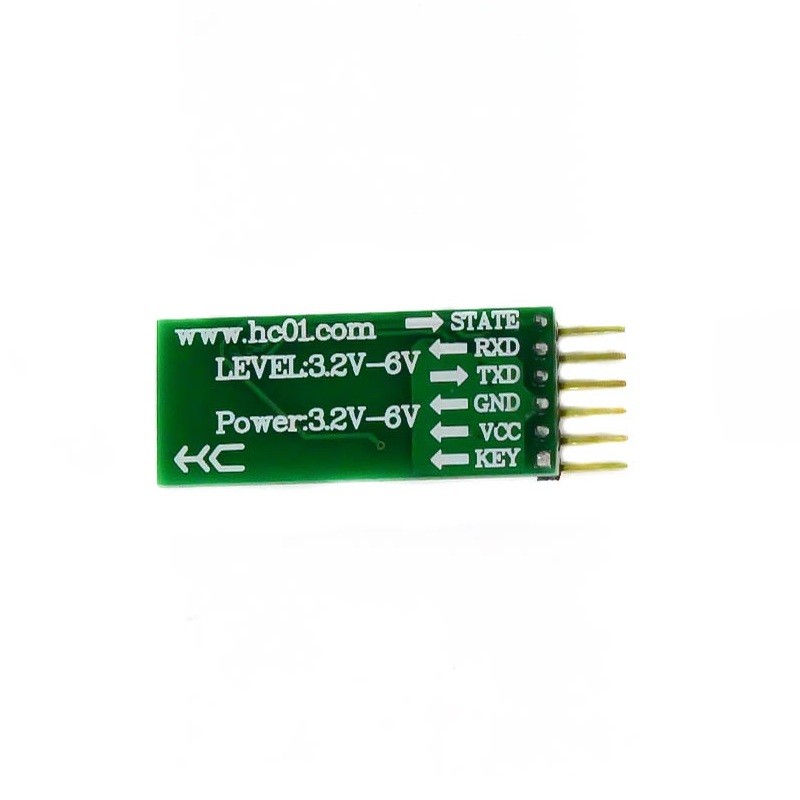

10. Communication Port: UART 3.3V TTL.
11. Working temperature: -20 ~ +75C.

Package Includes :

1 xHC-08 Bluetooth 4.0BLE Serial Port Module.
