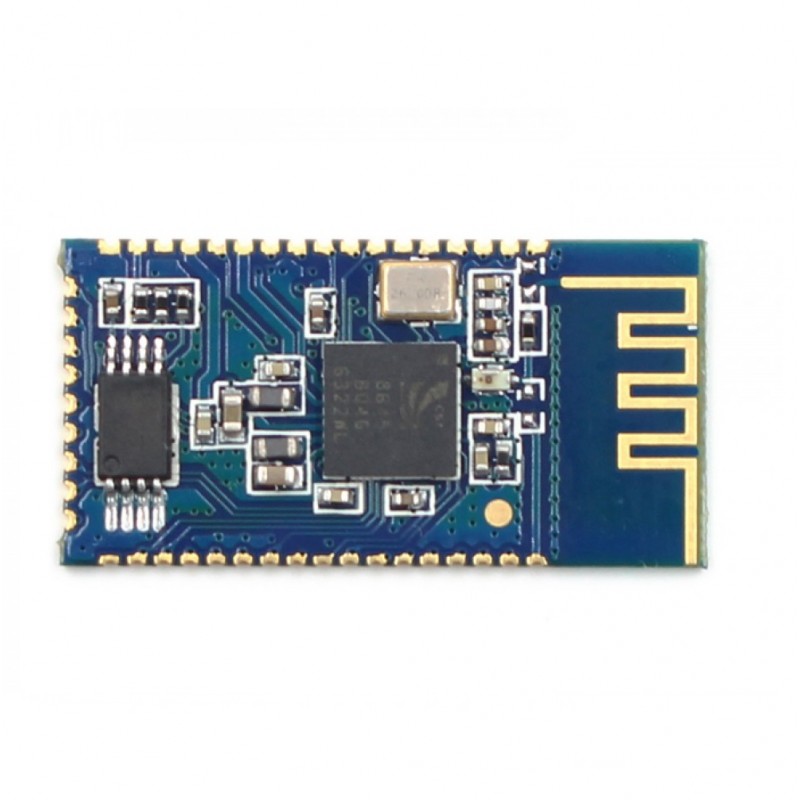

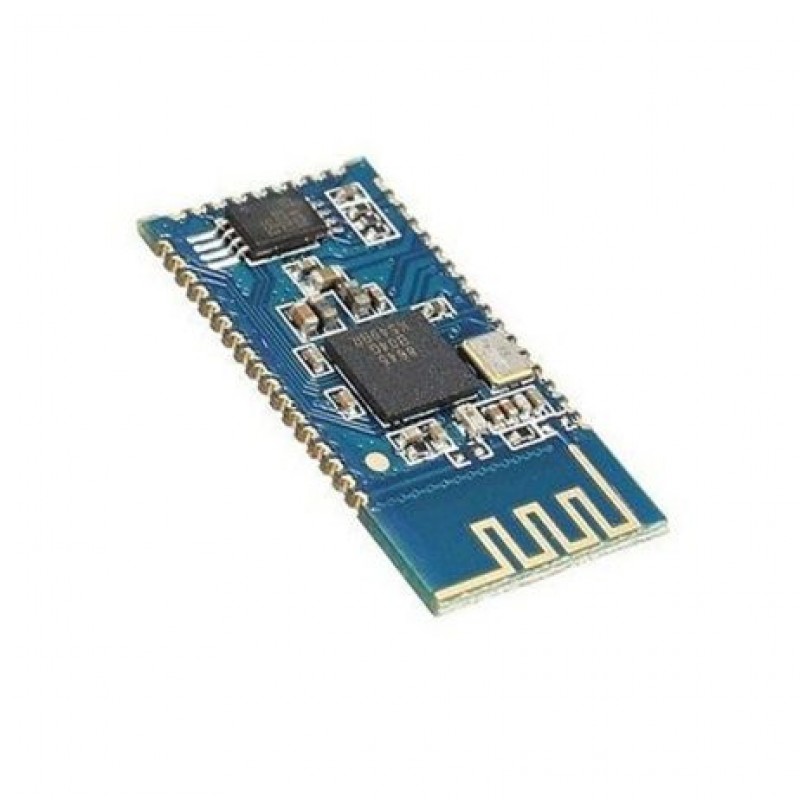

CSR8645 Low Power Bluetooth V4.0 Audio Amplifier Support aptX

This Bluetooth Audio Module based on the CSR8645, with latest Bluetooth V4.0. It is an Intelligent wireless audio data transmission product, low price, and high-efficiency stereo audio wireless transmission. With this module, you will easy to make your music wireless transmission, mainly used for short-distance transmission of music, you can easily connect Bluetooth laptop, cell phone, PDA and other digital products connected devices for wireless transmission of music.

1. POWER-EN: the switch control module when the switch, the toggle switch, when the POWER-EN is connected toBAT, module startup; When POWER-EN disconnect BAT, module shutdown, usually used when battery power. Adopting the module electrically powered, only the 10K POWER-EN series resistor connected to BAT,can realize the module electrically powered, usually used in the external power supply.
2. PLAY: Play/Pause (short press), with the hang-up (by a long, time slightly longer), repairing (long press).
3. VOL+: Volume plus.
4. VOL-: the volume Minus.
5. PREV: To the Previous Track.
6. NEXT: To the Next Track.

Features:

Bluetooth Profiles:

1. Bluetooth v4.0 specification support.
2. HFP v1.6 wideband speech (HD voice ready).
3. HSP v1.2.
4. A2DP v1.2.
5. AVRCP v1.4.
6. Support for smartphone applications (apps).

Improved Audio Quality:

1. 2-mic far-end audio enhancements.
2. Near-end audio enhancements (noise suppression and AEQ).
3. Wind noise reduction.
4. Packet loss concealment.
5. Bit error concealment.
6. Automatic gain control and automatic volume control.
7. Frequency expansion for improved speech intelligibility.
8. mSBC codec support for wideband speech.

Music Enhancements:

1. Configurable 5-band EQ for music playback (rock, pop, classical, jazz, dance etc).
2. APTX, SBC, MP3, AAC, and Faststream decoder.
3. Stereo widening (S3D).
4. Volume Boost Additional Functionality Additional Functionality.
5. Support for voice recognition.
6. Support for multi-language programmable audio prompts.
7. CSRs proximity pairing and CSRs proximity connection.
8. Multipoint support for HFP connection to 2 handsets for voice.
9. Multipoint support for A2DP connection to 2 A2DP sources for music playback.
10. Talk-time extension.

Package Includes:

1 xCSR8645 4.0 Low Power Bluetooth Audio Amplifier Module.
