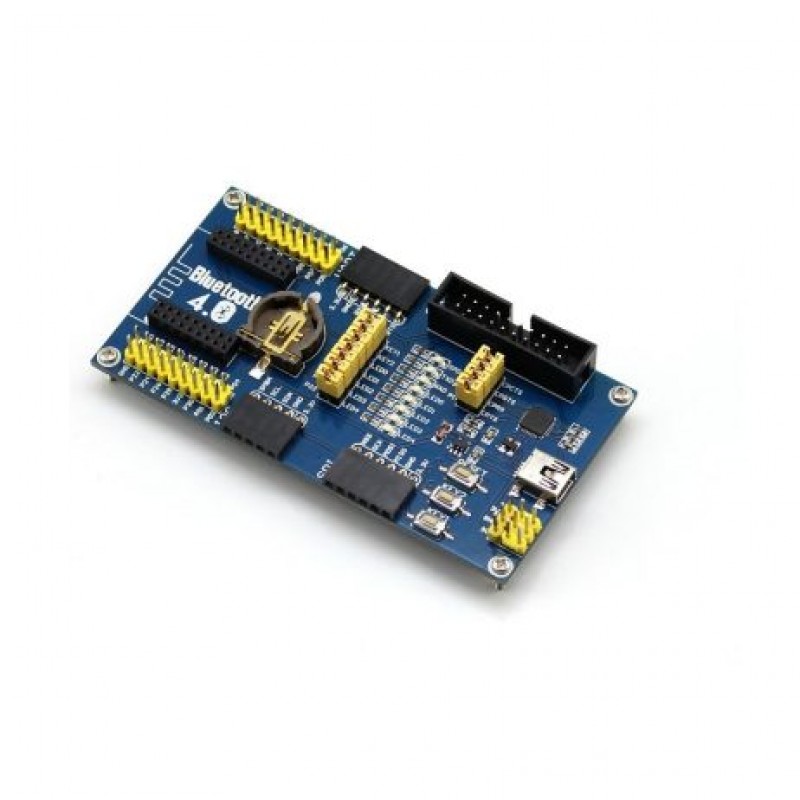

Bluetooth 4.0 Eval Board

Bluetooth 4.0 Eval Boardis a development/evaluation kit designed for nRF51822, consists of the motherboard BLE400.

Whats on the BLE400:

1. MCU pins expansion connector
2. I2C interface
3. SPI interface
4. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board.
5. Debugging interface
6. UART interface
7. Battery holder
8. User LEDs
9. User keys
10. Reset button
11. USB TO UARTjumper
12. LEDs & Keys jumper

Applications:

1. Wearable devices
2. Bluetooth intelligent application
3. Mobile phone accessories
4. RFID labels
5. Smart home appliances
6. Industry control
7. Data acquisition system

Features:

1. 2.4 GHz multiprotocol RF transceiver
2. ARM Cortex-M0 32 bit processor
3. 128 bit AES HW encryption
4. 256kB flash & 32kB RAM
5. Programmable Peripheral Interconnect (PPI)
6. 10 bit ADC
7. Programmable output power: -20 to +4 dBm
8. Independent application development and protocol stack
9. Global separate power management

Package Includes:

1 x Bluetooth 4.0 Eval Board
