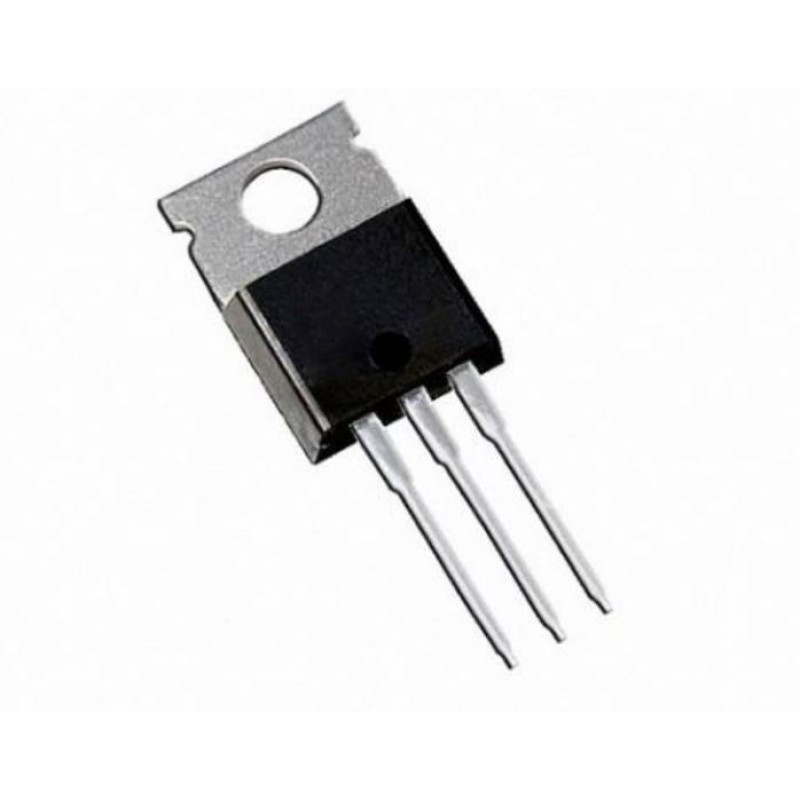

MJE2955T PNP Power Transistor 60V 10A TO-220 Package
- Product Code: EPI12968
- Availability: 2380
-
Rs.16.00
- (Excluding 18% GST)
OR
MJE2955T is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• High DC current gain
• Low collector−emitter saturation voltage
• High current−gain − bandwidth product
• Annular construction for low leakage
• These devices are Pb−Free and are RoHS compliant
Detailed Specifications:-
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 60VDC |
| Collector−Base Voltage (VCBO) | 70VDC |
| Emitter−Base Voltage (VEBO) | 5VDC |
| Continuous Collector Current (Ic) | 10ADC |
| Continuous Base Current (Ib) | 6ADC |
| Power Dissipation (Pd) | 75W |
| Operating Temperature Range | -55 - 150°C |
| DC Current Gain (hFE) | 20-70 |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 28.32 (Inclusive of all Taxes) |
