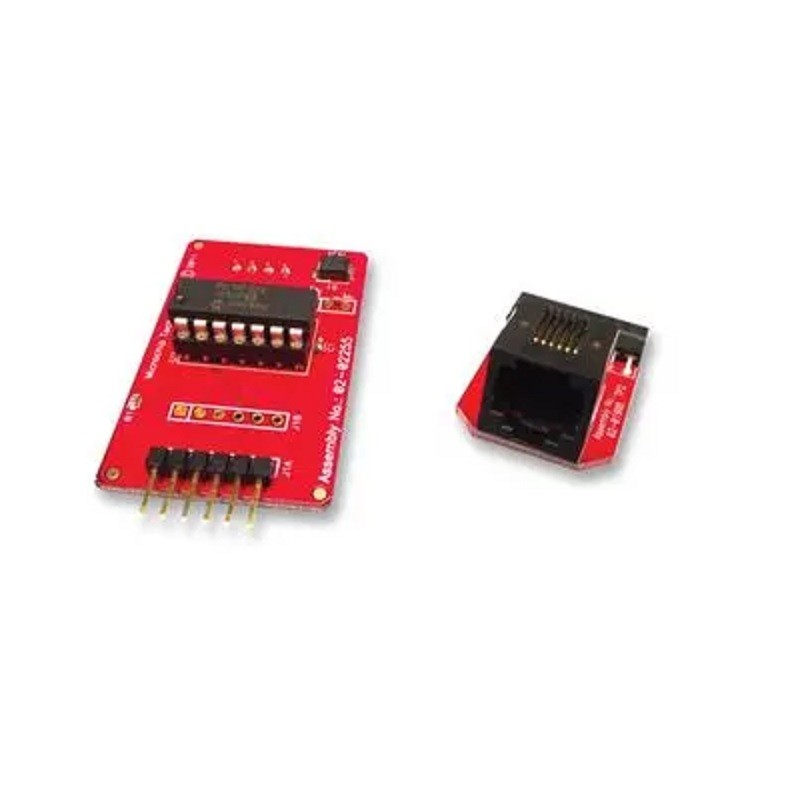

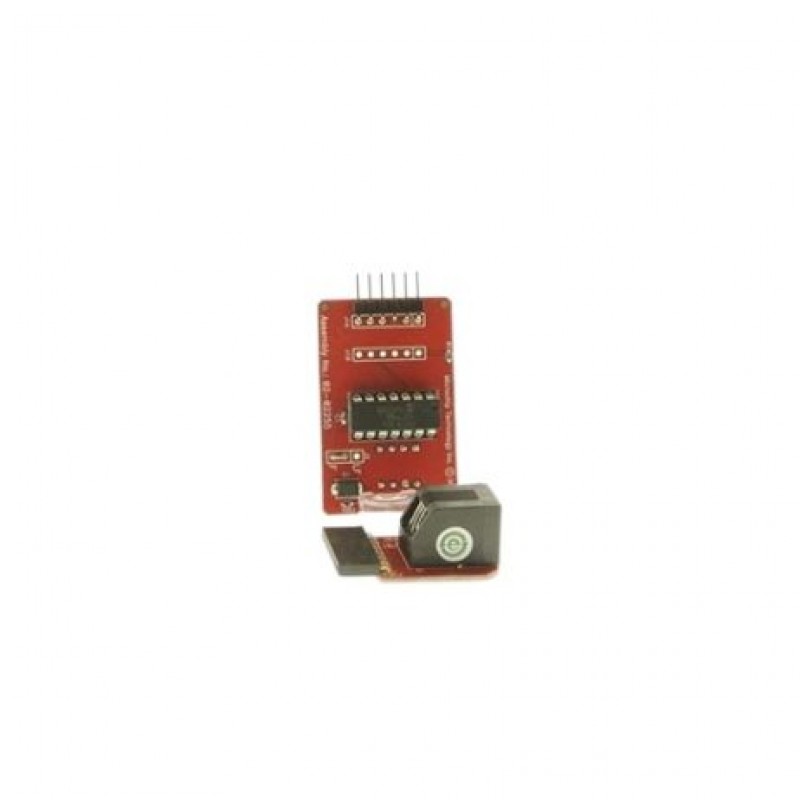

MICROCHIP AC244045 Debug Header, PIC10F322-ICE Processor Extension Pack

The Microchip AC244045 Debug Header, PIC10F322-ICE Processor Extension Pack is a specialized MICROCHIP extension pack designed for debugging and development with the PIC10F322 microcontroller from Microchip. This extension pack provides a debugging header that can be used with PIC10F series microcontrollers for in-circuit debugging and programming.

The AC244045 is a PIC10F322-ICE processor extension pack, This Processor Extension Pack is designed for those who wish to debug with the PIC10(L)F320/322 family of microcontrollers in circuit. The processor extension pack provides debug capabilities while freeing up I/O pins.

Features:

1. MICROCHIP extension pack: for debugging and development with the PIC10F322 microcontroller from Microchip
2. Processor Support: Designed for PIC10F322 microcontroller.
3. Debug Interface: Enables in-circuit debugging and programming.
4. Compatibility: Works with MPLAB ICD 4 and MPLAB REAL ICE debuggers.
5. Convenient Debugging: Provides easy access to debug signals and control lines.
6. Extension Pack: Adds additional functionality for PIC10F322 processor development.
7. Durable Design: Built to withstand regular use in development environments.
8. Pin Headers: Includes pin headers for easy connection to the target system.

Applications:

1. Microcontroller Development: Debugging and programming SAM and AVR MCUs.
2. Embedded System Design: Ideal for prototyping and testing embedded applications.
3. Interface Debugging: Supports various communication protocols like JTAG, SWD, SPI, and more.
4. Educational Use: Teaching and learning microcontroller programming and debugging.
5. Industrial Automation: Developing and troubleshooting control systems.
6. IoT Development: Building and debugging IoT applications.

Package Includes:

1 x ATATMEL-ICE-BASIC Debugger module.
1 x USB cable
1 x Connectors: ARM Cortex Debug (10-pin) and AVR JTAG connector.
1 x Quick start guide
