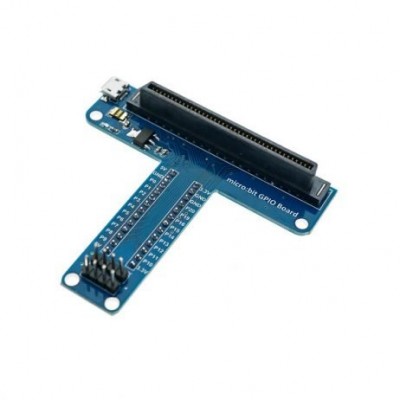

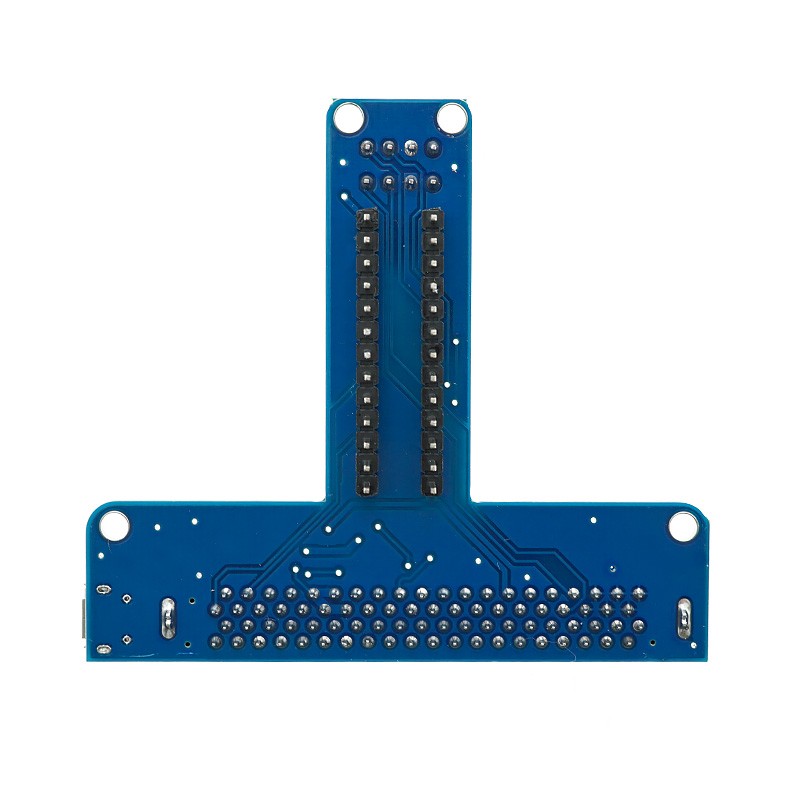

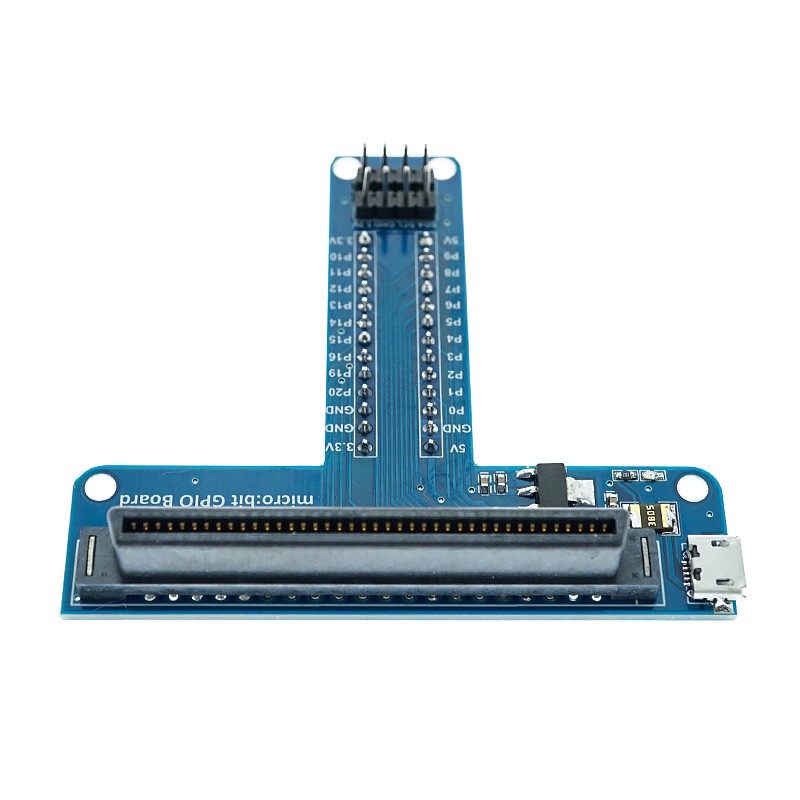

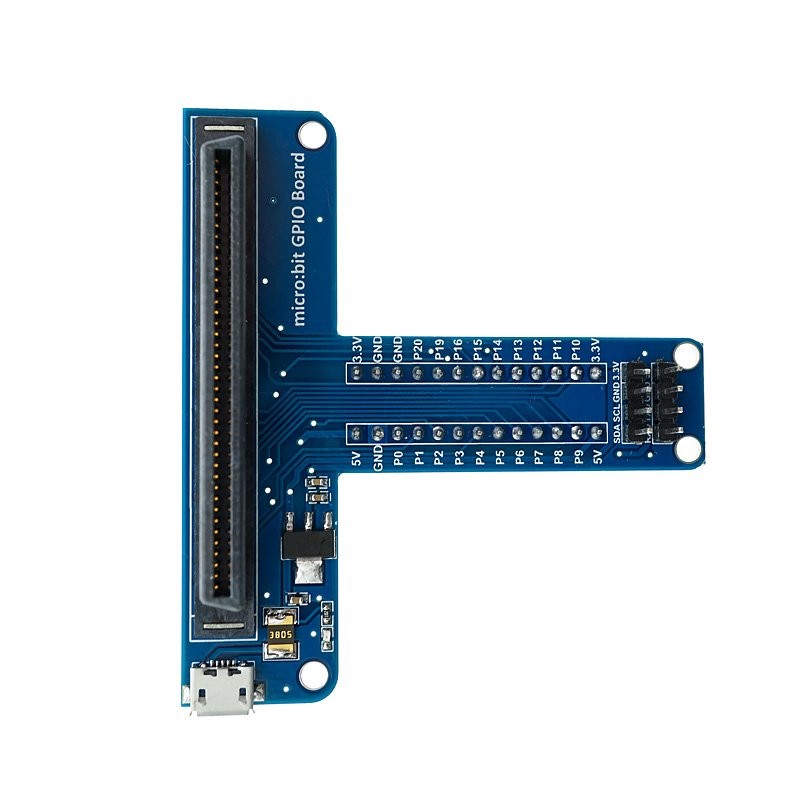

Micro:bit T-type GPIO Board
- Product Code: EPI12853
- Availability: Out Of Stock
-
Rs.225.00
- (Excluding 18% GST)
OR
The micro: bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro: bit breakout we have broken out all 21 GPIO, power, and ground-to-pin outs in a 0.1 formation. With this breakout, you will be able to unlock the full potential of your micro: bit!
Features:
- Extend the functionality of the micro: bit beyond what is already on the board through breakout or General Purpose Input Output (GPIO) expansion board.
- A T-shaped expansion board gives you numerous options with the additional port for USB.
- 5v power supply port available.
- All pins are clearly labeled for expansion. Compatible with 420 points and 840 point breadboard.
Package Includes:
1 x Micro: bit T-type GPIO Board
Specifications:
| Expansion Board Type | T-type GPIO Board |
| GPIO Pins | 21 GPIO Pins |
| Connection Type | 0.1-inch space headers |
| Mounting Holes Diameter (mm) | M3 |
| Length (mm) | 70 |
| Width (mm) | 15 |
| Height (mm) | 65 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 501.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
