M5Stack FIRE IoT Development Kit (PSRAM) V2.7

M5Stack FIRE V2.7 adopts the Espressif ESP32 main control chip, equipped with two low-power Xtensa 32-bit LX6 microprocessors, with a high frequency of 240MHz. It features an onboard 8M PSRAM + 16M FLASH memory combination and integrates a range of peripherals, including a 2.0-inch full-color high-definition IPS display panel, a 6-axis IMU, LED, microphone, speaker, and TFCard slot. With its powerful processing capability and stability, it is suitable for various product prototyping, industrial control, and intelligent building applications.

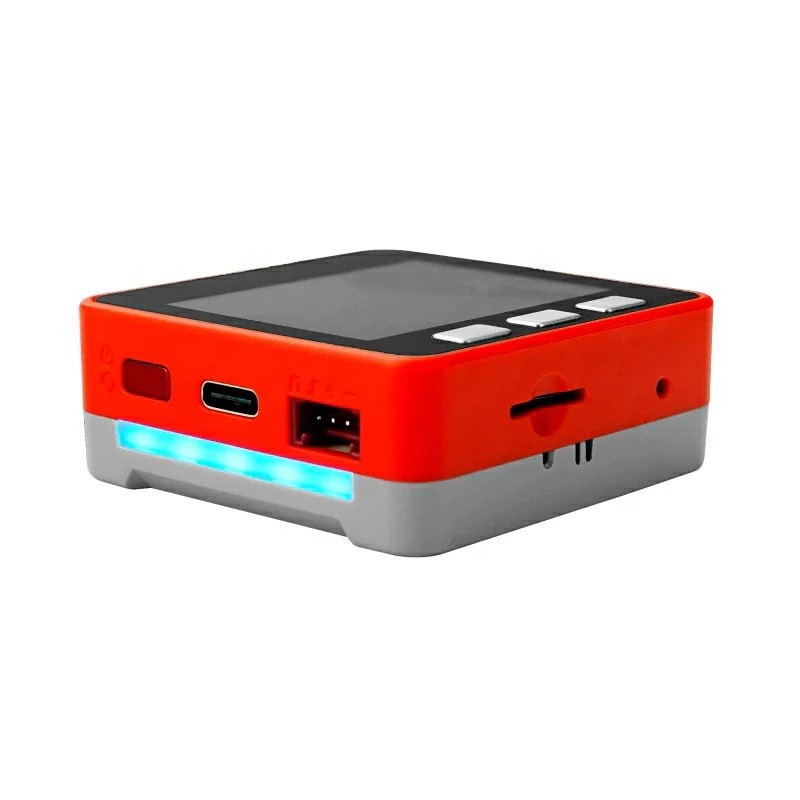

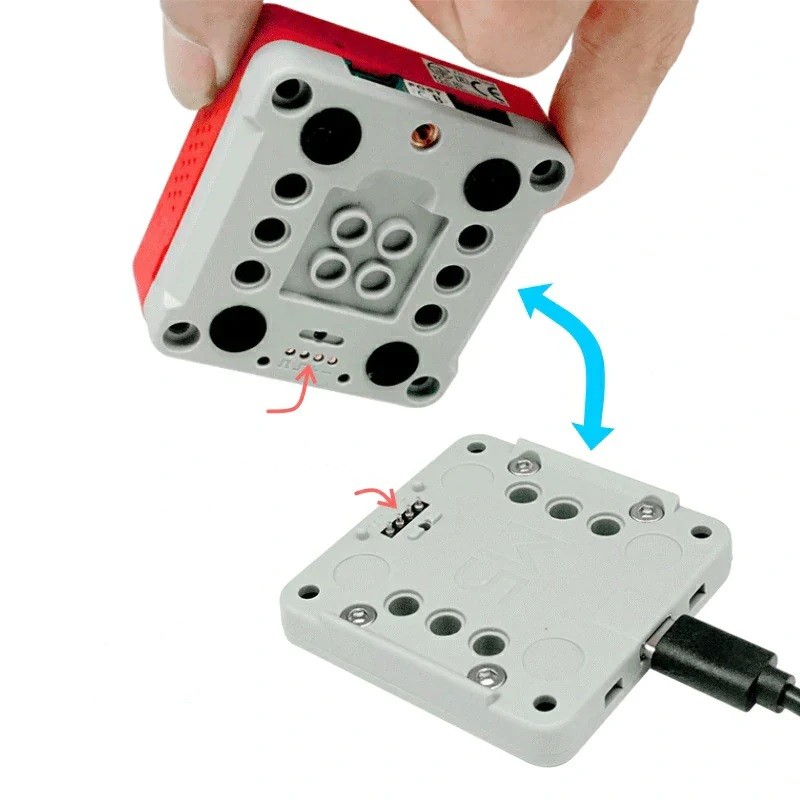

To ensure stable circuit operation, FIRE V2.7 employs a full-cover enclosure design, providing reliable circuit protection even in complex industrial application scenarios. FIRE V2.7 integrates abundant interface resources such as ADC, DAC, I2C, UART, and SPI interfaces, offering convenient avenues for user expansion needs. It is powered by a built-in lithium battery and also integrates a power management chip, supporting dual power supply options of Type-C interface and POGO pin interface. The base is equipped with a magnetic device and LEGO interface, allowing for flexible deployment and connection, enabling multiple usage scenarios.

Compared to the V2.6 version, M5Stack FIRE V2.7 has undergone an upgrade in terms of the screen, featuring a glass screen for a clearer display. Additionally, the glass screen has scratch-resistant characteristics, providing better screen protection and prolonging its lifespan.

Applications:

1. IoT Controller
2. DIY creator works
3. Smart Home Control

Features:

1. Based on ESP32 development
2. 8M PSRAM + 16M FLASH memory combination
3. The device is equipped with a 2.4 GHz antenna

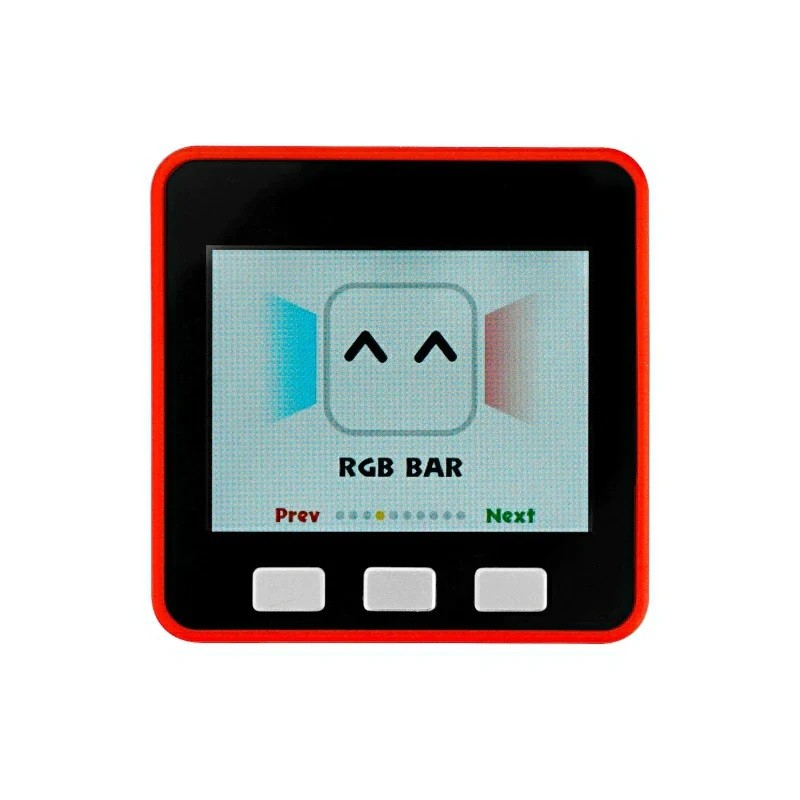

4. Integrated HD IPS display panel with various hardware peripherals
5. Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.
6. Adopt the M5GO BOTTOM basecompatible with 8mm size LEGO blocks, the structure is full of fun to build.
7. Microsoft Azure authentication device
8. Compatible with multi-platform development:
   • UIFlow
   • MicroPython
   • Arduino
   • .NET nano framework

Package Includes:

1x M5Stack FIRE

1x M5GO Charging Base

2x LEGO Building Blocks

5x LEGO Connections

1x M3 Hex Wrench

1x Type-C USB (50cm)

1x Users Manual
