M5STACK ESP32 PSRAM Timer Camera (OV3660)

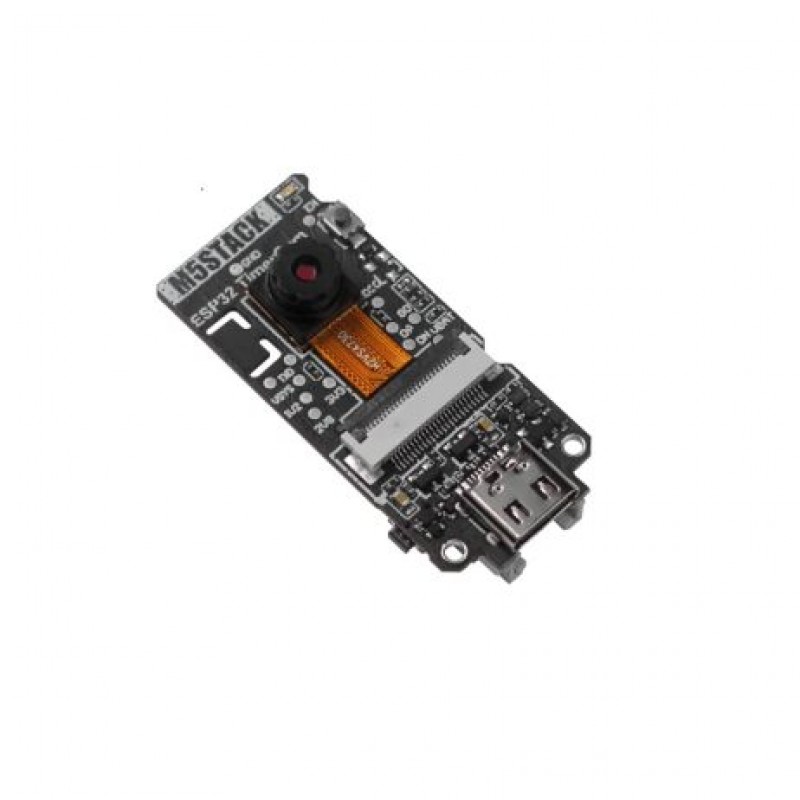

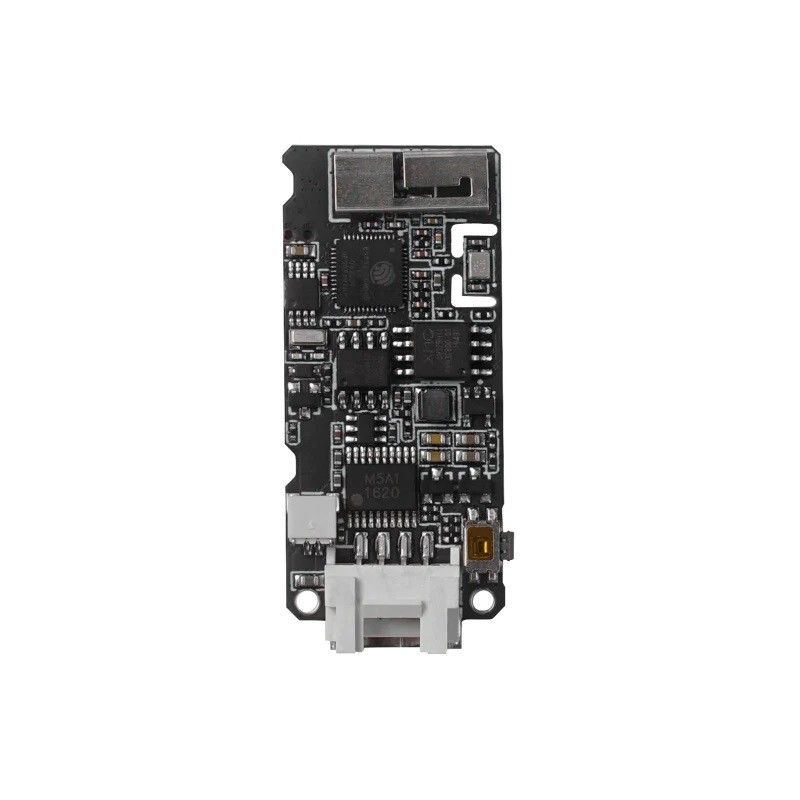

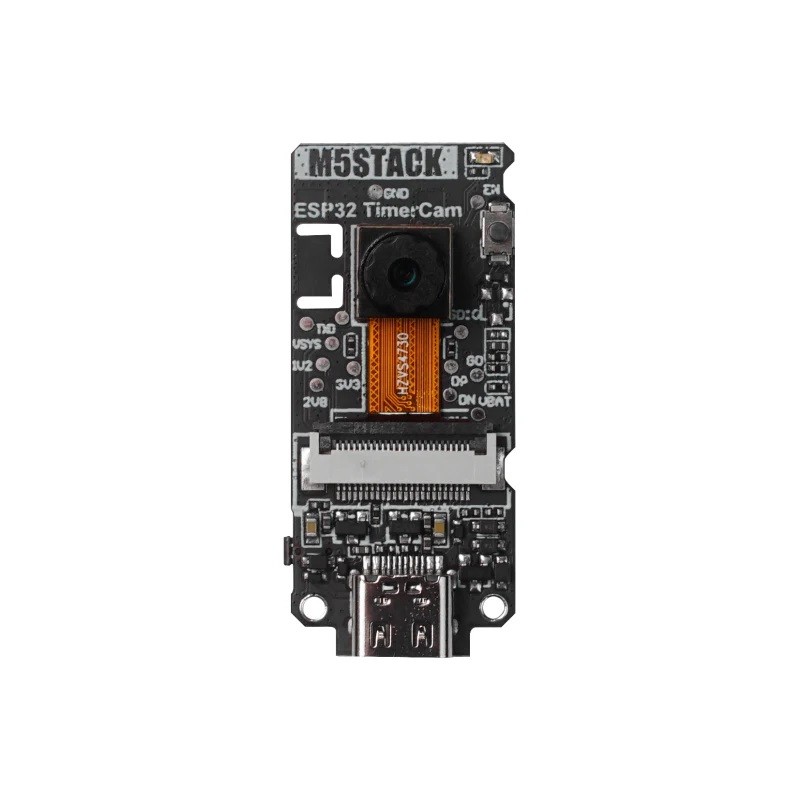

Timer Camera is a camera module based on the ESP32 with 8MB integrated with PSRAM. The 3 million (3MP) pixel camera (ov3660) ,DFOV 66.5 and can shoot a maximum of 20481536 resolution photos. There is a LED status indicator and reset button on the board. The timer Camera is designed to have ultra-low power consumption. Using the RTC (BM8563), timing, sleep, and wake-up functions can be utilized.

Useful link:

Arduino IDE environment setup-TimerCAM/UnitCAM

Features:

1. Design based on ESP32
2. Wi-Fi image/video transmission
3. Timed sleep wake up
4. Status indicator
5. Ultra-low power design
6. Programming platform:ESP-IDF/Arduino/UIFlow

Package Includes:

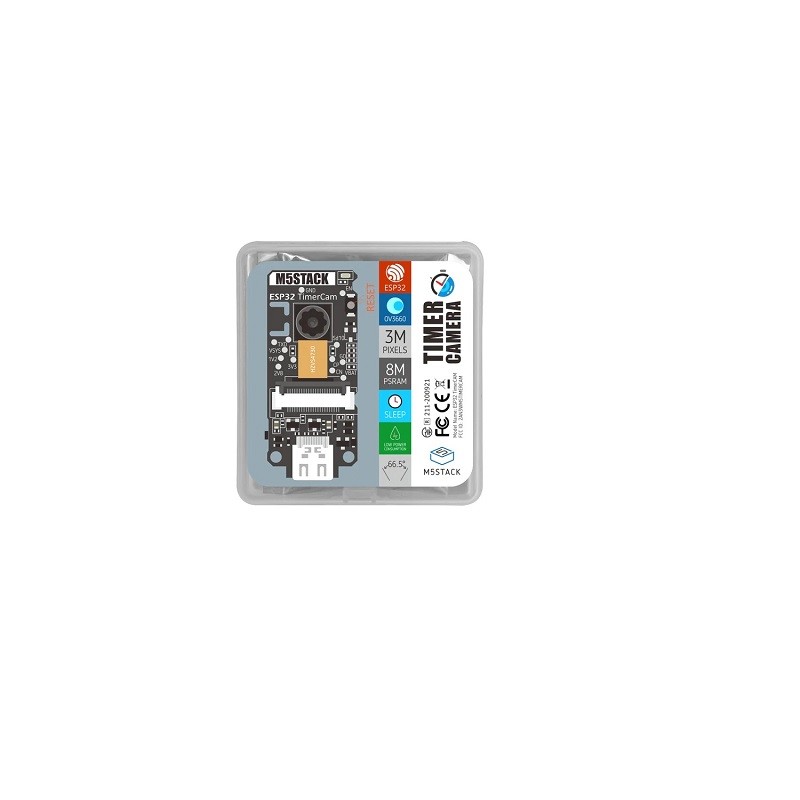

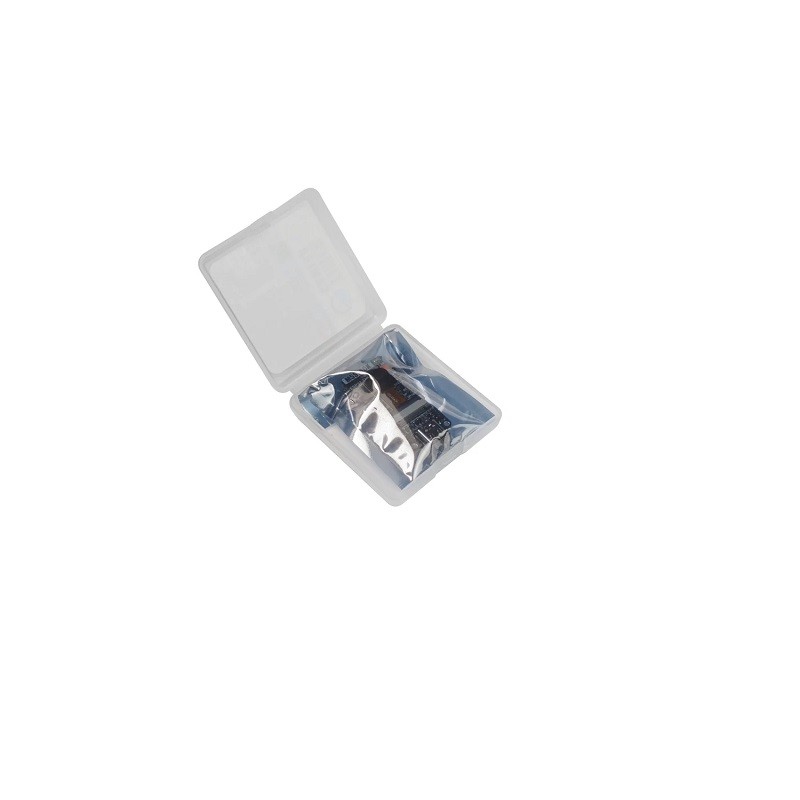

1 x M5STACK ESP32 PSRAM Timer Camera (OV3660)
