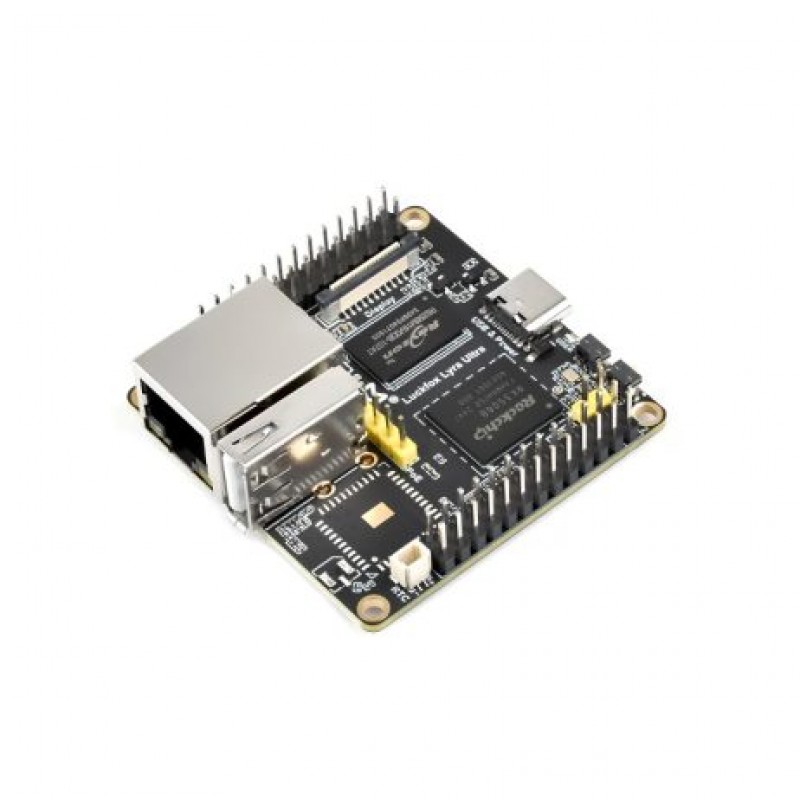

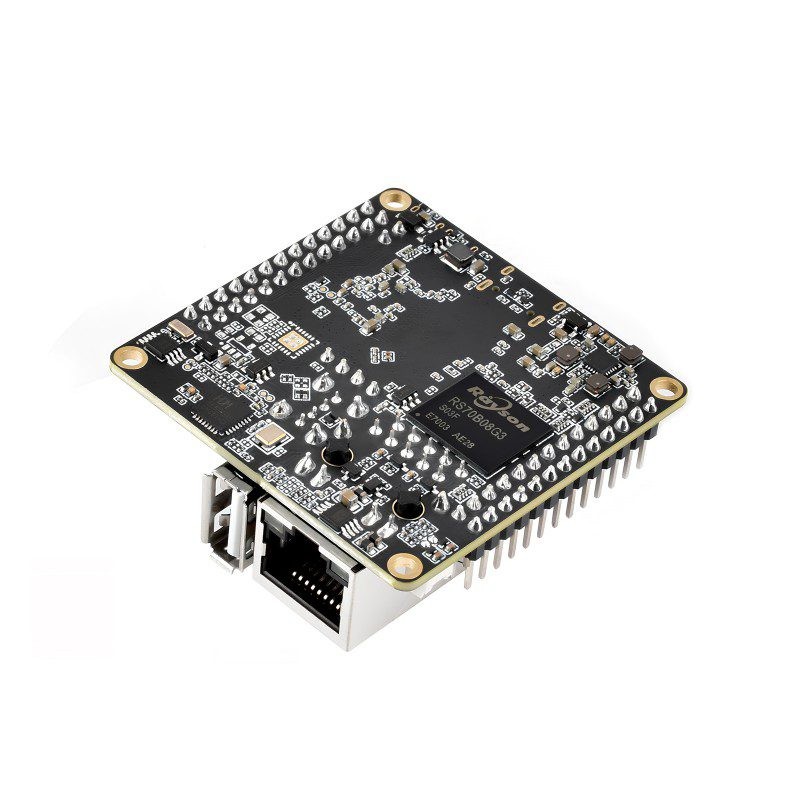

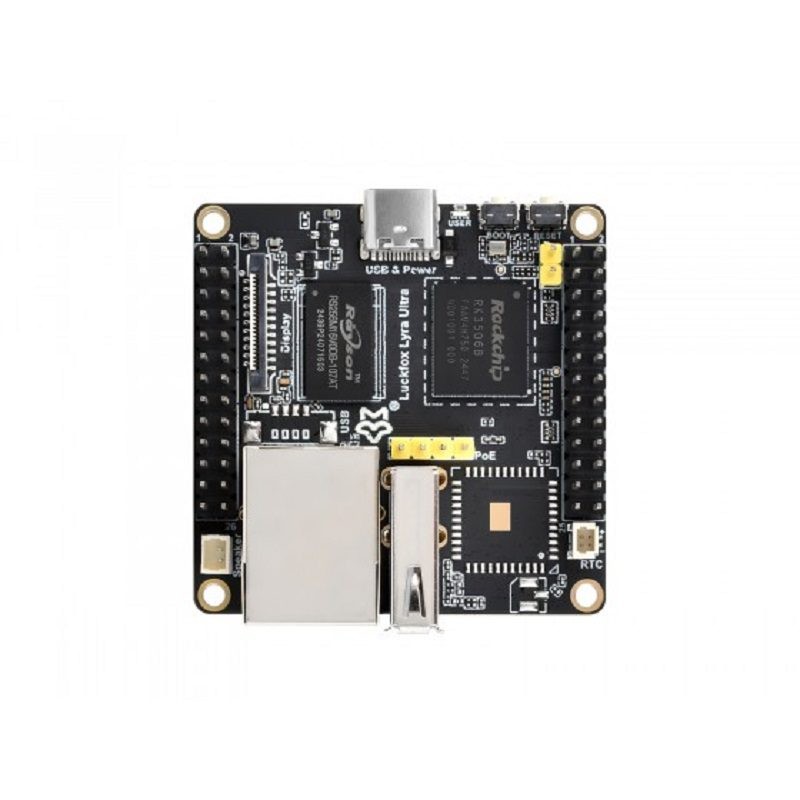

Luckfox Lyra Ultra RK3506B Linux Micro Development Board with 8GB eMMC without Wireless, POE Module and LCD Kit

The Luckfox Lyra Ultra is a compact Linux-based micro development board built around the Rock chip RK3506B processor, offering a streamlined and efficient platform for developers. It features a range of high-speed interfaces, including MIPI DSI, RMII, DDR, and USB, making it suitable for diverse application scenarios.

Additionally, its low-speed interfaces leverage the Rock chip Matrix 10 design, enabling the multiplexing of up to 98 functional signals on GPIO pins. This flexibility supports various configurations such as PWM, UART, I2C, SPI, and IS, making it ideal for rapid development and debugging tasks.

Features:

1. Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
2. Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
3. Supports DDR2 / DDR3 / DDR3L memory interface expansion, meeting various expansion needs
4. The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
5. Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
6. Integrates DSI interface, USB-A port, Ethernet port, and speaker header, etc.
7. Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission
8. Reserved PoE Module Header: More Flexible for Power Supply
9. MIPI DSI 2-lane interface: Compact size, powerful performance, easy to drive large screens
10. Rockchip Matrix IO design: The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Package Includes:

1 x Luckfox Lyra Ultra RK3506B Linux Micro Development Board with 8GB eMMC without Wireless, POE Module and LCD Kit
1 x USB Type-A to Type-C cable ~1m
