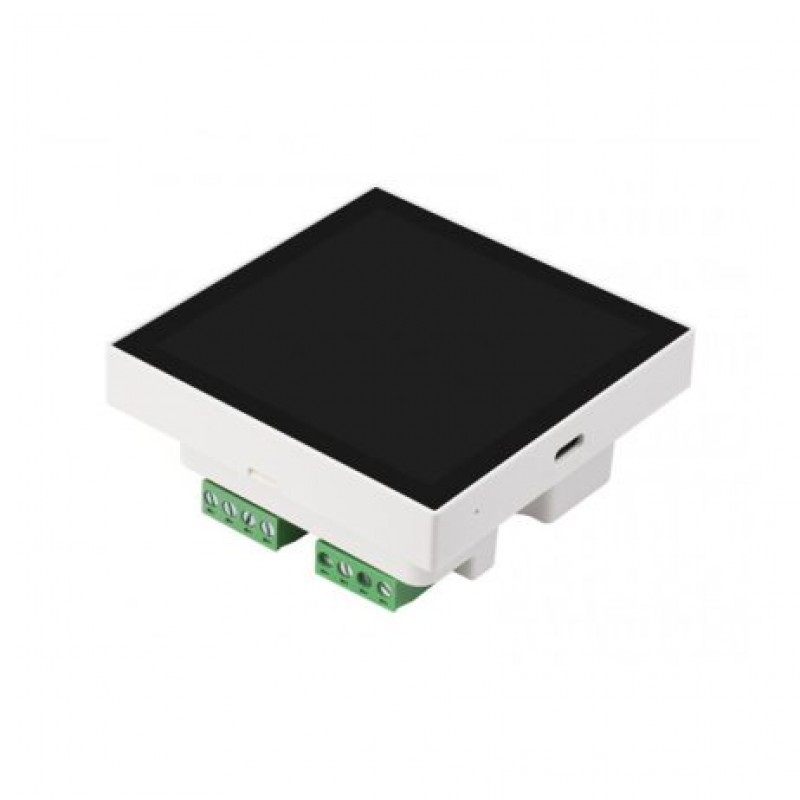

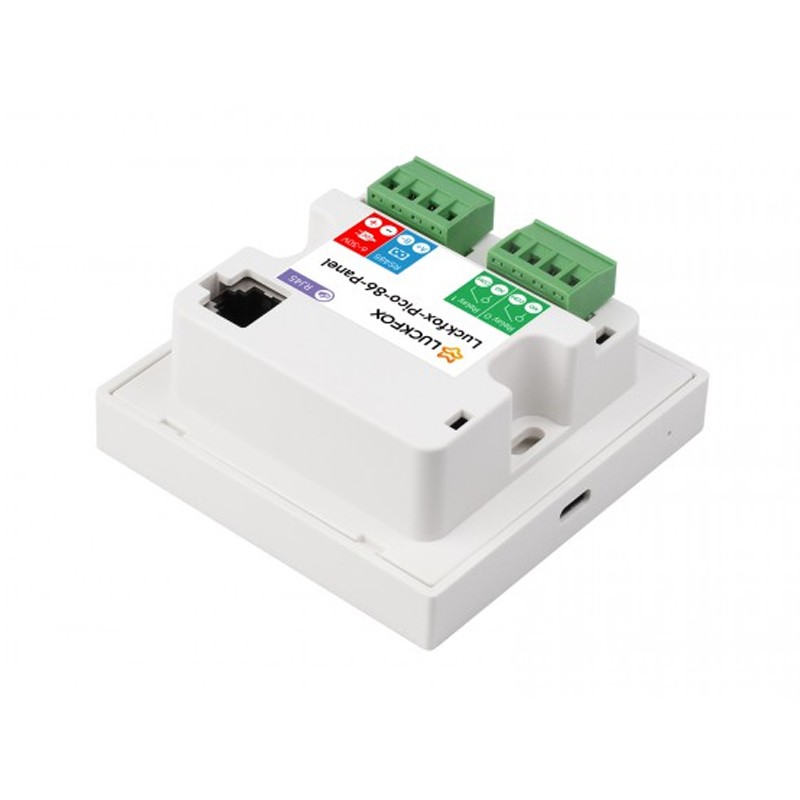

Luckfox Core1106 RV1106G2 Smart 86 Box Development Board without wifi
- Product Code: EPI27845
- Availability: Out Of Stock
-
Rs.4558.00
- (Excluding 18% GST)
OR
The Luckfox Core1106 Smart 86 Box Development Board is a compact, powerful, and reliable embedded development platform designed for smart home control and industrial automation applications. Built on the RV1106G2/G3 processor with integrated NPU and ISP, it offers a robust compute capacity of up to 1TOPS. This board features a high-quality 720720 IPS touchscreen with 5-point capacitive touch and supports RS485, dual relay output, and audio I/O, making it ideal for IoT interface, smart switches, and HMI projects. This version does not include WiFi/Bluetooth.
Features:
- Processor: RV1106G2 (0.5TOPS) / RV1106G3 (1TOPS), ARM Cortex-A7 core
- Memory: 128MB / 256MB DDR3L

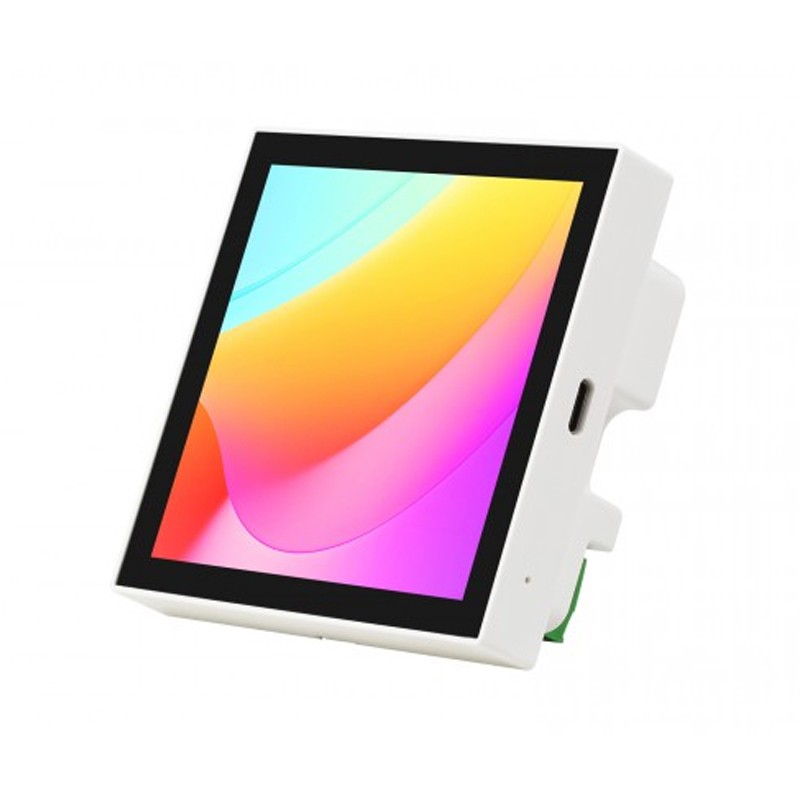

- Display: 4 720720 IPS with 170 wide view and capacitive touch

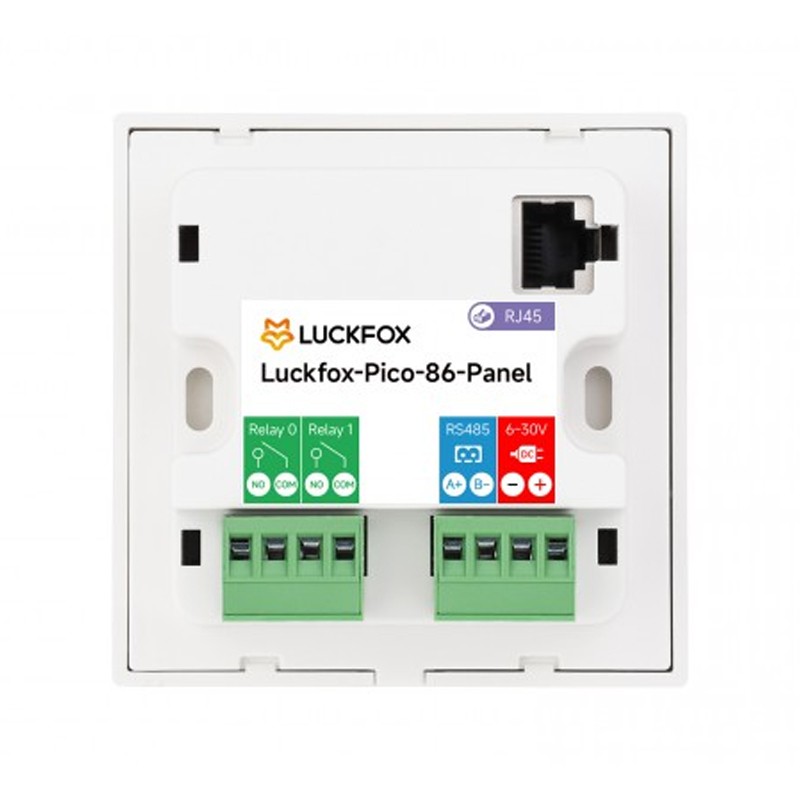

- Communication: RS485 interface with built-in isolation
- Audio: Onboard mic and 1W speaker support
- Relay Control: 2-channel relay with optocoupler isolation
- Connectivity: 10/100M RJ45 Ethernet (wired only, no WiFi)
- Design: Modular 86-type wall box compatible structure
Package Includes:
1 x Luckfox Core1106 RV1106G2 Smart 86 Box Development Board without wifi
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
