Khadas VIM4 Amlogic A311D2 SBC Supports 4K UI and HDMI Input

This is Khadas VIM4 Amlogic A311D2 SBC Supports 4K UI and HDMI Input.

The VIM4 SBC is the latest addition to Khadas popular VIM series. It has a powerful Amlogic A311D2 SoC, featuring a 2.2GHz quad-core ARM Cortex-A73, and a 2.0GHz quad-core Cortex-A53 CPU. HDR10, HDR10+, HLG, and PRIME HDR video processing are supported, and Trust Zone-based security is used for DRM video streaming.

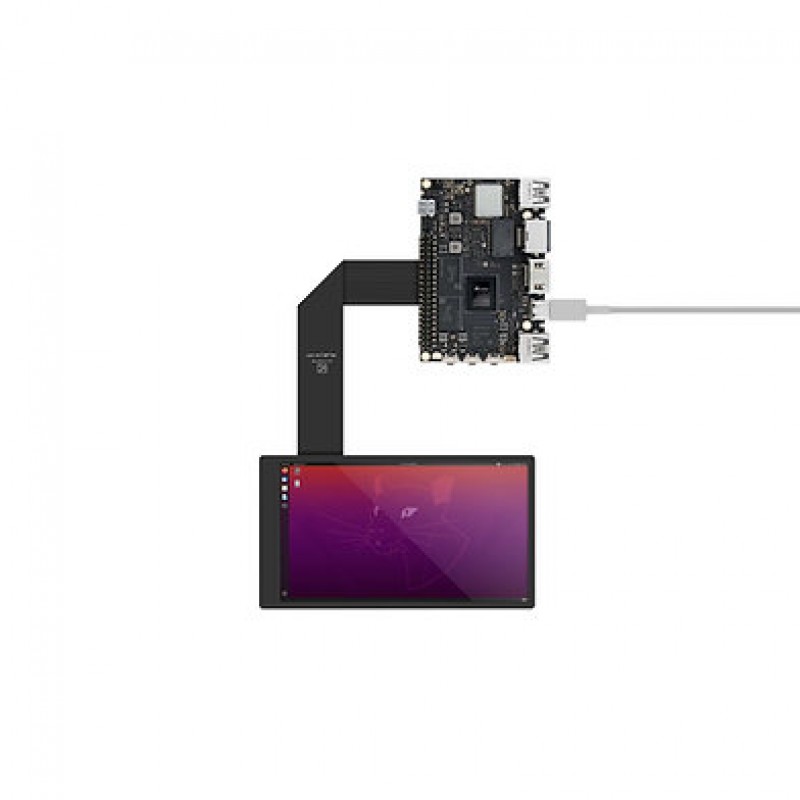

Developers and device manufacturers will love the programmable 32-bit STM32G031K6 MCU, wide 9-20V range of VIN power input, dual MIPI-CSI interfaces for two cameras, real-time clock, wake-on-lan functionality, and 3-axis g-sensor for orientation detection. The MIPI-DSI interface has touch panel functionality, so you can even build touch-sensitive interactive displays.

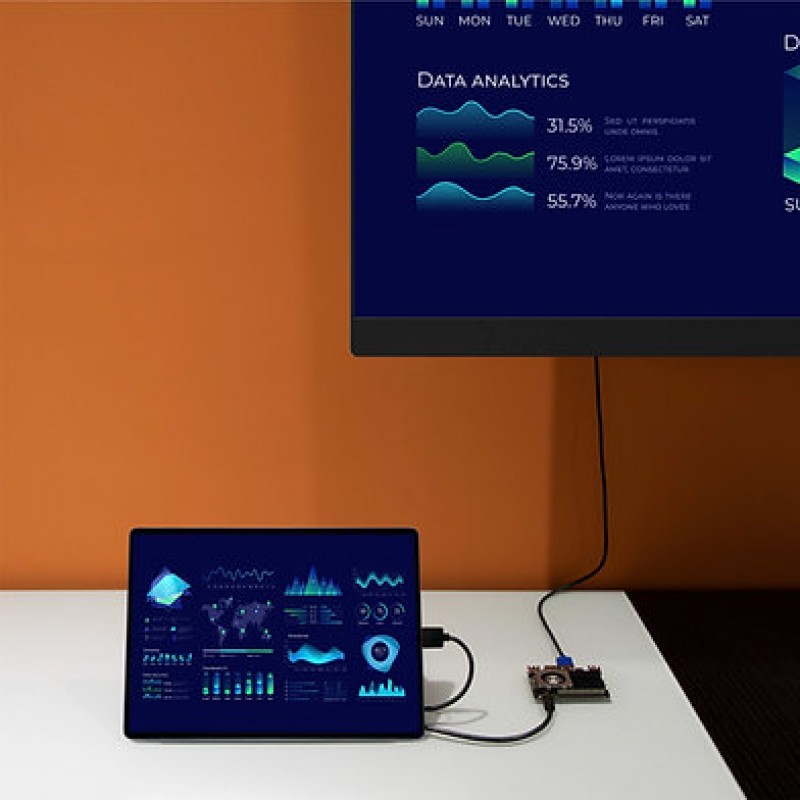

The new VIM4 SBC goes beyond what our original VIM models have to offer. It has an onboard micro HDMI input port for smart display & video conferencing applications. Four HDMI display outputs (HDMI, MIPI-DSI, V-by-One & eDP) means you can connect up to 3 displays simultaneously (including touch) without the need of costly adapters and custom boards.

Features:

1. Amlogic A311D2 2.2GHz Quad-core ARM Cortex-A73 and 2.0GHz Quad-core Cortex-A53
2. ARM Mali-G52 MP8(8EE) GPU up to 800MHz
3. AP6275S Wi-Fi 6 Module (802.11a/b/g/n/ac/ax, 2T2R MIMO with RSDB)
4. Bluetooth 5.1
5. USB 3.0 Available
6. Gigabit Ethernet with WOL support
7. 8GB 64bit LPDDR4X frequency up to 2016MHz
8. USB-C PD for heavy applications
9. M.2 Connector (for NVMe SSD, 5G, etc)

Specifications:

1. Main processor:Amlogic A311D2 octa-core Arm CPU
   1. 2.2 GHz Quad-Core Arm Cortex-A73 big cores
   2. 2.0 GHz Quad-Core Arm Cortex-A53 little cores
2. Memory:8GB of LPDDR4X RAM
3. Built-in storage:32 GB of built-in eMMC flash memory
4. Wireless connectivity:Wi-Fi 6, Bluetooth 5.1

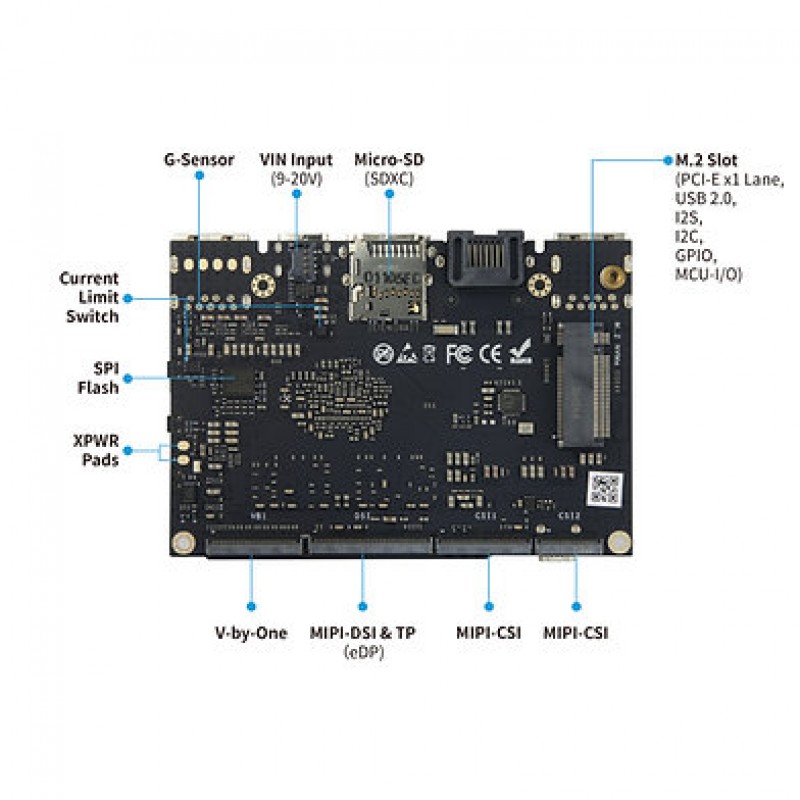

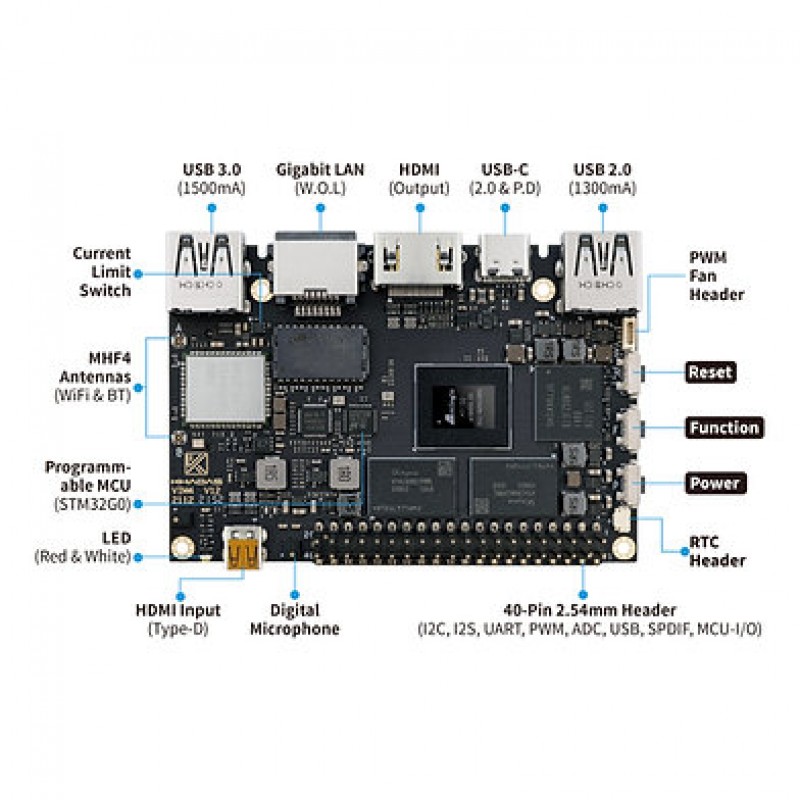

5. Ports/slots:USB, Gigabit LAN, HDMI Input/Output, MicroSD, M.2 PCIe, MIPI-DSI, MIPI-CSI
6. Size:82 x 58 x 11.5 mm, 31 grams
7. Input voltage:9-20 V
8. Integrated sensors:Stereo microphones, tri-axis accelerometer

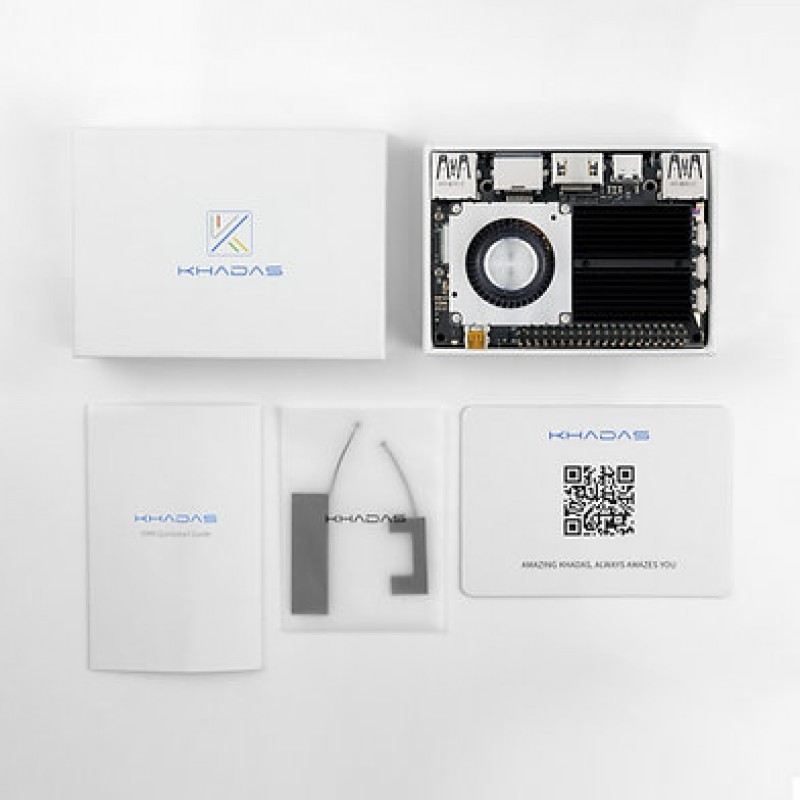

Package Includes:

1 x Khadas VIM4 Amlogic A311D2 SBC

2 x WiFi Antenna
