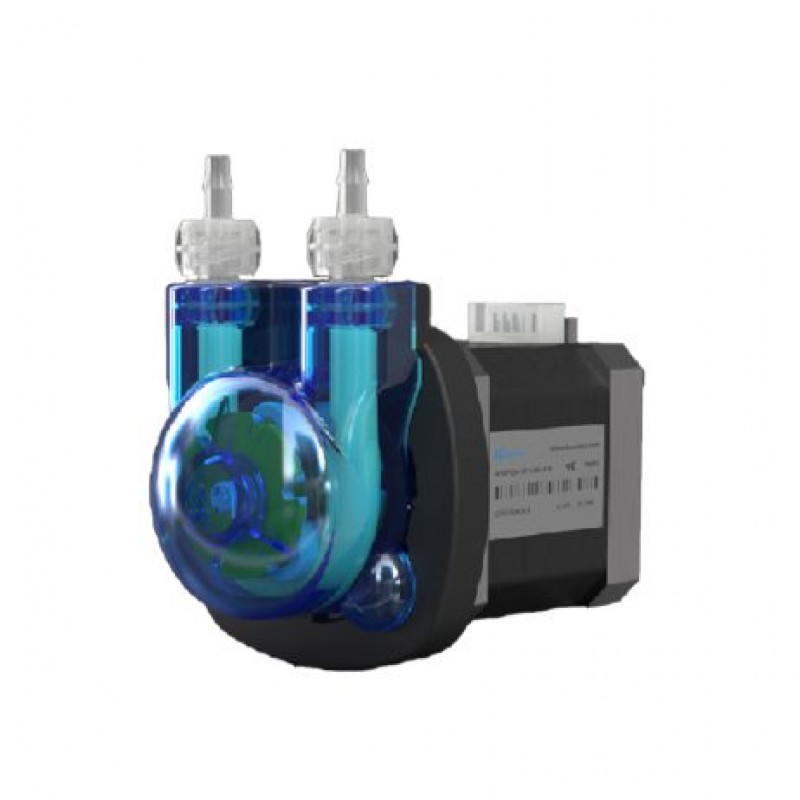

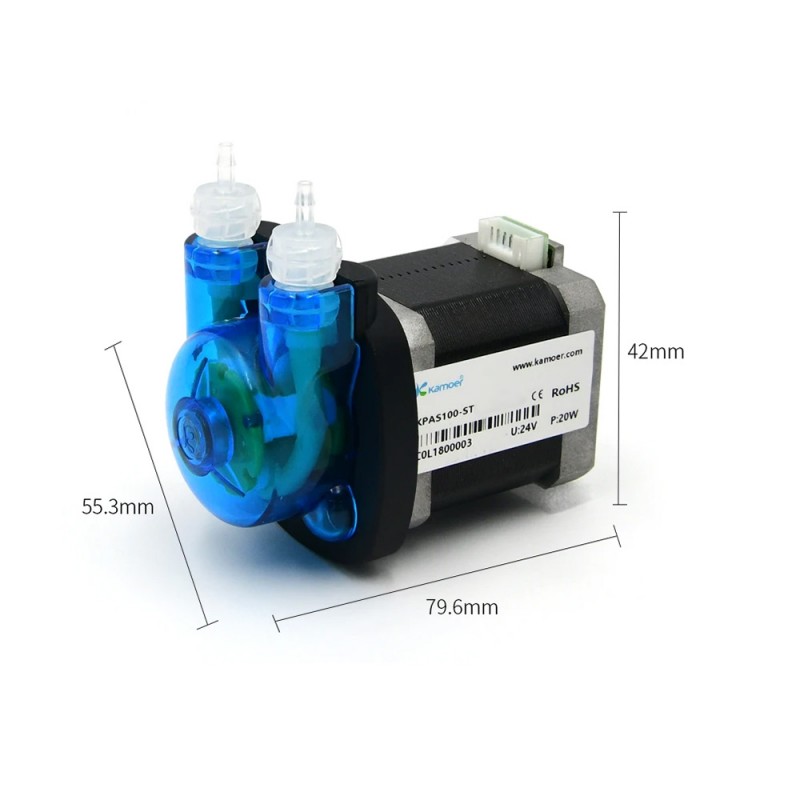

Kamoer 24V 20W 32ml/min KPAS100-ST-S143 Peristaltic Pump

The KPAS100 series peristaltic pump, driven by a stepper motor, offers versatility with its selection of imported BPT (B) and silicone tubes, catering to various liquid transmission needs. With optional tube sizes (14#, 19#, 16#) and a 4-hole mounting plate, installation is simplified. Its 3-rotor transmission ensures smooth operation, while the quick-release pump head allows flexible pipe joint orientation. Efficient planetary friction reduction transmission complements its suitability for 1.6mm pump tubing.

Features:

1. KPAS100 series peristaltic pump is a stepper motor driven peristaltic pump.
2. Pump tube selection the pump tube adopts imported BPT (B) tube and silicone tube (S), which can be applied to different transmission liquid requirements.
3. Pump tube size is optional (14#, 19#, 16#) to meet different flow requirements.
4. The pump body comes with a 4-hole mounting plate, no need to add it separately.
5. 3 rotor transmission, moderate pulse.
6. Installation method The installation method is fixed through the plate. In addition, the pump.
7. head adopts a quick-release type, and the orientation of the pipe joint can be selected in any direction of up, down, left, and right.
8. Transmission mode planetary friction reduction transmission.
   Suitable for wall thickness 1.6 pump tubing.

Package Includes:

1 x Kamoer 24V 20W 32ml/min KPAS100-ST-S143 Peristaltic Pump
