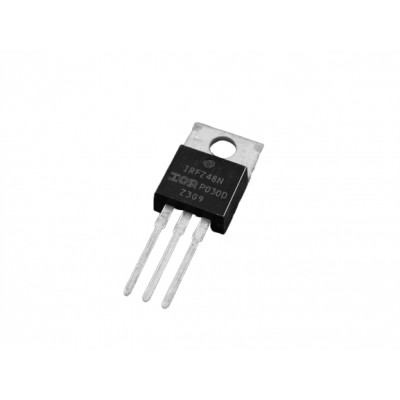

IRFZ48N MOSFET - 55V 64A N-Channel Power MOSFET TO-220 Package
- Product Code: EPI10924
- Availability: 402
-
Rs.35.00
- (Excluding 18% GST)
OR
IRFZ48N utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
Features:-
• Advanced process technology
• Ultra Low On-Resistance
• Fully Avalanche Rated
• 175 °C operating temperature
• Fast switching
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 55V |
| Continuous Drain Current (Id) | 64A |
| Drain-Source Resistance (Rds On) | 0.014Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 81 nC |
| Operating Temperature Range | -55 - 175°C |
| Power Dissipation (Pd) | 130W |
Related Documents
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 41.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
