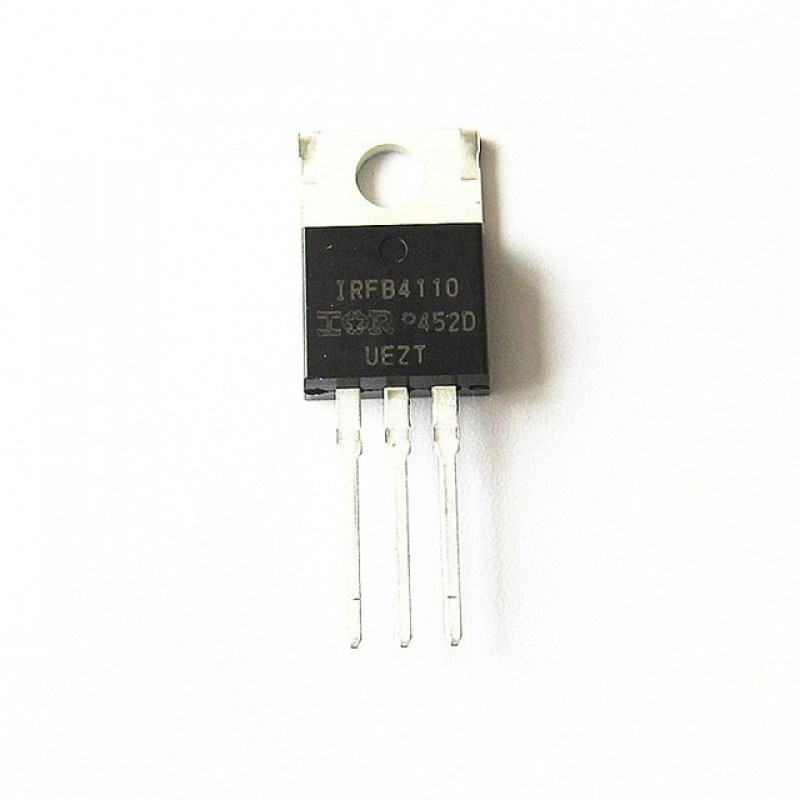

IRFB4110 MOSFET- 100V 180A N-Channel HEXFET Power MOSFET TO-220 Package
- Product Code: EPI10891
- Availability: 1459
-
Rs.99.00
- (Excluding 18% GST)
OR
IRFB4110 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• High efficiency synchronous rectification in SMPS
• Uninterruptible power supply
• High speed power switching
• Hard switched and high frequency circuits
Detailed Specifications
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 100V |
| Continuous Drain Current (Id) | 180A |
| Drain-Source Resistance (Rds On) | 4.5Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 210 nC |
| Operating Temperature Range | -55 - 175°C |
| Power Dissipation (Pd) | 370W |
Related Documents
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 116.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
