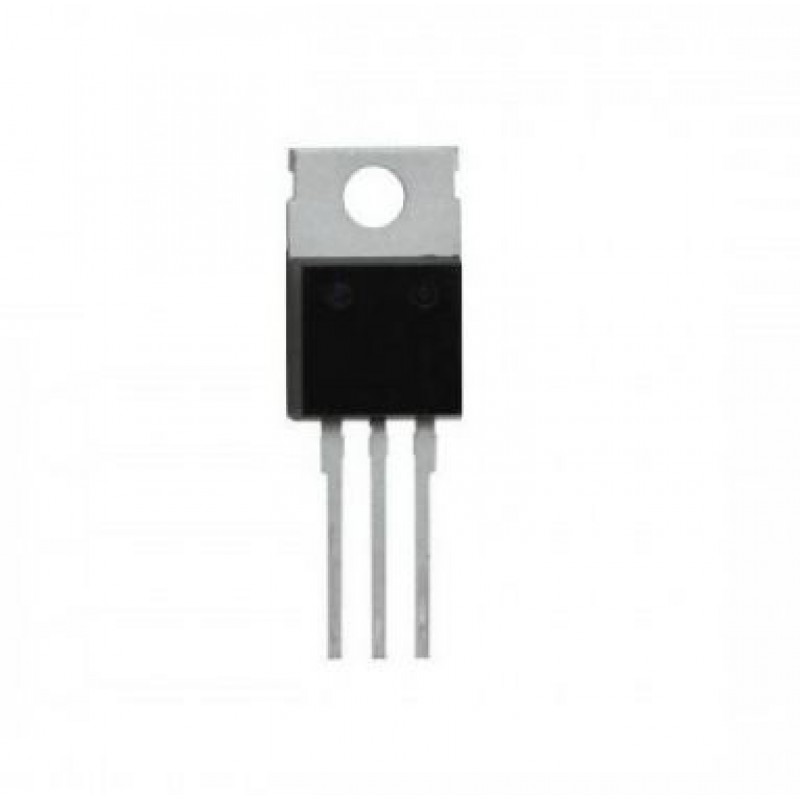

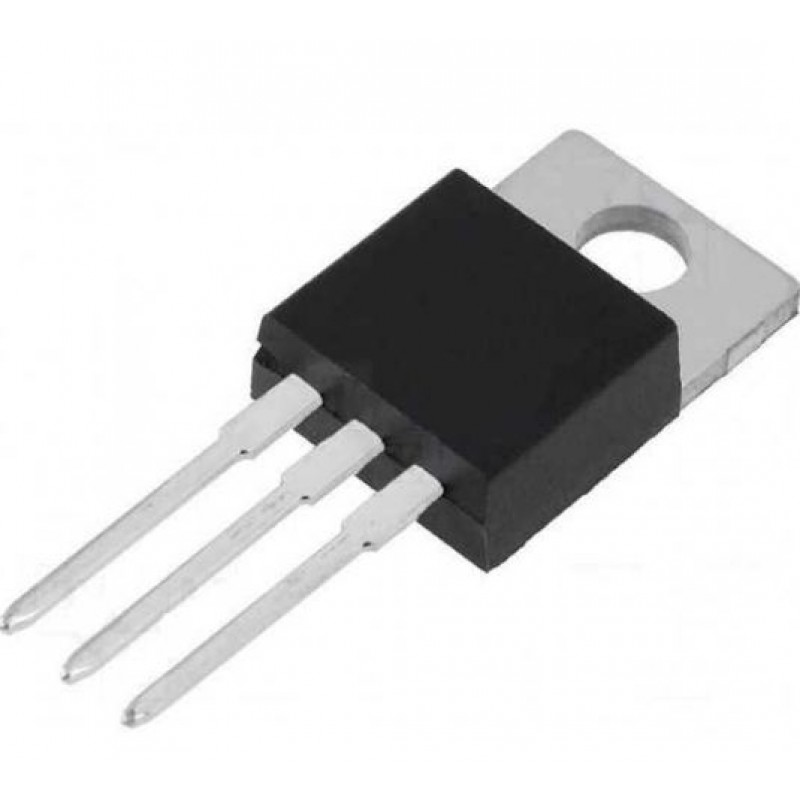

IRF9640 MOSFET - 200V 11A P-Channel Power MOSFET TO-220 Package
- Product Code: EPI10888
- Availability: 1167
-
Rs.72.00
- (Excluding 18% GST)
OR
IRF9640 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Dynamic dv/dt rating
• Fast switching
• Fully avalanche rated
• Ease of paralleling
• Simple drive requirements
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | P-Channel |
| Drain-Source Breakdown Voltage (Vds) | -200V |
| Continuous Drain Current (Id) | -11A |
| Drain-Source Resistance (Rds On) | 0.5Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 44 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 125W |
Related Documents
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 84.96 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
