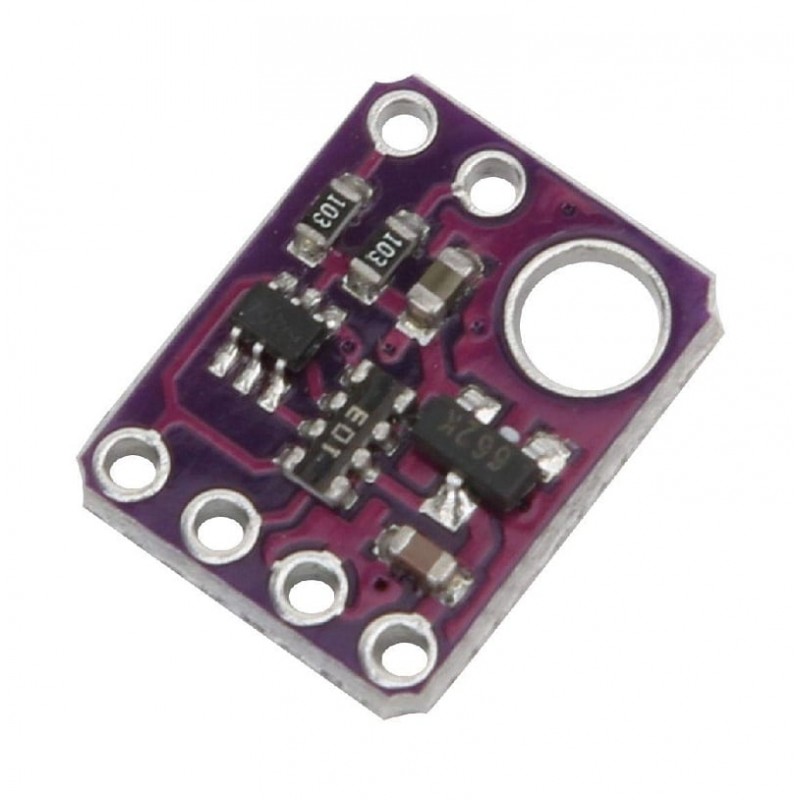

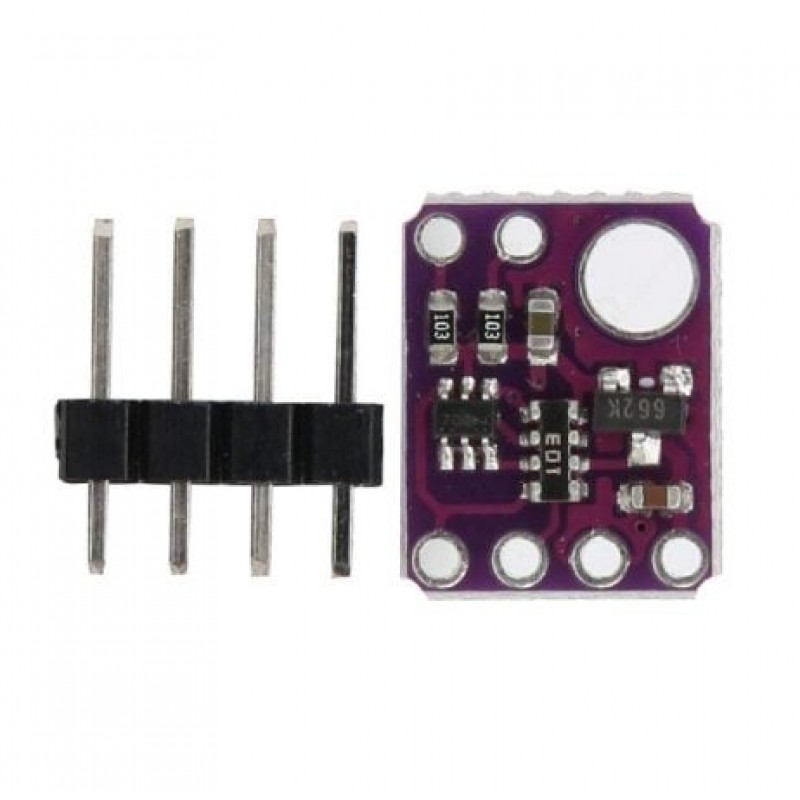

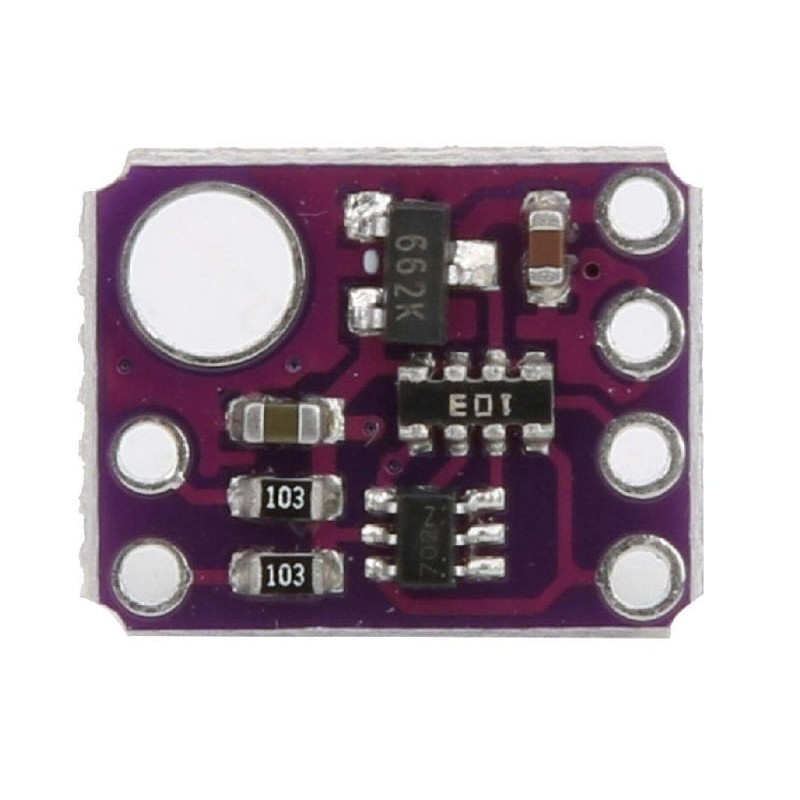

Unsoldered Purple GY- 530 VL53L0X Time-of- Flight (ToF) Laser Ranging Sensor Module

The Unsoldered Purple GY-530 VL53L0X ToF Laser Ranging Sensor Module offers precise distance measurement using Time-of-Flight technology. The VL53L0X sensor provides accurate ranging in a compact module. Featuring unsoldered components and a distinctive purple color, it allows customization for electronic projects.

Applications:

1. wall detection, cliff detection, collision detection
2. sweeping robots
3. faucet, soap dispenser, Dry cell phone
4. unmanned aerial vehicles, IoT products.

Features:

1. GY-530 VL53L0X ToF Sensor
2. Time-of-Flight for accurate distance
3. VL53L0X for precise ranging
4. Compact design
5. Unsoldered components
6. Purple color

Specifications:

1. Product: Laser Ranging Sensor Module
2. Model: GY- 530 VL53L0X
3. Technology: Time-of-Flight
4. Ranging time: <30ms
5. Power supply: 2.8 to 5V
6. Operating mode: Power consumption 20mW
7. Standby power consumption: 5A
8. Color: Purple
9. Length: 13mm
10. Width: 10mm

Package Includes:

1 x Unsoldered Purple GY- 530 VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Module
