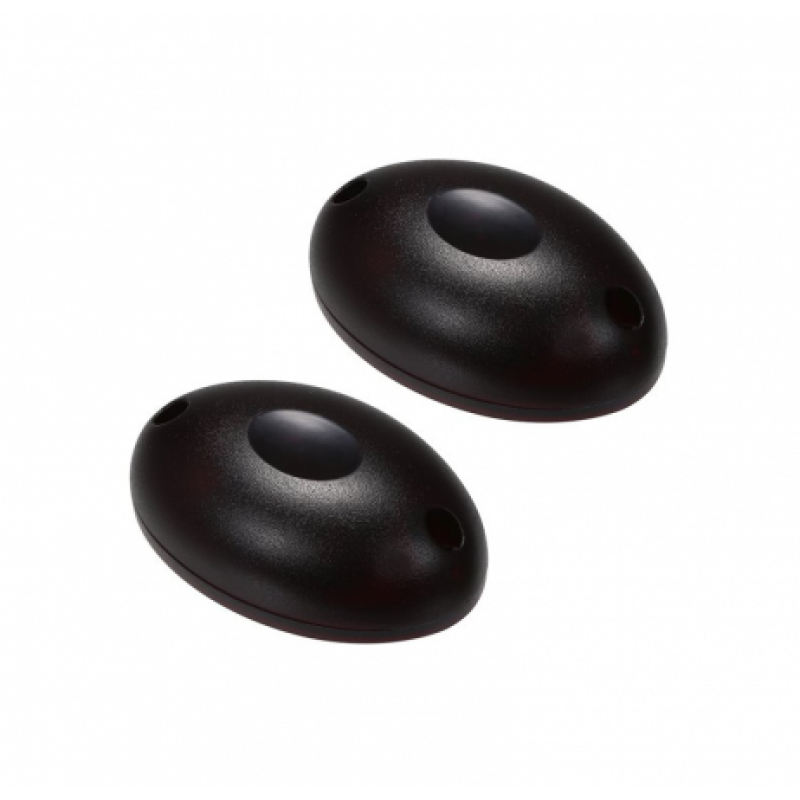

Single Beam Infrared Sensor for Automatic Doors
- Product Code: EPI20689
- Availability: 2
-
Rs.399.00
- (Excluding 18% GST)
OR
This is an infrared sensor kit, which is used to automate the door opening and closing at any place. The sensor comes in two parts a transmitter and a receiver. The sensor works on the principle of infrared radiation that means if the infrared beam from the transmitter is broken then the receiver will activate the output.
Features:
- High-Quality Enclosure to Protect the Sensor
- Works On Infrared Technology
- Can Work in Weather Conditions Like Fog, Rain, Dust, etc.
- Easy to Install
Package Includes:
1 x Single Beam Infrared Sensor for Automatic Doors
1 x Pack of mounting hardware
1 x User Manual
Specifications :-
| Operating Voltage (VDC) | 12 ~ 24 |
| Operating Distance Range (Meter) | 20 |
| Wavelength (nm) | 940 |
| Operating Temperature (C) | -20 to 70 |
| Relay Capacity | [emailprotected] |
| Length (mm) | 76 |
| Width (mm) | 49.2 |
| Height (mm) | 21.6 |
| Weight (gm) | 34 |
| Shipment Weight | 0.037 kg |
| Shipment Dimensions | 8 6 2 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 470.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
