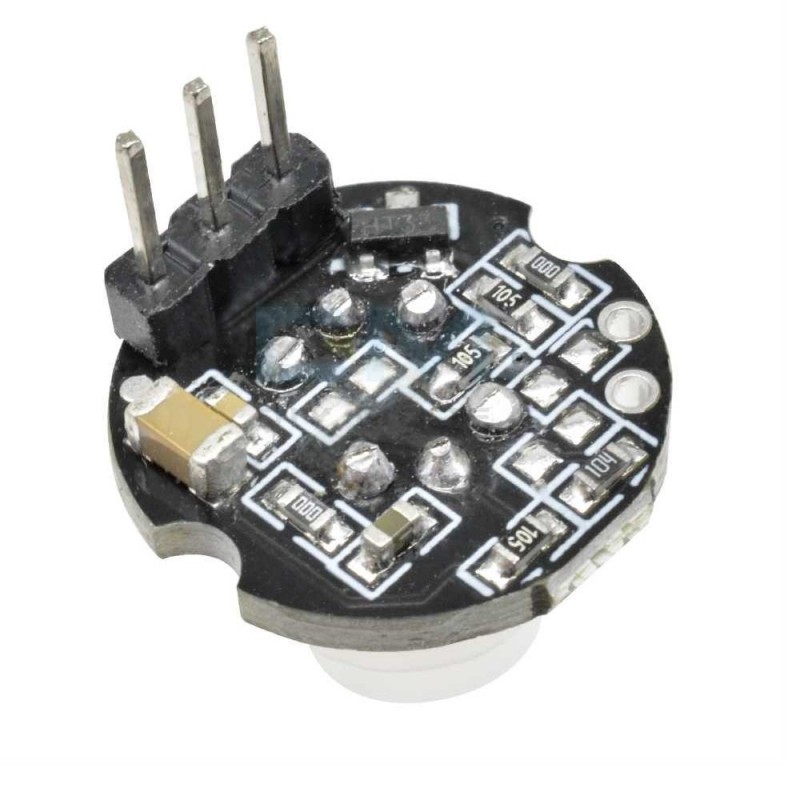

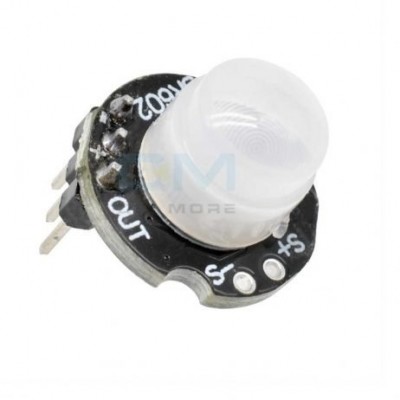

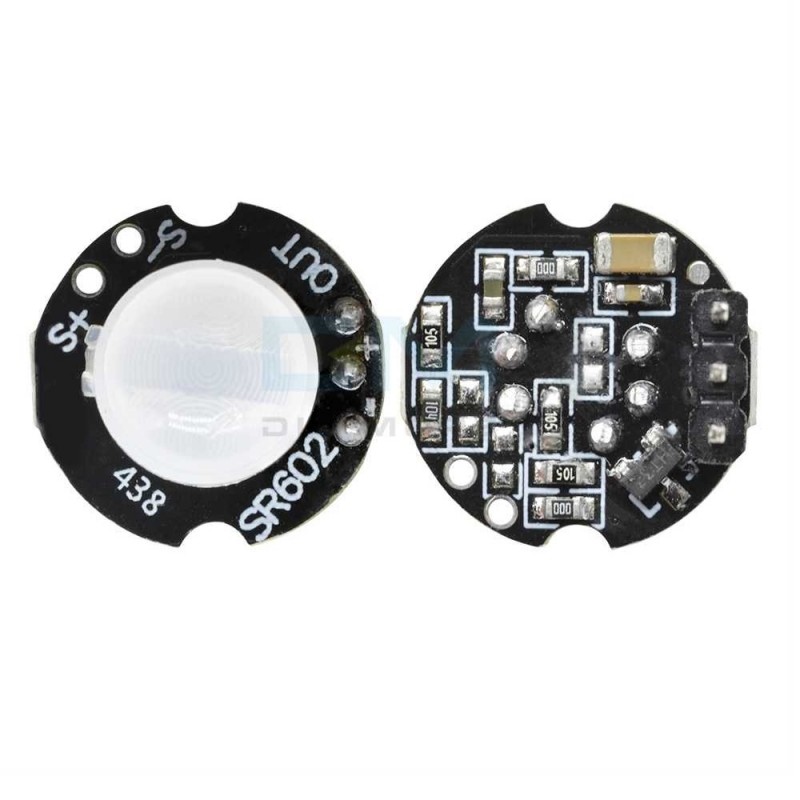

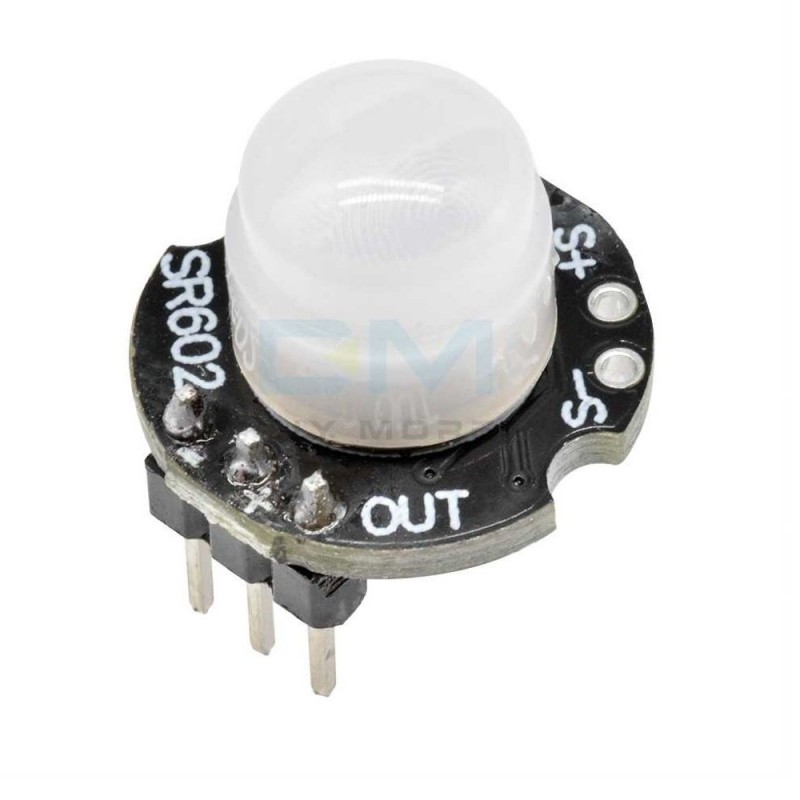

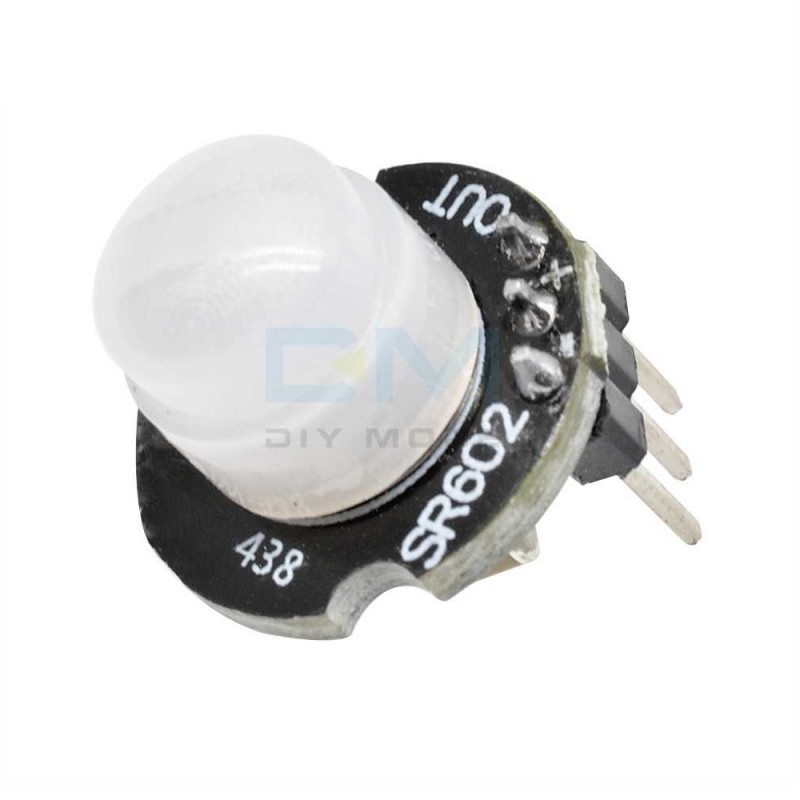

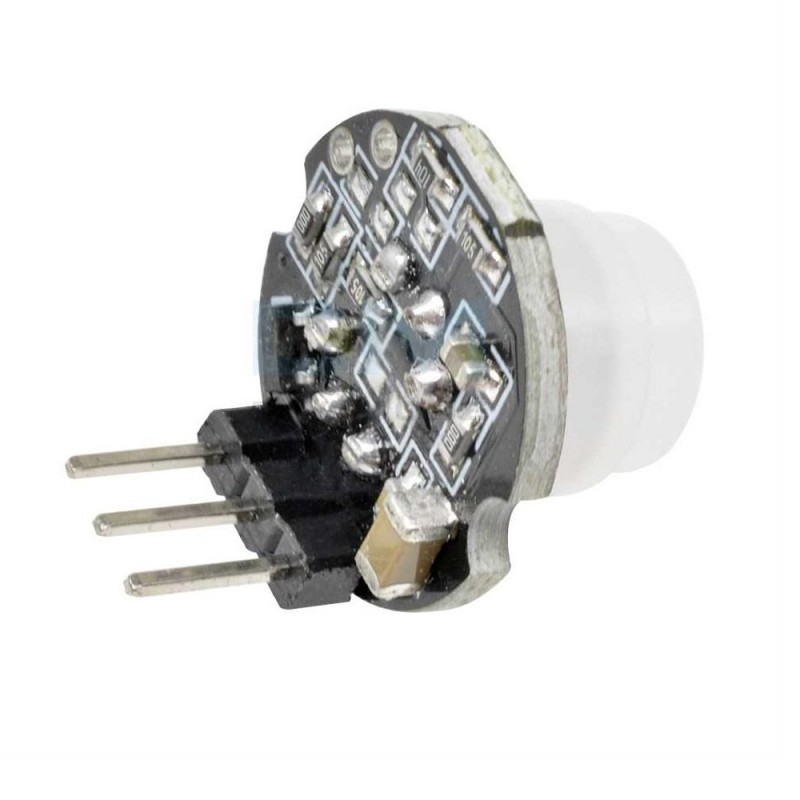

MH-SR602 MINI Motion Sensor Detector Module For Arduino
- Product Code: EPI12815
- Availability: 20
-
Rs.78.00
- (Excluding 18% GST)
OR
MH-SR602 MINI Motion Sensor Detector Module is used as a Pyroelectric human body infrared sensor module. This module has a sensing distance of up to 5 meters. It Can be used for body sensor lights, alarms, security.
Note:
The high-level time of the output of this product is adjustable, 2.5 seconds to 1 hour, the output time set at the factory.
It is 2.5 seconds, and you can change one chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time.
Features:
- High sensitivity
- Fast response
- Small static power consumption
- Small size
- Easy to install
Package Includes:
1 x MH-SR602 MINI Motion Sensor Detector Module For Arduino
Specifications :-
| Model | SR602 |
| Sensing Distance | 3M-5M |
| Delay | Adjustable |
| Power supply DC | 3.3V-15V |
| Output | high level, H=3.3V, L=0V |
| Quiescent current | 20uA |
| Color | Black |
| Dimension(mm) | 15 x 15 x 20 |
| Weight(g) | 20 |
| Shipment Weight | 0.022 kg |
| Shipment Dimensions | 5 5 2 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 128.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
