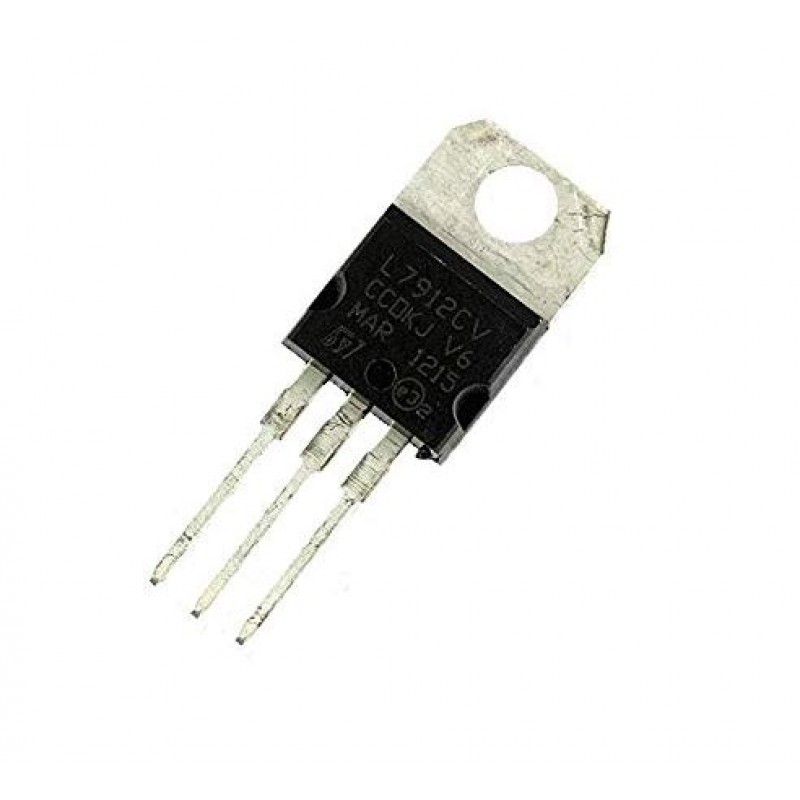

LM7912 IC - 12V Negative Voltage Regulator IC
- Product Code: EPI11816
- Availability: 208
-
Rs.11.00
- (Excluding 18% GST)
OR
The LM7912 series of three terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting,thermal shut down and safe operating area protection, making it essentially indestructible.
Features:-
• Output Current in Excess of 1A
• Output Voltages of -5, -6, -8 , -9, -10, -12, -15, -18 and -24V
• Internal Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Compensation
Specification:-
| Symbol | Parameter | Min | Type | Max | Units |
| VO | Output Voltage | -11.5 | -12 | -12.5 | V |
| Regline | Line Regulation | 12 | 240 | m V | |
| Regload | Load Regulation | 12 | 240 | m V | |
| IQ | Quiescent Current | 3 | 6 | °C | |
| RR | Ripple Rejection | 54 | 60 | d B |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 24.78 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
