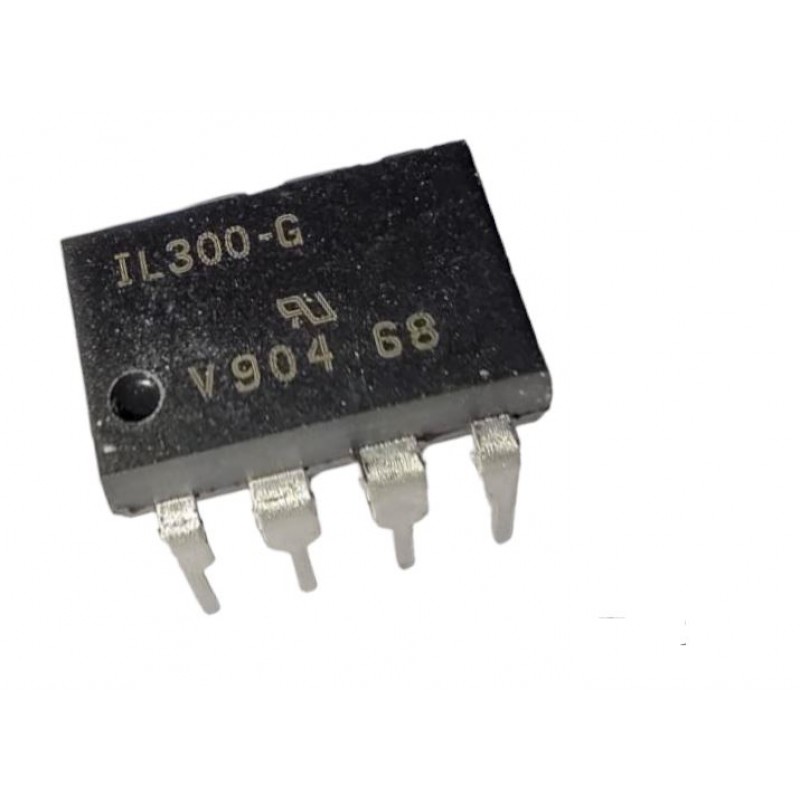

IL300G - High Linear Optocoupler IC

IL300G - High Linear Optocoupler IC

The IL300 linear optocoupler consists of an AlGaAs IRLED irradiating an isolated feedback and an output PIN photodiode in a bifurcated arrangement. The feedback photodiode captures a percentage of the LEDs flux and generates a control signal that can be used to servo the LED drive current. This technique compensates for the LED’s non-linear, time, and temperature characteristics. The output PIN photodiode produces an output signal that is linearly related to the servo optical flux created by the LED. The time and temperature stability of the input-output coupler gain is insured by using matched PIN photodiodes that accurately track the output flux of the LED.

Features:-

• Couples AC and DC signals
• 0.01% Servo Linearity
• Wide Bandwidth, >200KHz
• High Gain Stability, ±0.005%/C
• Low Input-Output Capacitance
• Low Power Consumption, < 15mw
• Isolation Test Voltage, 5300 VACRMS,1 sec.
• Internal Insulation Distance, >0.4 mm for VDE
• Underwriters Lab File #E52744
• VDE Approval #0884 (Optional with
• Option 1, Add -X001 Suffix)
• IL300G Replaced by IL300-X006

Specifications:-

• Product Category: High Linearity Optocouplers
• Package/Case: DIP-8
• Output Type: PIN Photodiode
• Number of Channels: 1 Channel
• Isolation Voltage: 5300Vrms
• Forward Current: 10 mA
• Forward Voltage: 1.25 V
• Reverse Voltage: 5 V
• Power Dissipation: 210mW
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 100 C
• Series: IL300
• Current Transfer Ratio: 0.5 % to 1.1 %
• Fall Time:1.75 us
• Height: 3.81 mm
• Length: 10.16 mm
• Rise Time: 1.75 us
• Subcategory: Optocouplers
• Width: 6.6 mm
• Unit Weight: 3.244 g

Applications:-

• Power Supply Feedback Voltage/Current
• Medical Sensor Isolation
• Audio Signal Interfacing
• Isolate Process Control Transducers
• Digital Telephone Isolation

Package Includes:-

1 x IL300G - High Linear Optocoupler IC
