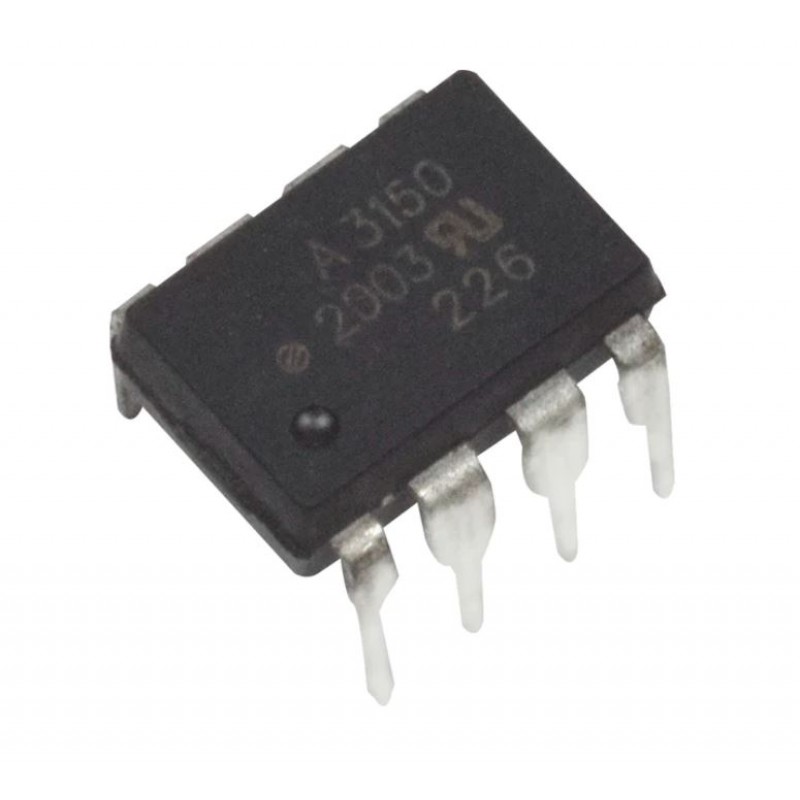

A3150 IGBT Gate Drive Optocoupler IC DIP-8 Package

A3150 Optocoupler used in motor control inverter applications, this optocoupler is perfectly suited. The output stage's large operating voltage range supplies the drive voltages needed by gate-controlled devices. This optocoupler is perfectly suited for directly driving IGBTs with ratings up to 1200V/50A due to the voltage and current it supplies. The HCPL-3150/315J can be used to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings.

Features:-

• 0.6A maximum peak output current
• 1.0V maximum low level output voltage (VOL) eliminates need for negative gate drive
• Under voltage lock-out protection (UVLO) with hysteresis
• Wide operating VCC range: 15V to 30V
• ±0.35-µs maximum delay between devices/channel

Specifications:-

• Model : A3150
• Type : Optocoupler
• No of Pins : 8
• Channels : 1
• Package : 8 Pin DIP
• Output current : 0.5A
• Maximum switching speed : 500nS
• Operating voltage range : 15 to 30V

Package Includes:-

1 x A3150 IGBT Gate Drive Optocoupler IC DIP-8 Package
