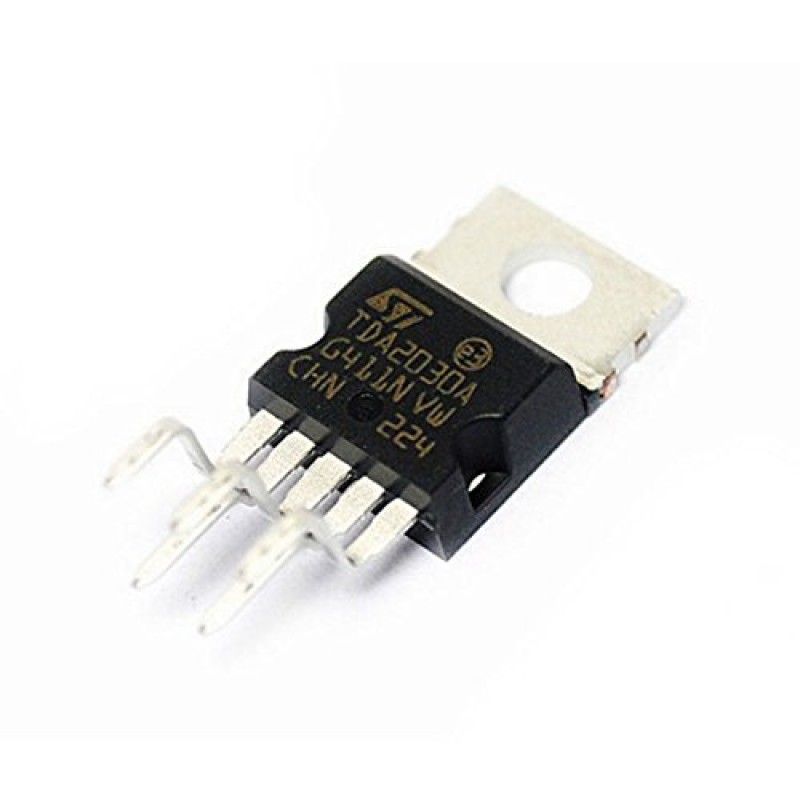

  • TDA2030 18W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

TDA2030 18W Hi-Fi Audio Power Amplifier IC TO-220-5 Package

  • Product Code: EPI21871
  • Availability: 1267

0 reviews Write a review

  • Rs.19.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The TDA2030 is a monolithic IC in a Pentawatt package intended for use as a low-frequency class-AB amplifier. With VS max = 44 V it is particularly suited for more reliable applications without regulated supply and for 35 W driver circuits using low-cost complementary pairs. The TDA2030 provides high output current and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range. A conventional thermal shutdown system is also included.


Features:-

■ Output power 18 W at VS = ±16 V / 4 Ω with 0.5% distortion

■ High output current

■ Very low harmonic and crossover distortion

■ Short-circuit protection

■ Thermal shutdown


Specifications:-

Symbol Parameter Value Unit
VS Supply Voltage ± 22 V
VI Input Voltage Vs
VI Differential Input Voltage ± 15 V
IO Peak Output Current (Internally Limited) 3.5 A
PTOT Total power dissipation at T case = 90 °C 20 W
TSTG, TJ Storage and junction temperature – 40 to + 150 °C


Related Document:-

 TDA2030 IC Datasheet
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP Rs. 96.76 (Inclusive of all Taxes)
