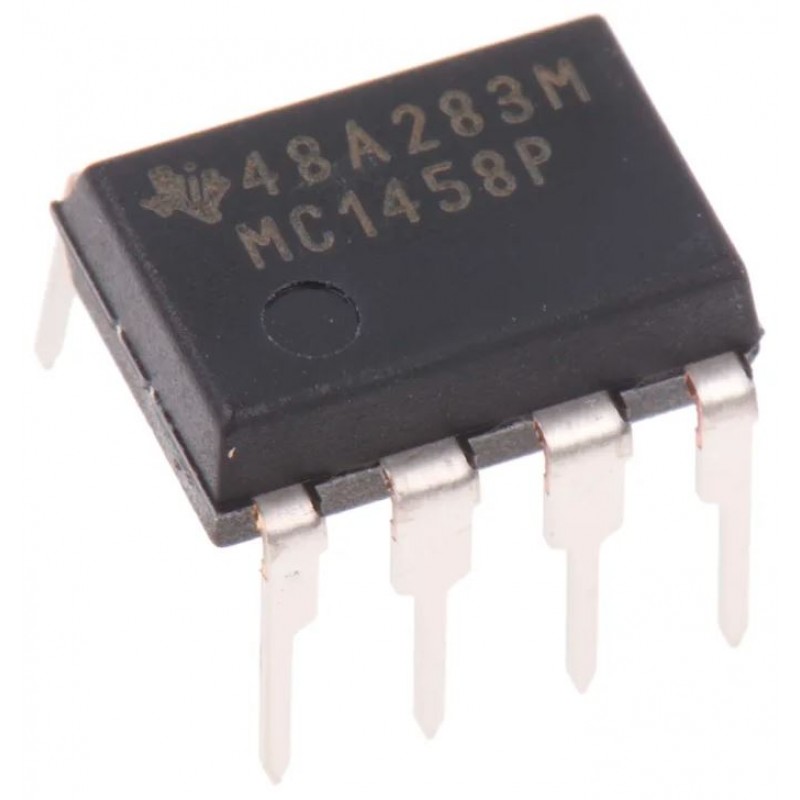

MC1458 - Dual Channel Operational Amplifier Package IC DIP-8 Package

The MC1458 is a high-performance, monolithic, dual operational amplifier intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifiers, and general feedback applications

Features:-

• Low power consumption
• Large input voltage range
• No latch-up
• High gain
• Short-circuit protection
• No frequency compensation required

Specifications:-

• Supply voltage : ±22
• Input Voltage : ±15
• Differential input voltage : ±30
• Output short-circuit duration : Infinite
• Power dissipation : 300mW
• Minimum Operating Temperature : 0°C
• Maximum Operating Temperature: + 70°C
• Ib – Input Bias Current: 500 nA
• Operating Supply Current: 3.4 mA
• Mounting Style: Through Hole
• Package/Case: PDIP-8
• Number of Channels: 2 Channel
• GBP – Gain Bandwidth Product: 1 MHz

Package Includes:-

1 x MC1458 - Dual Channel Operational Amplifier Package IC DIP-8 Package
