Humidity Sensitive Switch Relay Module
- Product Code: EPI10708
- Availability: 10
-
Rs.163.00
- (Excluding 18% GST)
OR

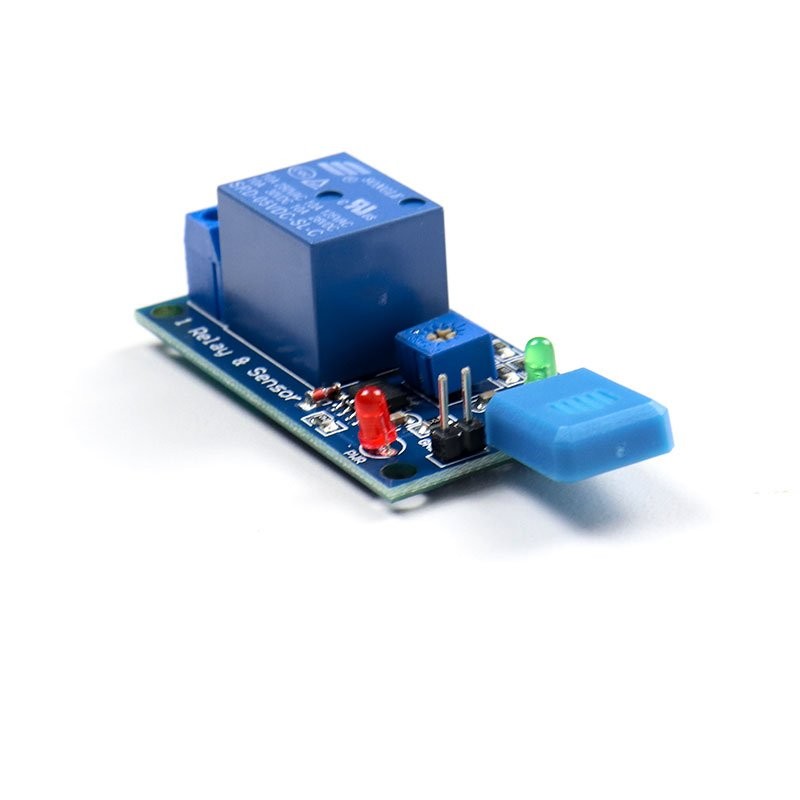

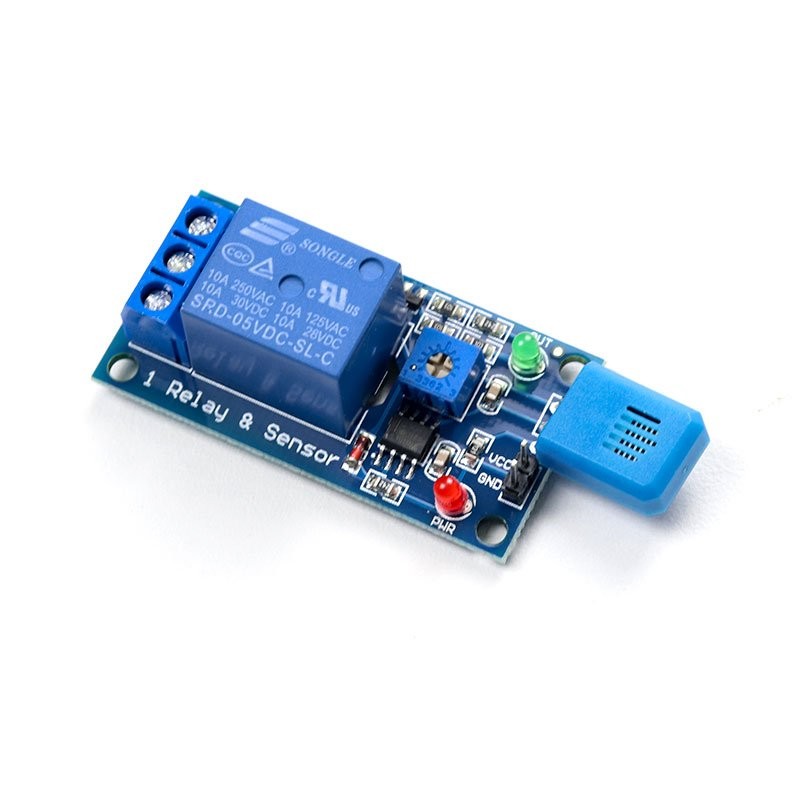

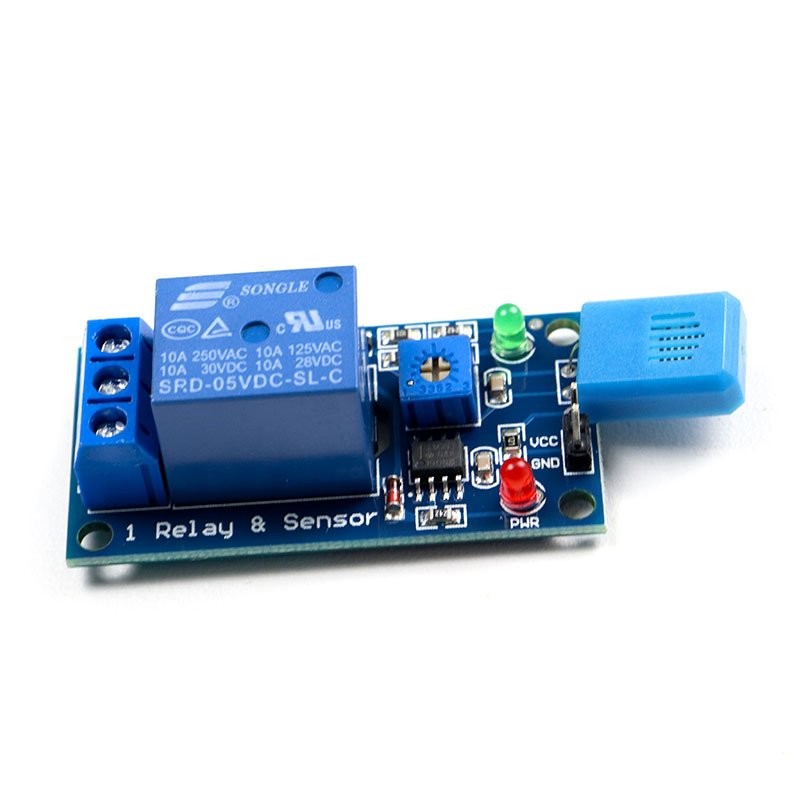

It is a Humidity Sensitive Switch Relay Module. The module uses a high-quality HR202 humidity sensor. The comparator output directly drives the relay to connect 220V AC or other equipment. With potentiometer to adjust the detection threshold. The sensor interface can be equipped with a pin and a wet sensor with a lead.
Package Includes:
1 x Humidity Sensitive Switch Relay Module.
Specifications :-
| Maximum Voltage(V) | 250V AC |
| Supply Current (A) | 150mA |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Opt. Relative Humidity(RH) | 20% 85% |
| Storage condition () | 65 to 125 |
| Operating Temperature (C) | -40 to 80 |
| Length (mm) | 64 |
| Width (mm) | 26 |
| Height (mm) | 17 |
| Weight (gm) | 16 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 245.44 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
