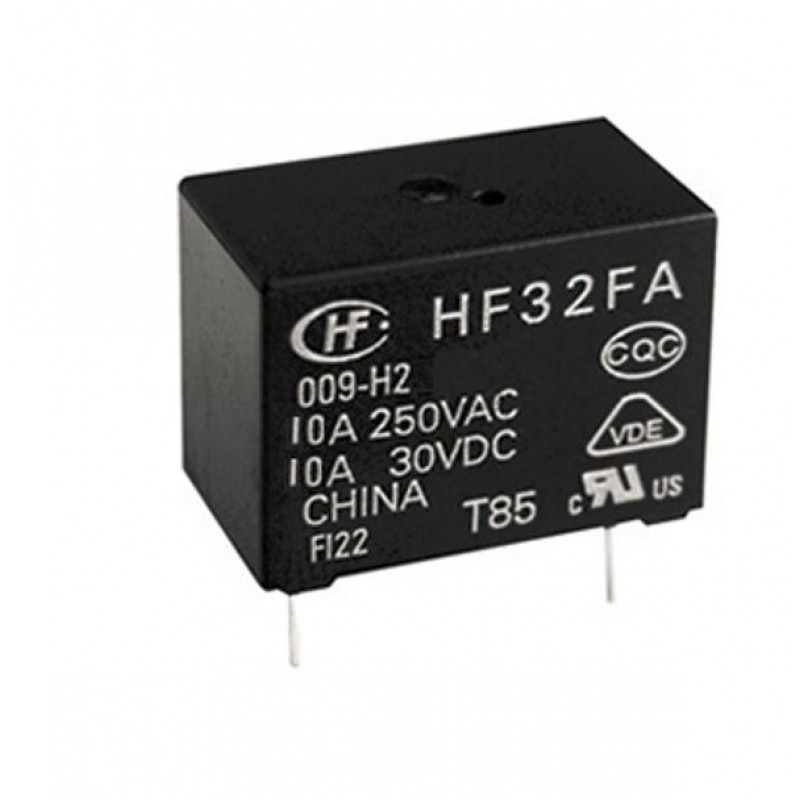

Hongfa 9V 10A DC HF32FA-G/009-H2 4 Pin SPST Miniature Power Relay

Hongfa 9V 10A DC HF32FA-G/009-H2 4 Pin SPST Miniature Power Relay offers low height, 10A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.

Features :

• 5A switching capability
• Creepage/clearance distance>8mm
• 5kV dielectric strength (between coil and contacts)
• 1 Form A meets VDE 0700, 0631 reinforce insulation
• 1 Form C meets VDE 0631 reinforce insulation
• UL insulation system: Class F
• Product in accordance to IEC 60335-1 available

Specifications :

• Manufacturer : HONGFA RELAY
• Relay type : Electromagnetic
• Contacts : SPDT
• Rated winding voltage : 5V DC
• Contact load AC @R : 10A / 125V AC

                                     (with active load)

• Contact load DC @R :  10A / 30V DC

                                    (with active load)

• Contact current max : 10A
• Switched voltage : Max. 30VDC, Max. 250VAC
• Relay version : Subminiature
• Mounting : PCB
• Winding resistance max : 55 ohm
• Winding voltage min : 3.75V DC
• Winding voltage max : 6.5V DC
• Response time : 8ms
• External dimensions : 18.4x10.2x15.3 mm
• Release time : 5ms
• Winding power : 450mW
• Working temperature : -40 to +70°C
• Contact resistance : 100 mΩ
• Contact material : AgCdO
• Weight : 6gm

Package Includes :

1 x Hongfa 9V 10A DC HF32FA-G/009-H2 4 Pin SPST Miniature Power Relay
