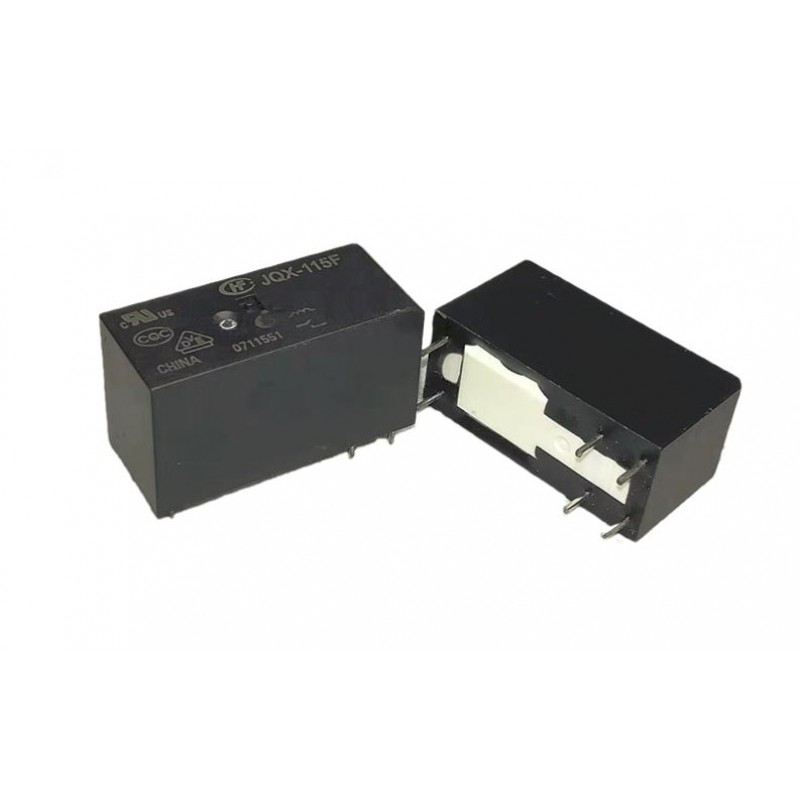

Hongfa 5V 16A DC JQX115F/005-1H3B 6-Pin SPST PCB Mount Power Relay
- Product Code: EPI10595
- Availability: 286
-
Rs.99.00
- (Excluding 18% GST)
OR
Hongfa 5V 16A DC JQX115F/005-1H3B 6-Pin SPST PCB Mount Power Relay
Features:
- High Inrush TV-5 80A
- Low height 15.7 mm
- 5KV dielectric coil to contacts
- Creepage distance 10mm
Specifications:
- Type : JQX115F/005-1H3B
- Switching Current (A, Res. load) : 16A
- Contact arrangement : 1 Form A
- Contact material : Silver Alloy
- Coil voltage : 5
- Creepage Distance : 10mm
- Coil Power : 0.4W
- Unit Weight : 13.5gm
Package Includes:
1 x Hongfa 5V 16A DC JQX115F/005-1H3B 6-Pin SPST PCB Mount Power Relay
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 116.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
