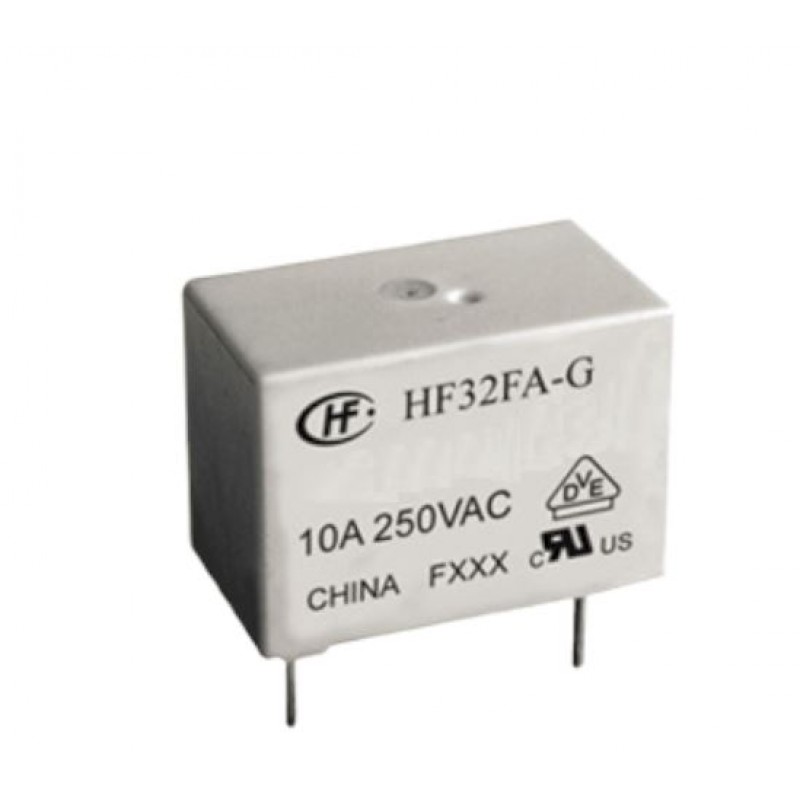

Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay
- Product Code: EPI10569
- Availability: 692
-
Rs.55.00
- (Excluding 18% GST)
OR
Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay
Features:
- 10A switching capability
- Creepage/clearance distance>8mm
- 5kV dielectric strength (between coil and contacts)
- UL insulation system: Class F
- Meets VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
Specifications:
- Type :HF32FA-G/048-HT
- Switching Current (A,Res.load) : 10A
- Contact arrangement : 1 Form A
- Coil version : single contact
- Terminal Type : type 1 terminal
- Mounting : PCB-THT
- Construction : unsealed
- Terminals : type 1 terminal
- Contact material : AgSnO2
- Sort : Standard
- Coil voltage : 48
- Coil power: Approx. 0.45W
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 17.6×10.1×12.7 (mm)
Package Includes:
1 x Hongfa 48V 10A DC HF32FA-G/048-HT 4 Pin SPST Miniature Power Relay
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 64.9 (Inclusive of all Taxes) |
