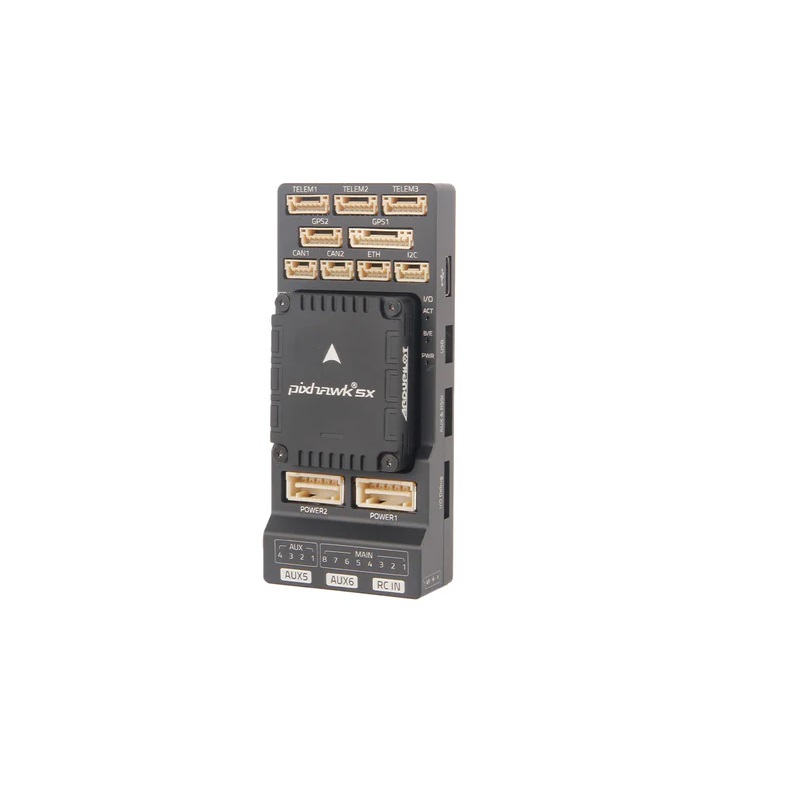

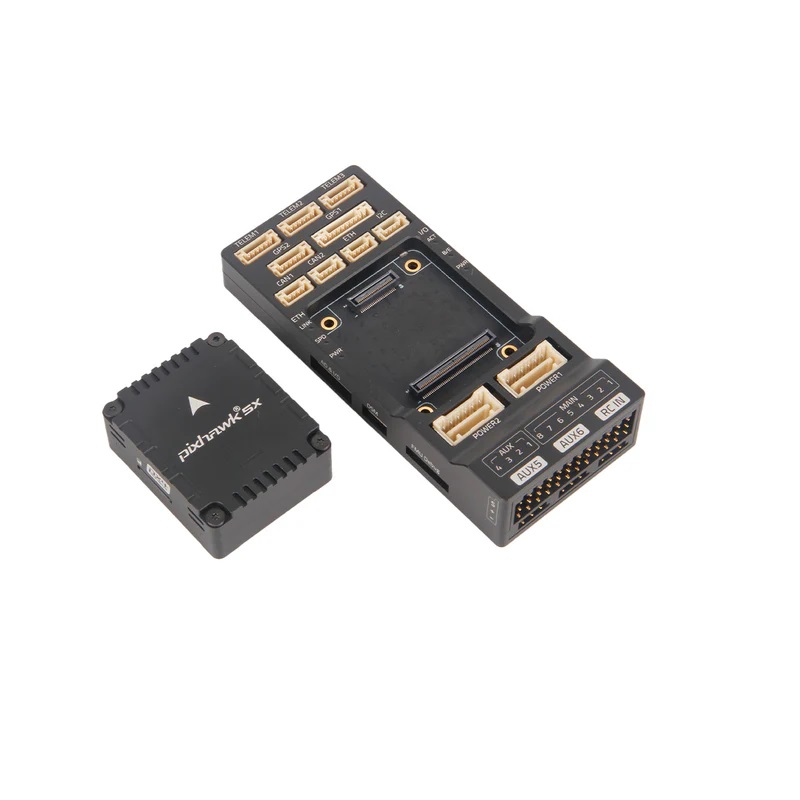

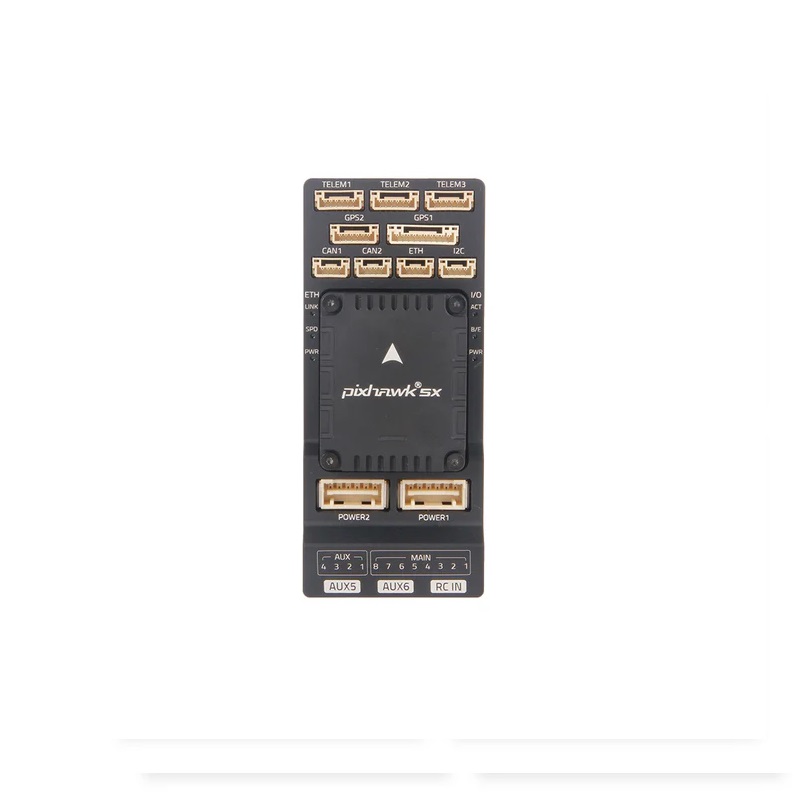

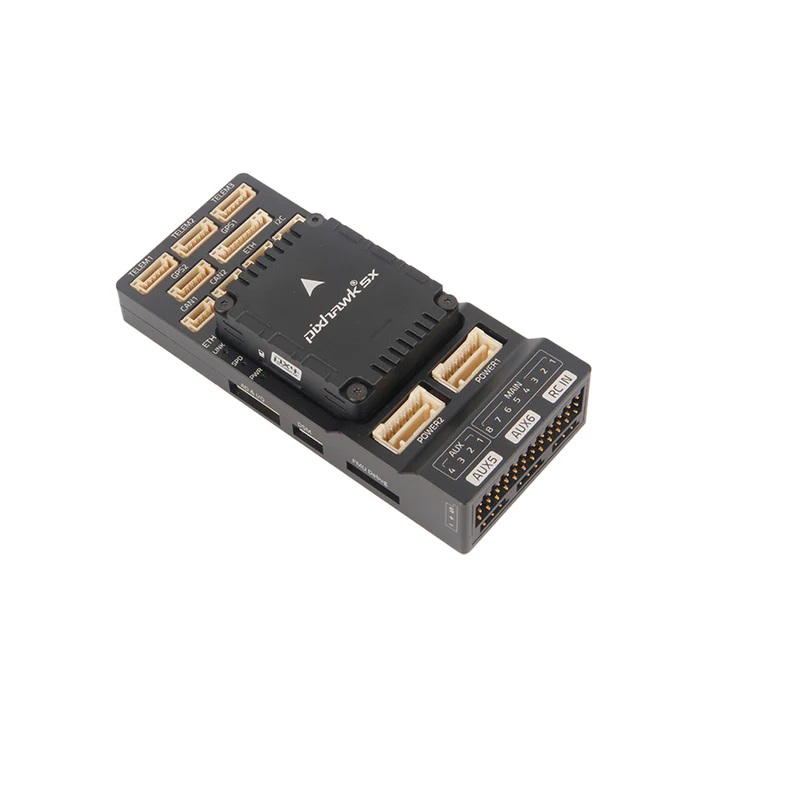

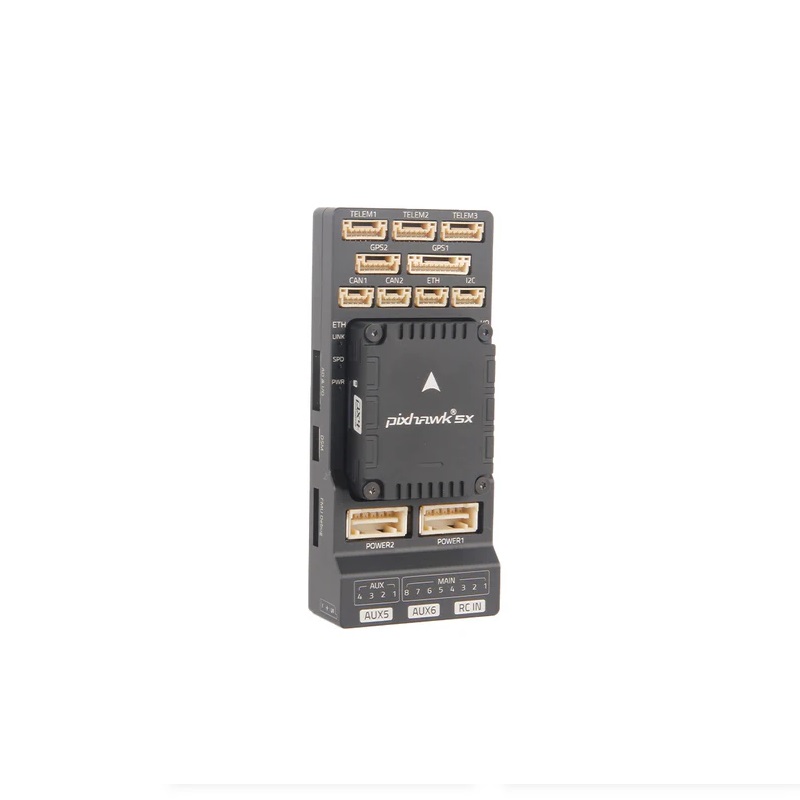

Holybro Pixhawk 5X Standard Set v2A+M9N GPS

The Pixhawk 5X is the latest update to the successful family of Pixhawk flight controllers, based on the Pixhawk FMUv5X Open Standard and the Pixhawk Autopilot Bus Standard. It comes with the latest PX4 Autopilot pre-installed, triple redundancy, temperature-controlled, isolated sensor domain, delivering incredible performance and reliability.

Inside the Pixhawk 5X, you can find an STMicroelectronics based STM32F7, paired with sensor technology from Bosch, InvenSense, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications. The Pixhawk 5Xs F7 microcontroller has 2MB flash memory and 512KB RAM. The PX4 Autopilot takes advantage of the increased power and RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

Features:

1. High-Performance IMUs: Triple-redundant, low-noise IMUs for enhanced stabilization.
2. Redundant Sensors: Dual barometers and seamless failover for reliability.
3. Advanced Vibration Isolation: Filters high-frequency vibrations for accurate sensor readings.
4. Independent Power Control: Separate LDOs for each sensor set.
5. External Sensor Bus: SPI5 with dual chip select lines and data-ready signals for add-on sensors.
6. Ethernet Support: Integrated Microchip Ethernet PHY (LAN8742AI-CZ-TR) for high-speed mission computer communication.
7. Battery Monitoring: Two smart battery ports with SMBus and INA226 support.
8. Firmware Compatibility: Fully compatible with PX4 and ArduPilot.

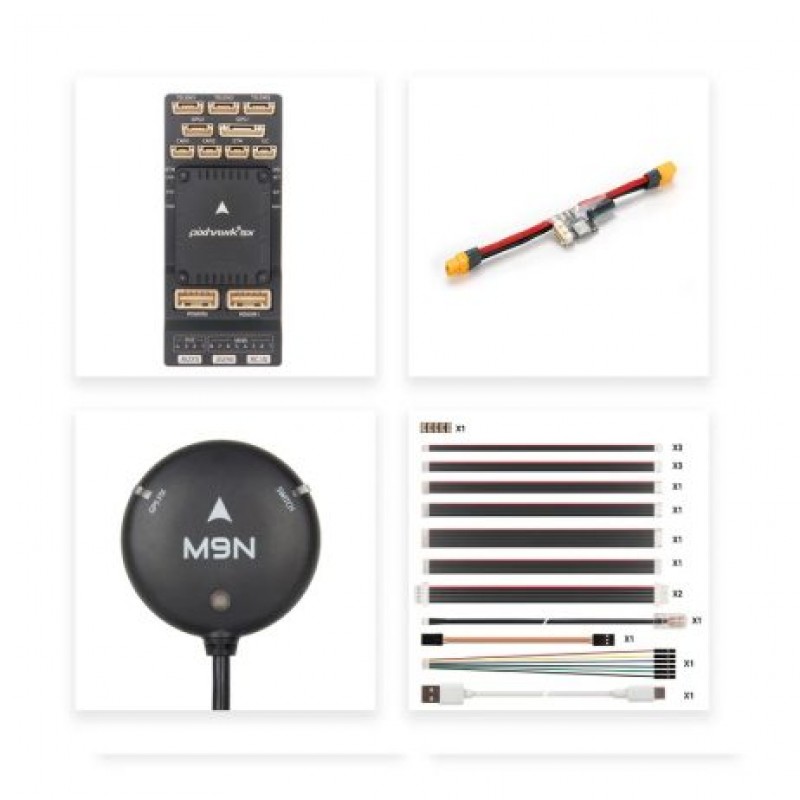

Package Includes:
