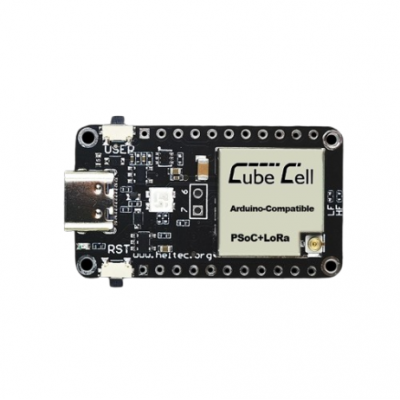

HELTEC Automation Lora development Board SX1262 ASR6502 Node Solar charging IoT LoRaWAN V2 (433-510mhz)

HTCC-AB01 (V2) belongs to Cubecell (TM) Series made by the Heltec team, mainly for LoRa/LoRaWAN node applications.

HTCC-AB01 (V2) is based on ASR6052, the chip is already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino, can run the LoRaWAN protocol stably, and can easily connect lithium batteries and solar panels.

HTCC-AB01 (V2) is a Dev-Board. Which is an upgraded version of HTCC-AB01, and can pin-to-pin placement with the previous version.

Features:

1. Perfect Arduino-Compatible!
2. CE and FCC certification;
3. Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262;
4. LoRaWAN 1.0.2 support;
5. Ultra low power design, 3.5uA in deep sleep;
6. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
7. Good impendence matching and long communication distance.
8. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
9. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
10. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

Package Includes:

1 x Cubecell AB01 Dev-board

1 x Antenna

1 x SH1.252 Battery Connector
