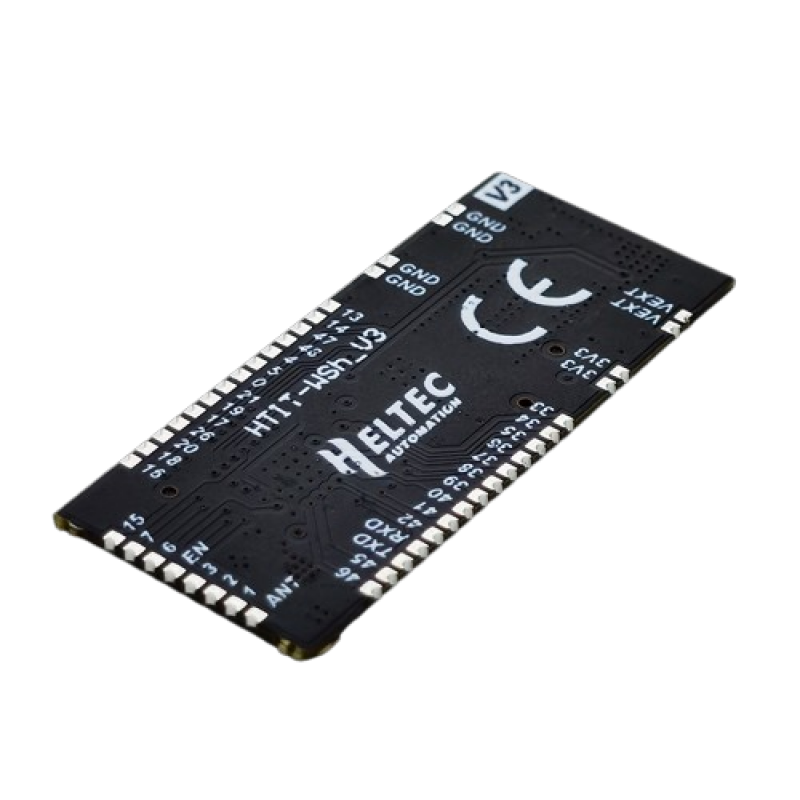

HELTEC Automation ESP32-S3 wireless shell compatible with Arduino module SX1262 LoRaWAN WIFI BLE V3 (433-510mhz)

  • Product Code: EPI28246
  • Availability: 3

0 reviews Write a review

  • Rs.1635.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

HELTEC Automation ESP32-S3 wireless shell is a long communication range, high receive sensitivity, low power consumption(9uA) and low cost LoRa node module. The HTIT-Wsh is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262). 38.4 x 16.1 x 3.2(mm) size with 1.27mm stamp holes package makes it can be assembled into your PCB or products directly.
HTIT-Wsh is provide Wi-Fi, BLE and LoRa solution, perfectly support Arduino. Users can easily carry out secondary development and application.

Features:

  1. CE Certificate;
  2. Microprocessor:ESP32-S3FN8 (Xtensa 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240 MHz), with LoRa node chip SX1262;
  3. RF shielding (contain a shield shell) and other protection measures;
  4. Integrated WiFi, LoRa, Bluetooth network connections, both of them are IPEX socket;
  5. Support the Arduino development environment;
  6. (Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The
  7. board is available, the serial number can be queried onthis page);
  8. With good RF circuit design and basic low-power design (sleep current: 9uA theoretically), it is convenient for IoT application vendors to quickly verify solutions and deploy applications.

Package Includes:

1 x HELTEC Automation ESP32-S3 wireless shell compatible with Arduino module SX1262 LoRaWAN WIFI BLE V3 (433-510mhz)
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
