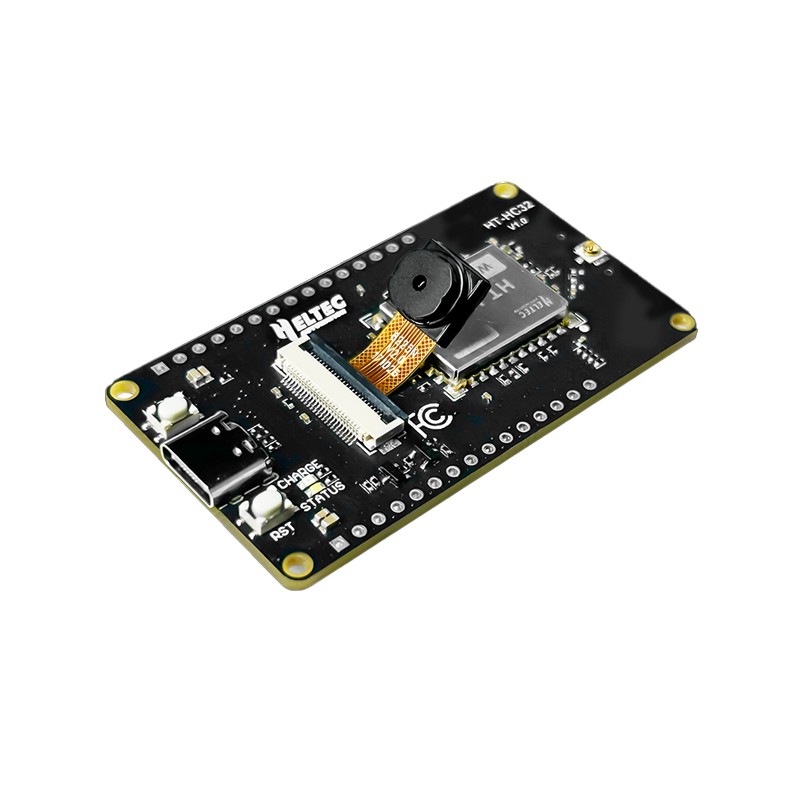

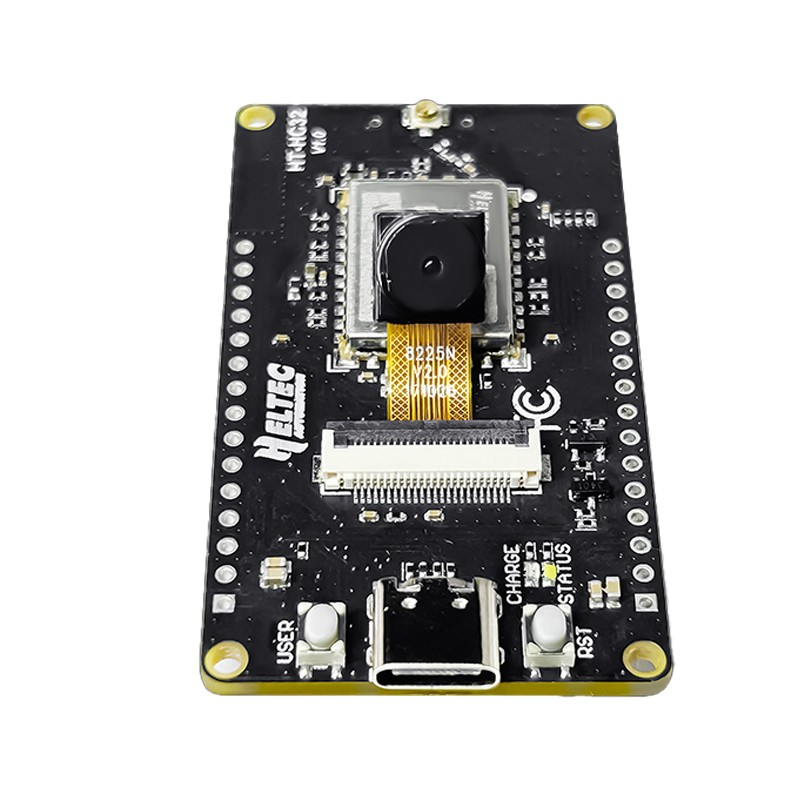

Heltec Automation ESP32-S3 Wi-Fi Development Board with HaLow Camera HT-HC01, long transmission range, up to over 1~2km, low power consumption

The HT-HC32 from Heltec Automation is a powerful ESP32-S3-based Wi-Fi Development Board integrated with a 200-pixel wide-angle camera and a Wi-Fi HaLow module (HT-HC01). It supports long-range wireless transmission up to 2 km and speeds up to 32 Mbps, making it ideal for IoT applications. With low power consumption, robust signal penetration, and comprehensive features like SD card support and Type-C protection, it suits smart homes, agriculture, and industrial automation.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Wi-Fi HaLow Support (IEEE 802.11ah) with 12 km range
2. ESP32-S3 MCU with dual-core processor
3. 200-pixel wide-angle camera with auto exposure/gain, image scaling, and compression
4. Integrated SD card slot for local data storage
5. USB Type-C interface with ESD, short-circuit, and RF shielding protection
6. Three connectivity options: Wi-Fi, Bluetooth, and Wi-Fi HaLow
7. Low power consumption design with battery management system
8. Arduino support for easy development
9. High-speed data transmission up to 32 Mbps

Package Includes:

1 x Heltec Automation ESP32-S3 Wi-Fi Development Board with HaLow Camera HT-HC01
