HELTEC Automation Cube cell AB02S LoRa GPS LoRaWAN Development Board ASR6502 Solar Internet of Things Low Power Smart Agriculture (433mhz)

  • Product Code: EPI28247
  • Availability: 3

0 reviews Write a review

  • Rs.2750.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.

CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.

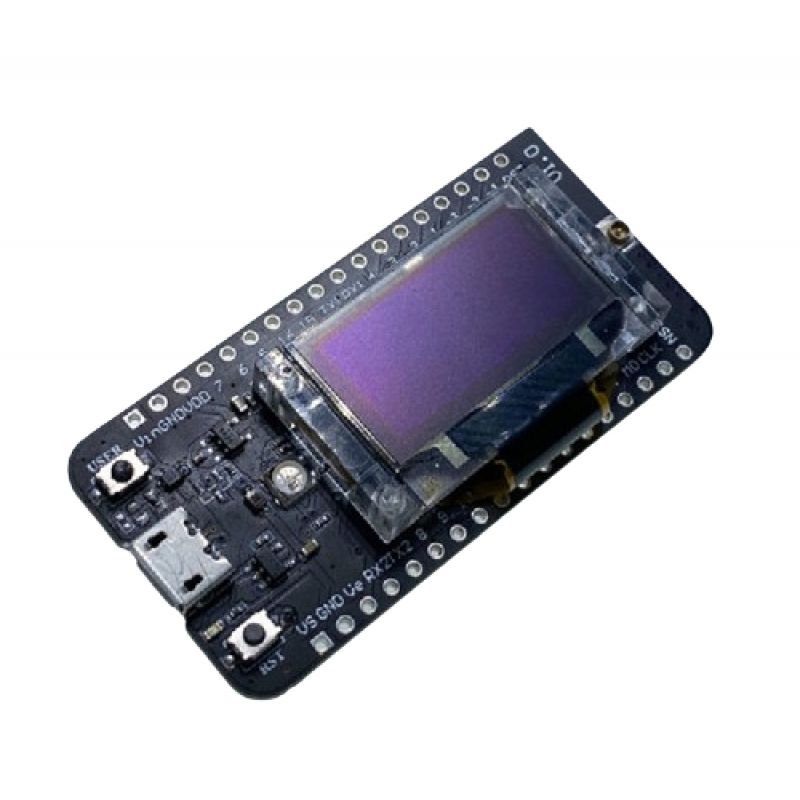

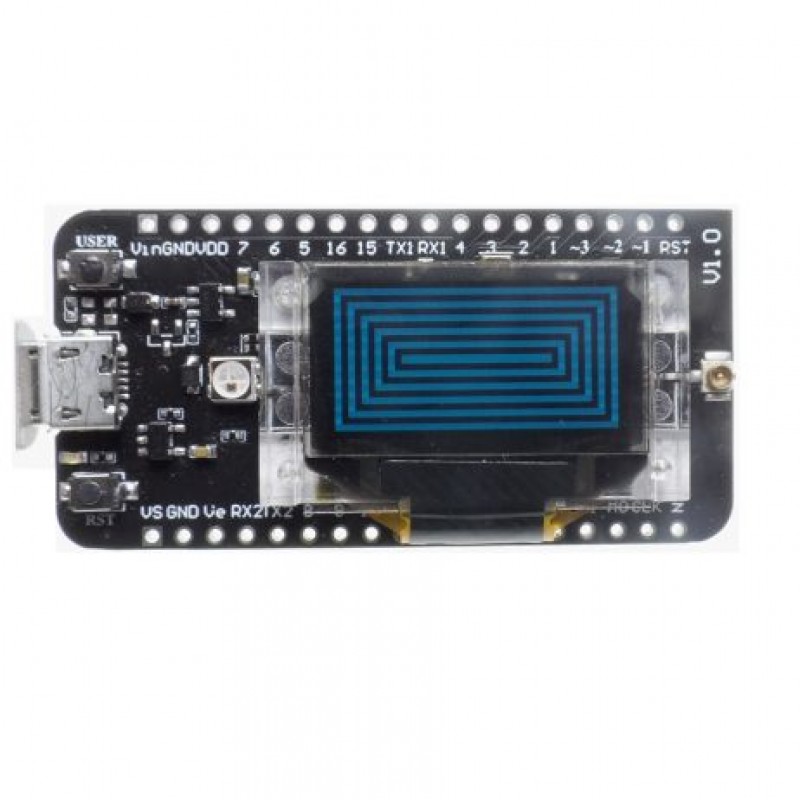

HTCC-AB02S is a Dev-Board. Already integrated AIR530Z GPS module, friendly designed for developers, easy to verify communication solutions.

Features:

  1. Perfect Arduino-Compatible!
  2. CE and FCC certification.
  3. Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262.
  4. LoRaWAN 1.0.2 support.
  5. Ultra-low power design, 3.5uA in deep sleep.
  6. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
  7. Good impendence matching and long communication distance.
  8. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
  9. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures.
  10. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
  11. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information
  12. Ultra low power design, 21uA in deep sleep.
  13. Use Air530 GPS module, GPS / Beidou Dual-mode position system support.
  14. Solar Energy: VS pin can be connected to 5.5 ~ 7V solar panel
  15. Max. TX Power: 22 1dBm
  16. Max. Receiving Sensitivity: -135dBm
  17. Hardware Resource: UART x 2, SPI x 2, I2C x 2, SWD x 1, 12-bits ADC input x 3, 8 channel DMA engine, GPIO x 16

Package Includes:

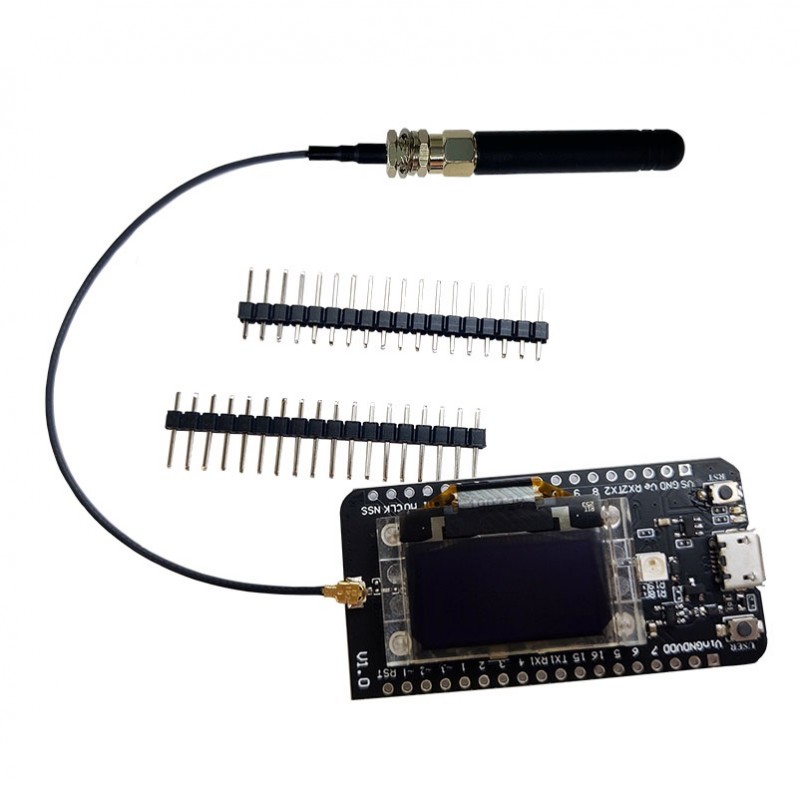

1 x CubeCell AB02S GPS-6502

1 x Antenna

1 x SH1.252 Battery Connector
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.
