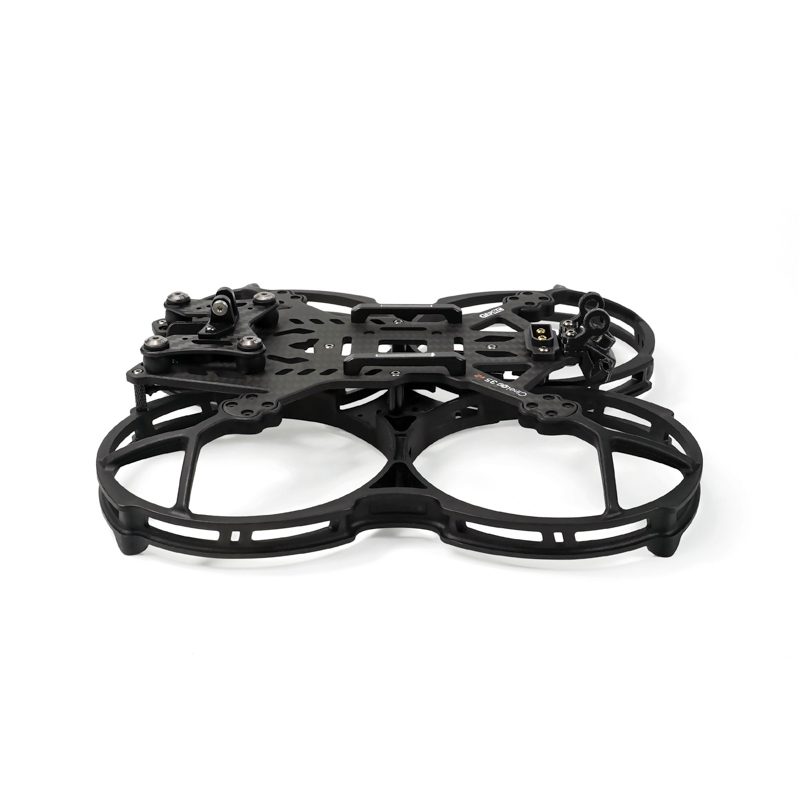

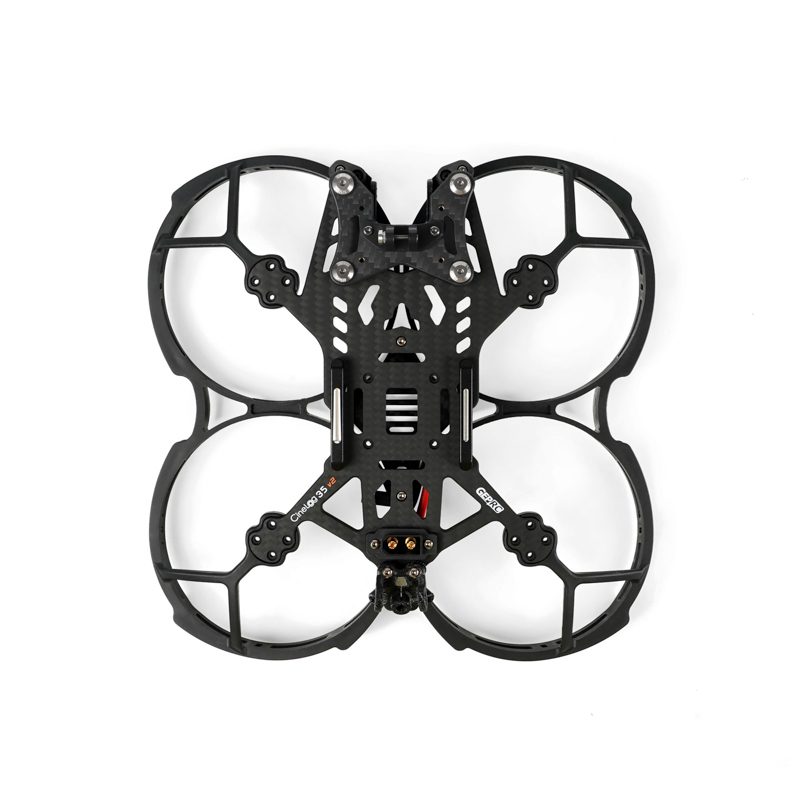

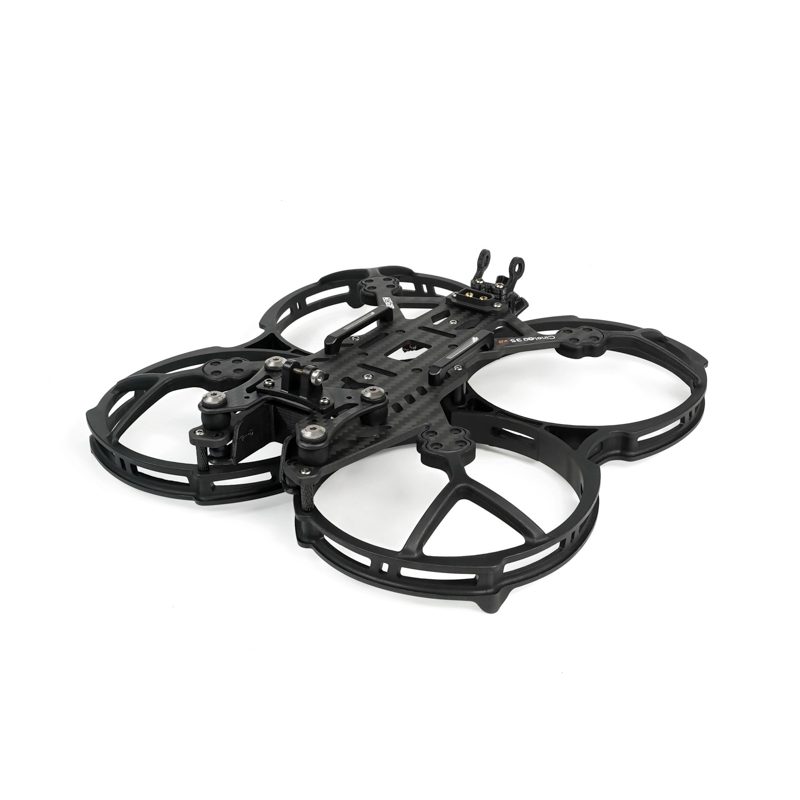

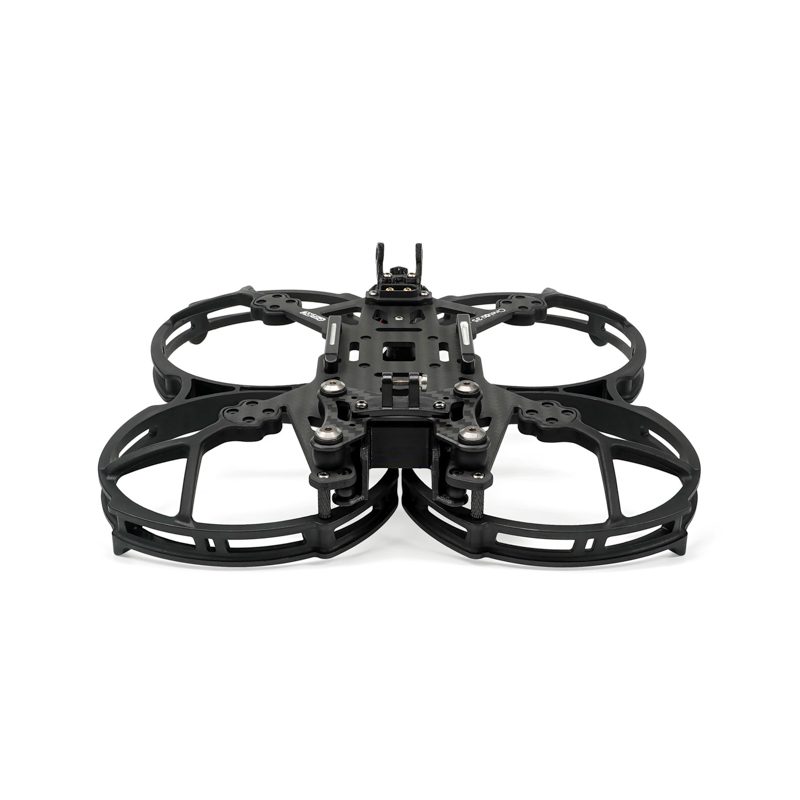

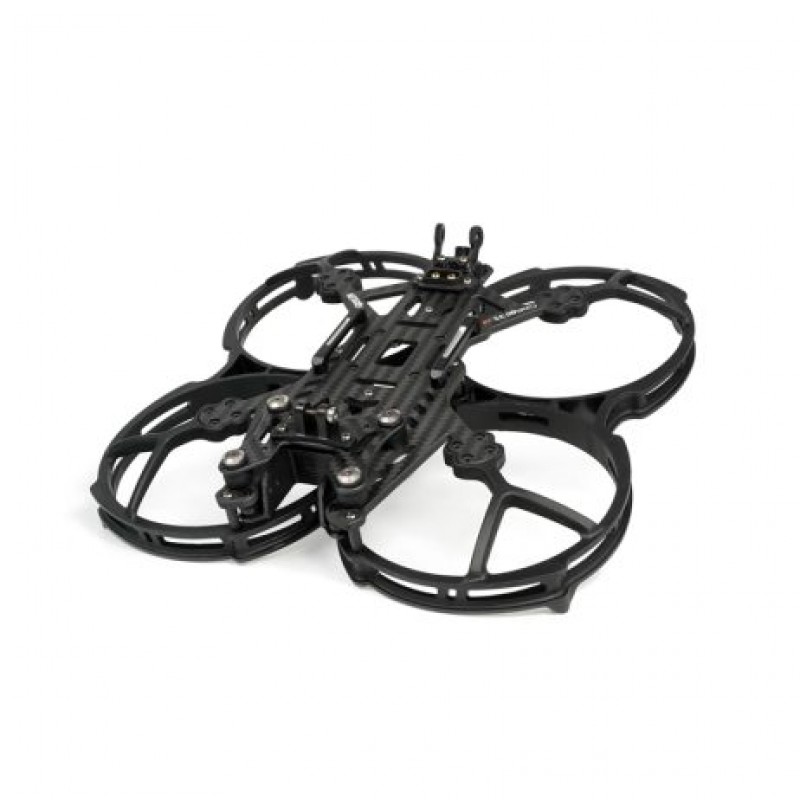

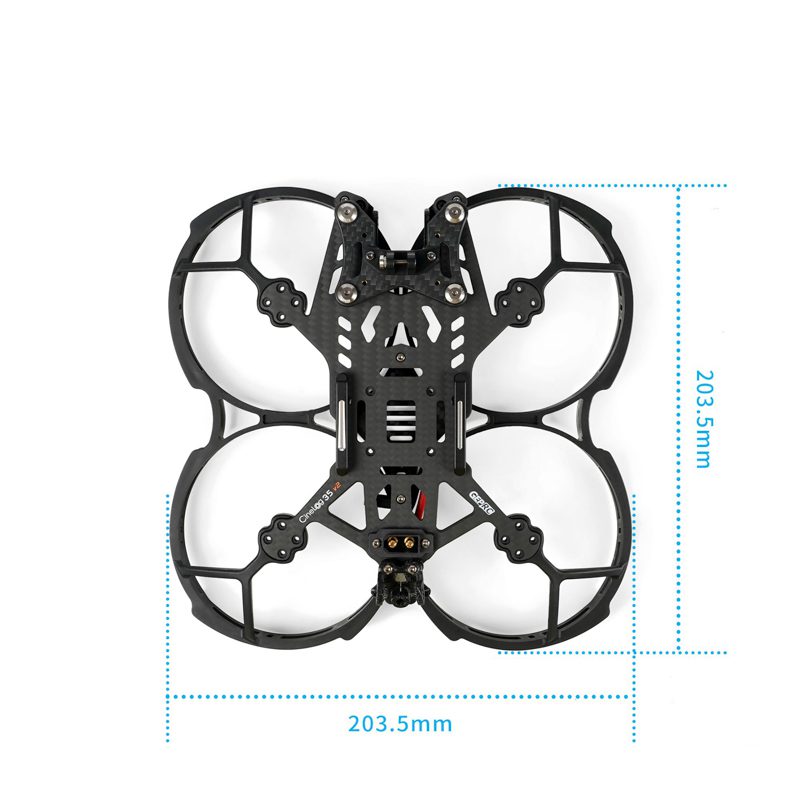

GEPRC-CL35V2 Frame

The GEPRC CL35 V2 Frame is a refined upgrade designed for cinematic drone builders using the DJI O3 Air Unit. With enhanced anti-vibration camera mounting, reinforced carbon and aluminum construction, and injection-molded prop guards, it offers maximum stability and performance. Built with user-friendly features like an integrated XT60E1-M plug and easy-access SD/USB ports, the CL35 V2 ensures a seamless flying and filming experience for professionals and hobbyists alike.

Features:

1. Storage card & USB port access on O3 prop guard.
2. Anti-shake camera mount combats IMU resonance.
3. Secure battery mounting with aluminum strap hardware.
4. XT60E1-M plug and carbon plate integration.
5. Durable prop guards with reinforced aluminum columns.
6. Lightweight, impact-resistant structure.
7. Easy camera and component installation.
8. Compatible with 3.5 props and O3 Air Unit.

Package Includes:

Carbon Plates:

1 Main carbon plate (3.0mm)

1 Top Plate (2.0mm)

1 Bottom plate (1.5mm)

Screw Kits:

2 Battery strap aluminum parts

2 7075 mesh aluminum column M211.54

4 7075 mesh aluminum column M2253.3

4 Custom half crescent head screws M315

6 Cup head screw M218

2 Round head screws M216

4 Round head screws with pad M24

4 Round head screws M25.5

30 Round head screws M27

14 Round head screws M212

16 Round head screws M28

6 Round head screws M1.68

4 Round head screws M26

6 Round head screws M2.56

1 Chamfered hex socket screw M528

4 Press rivet nuts M3

4 Self-tightening nuts M2

18 Iron nuts M2

1 Flange nut M5

12 Press rivet nuts Brass Color M21.9-OD4.9

3D Printed Parts:

1 Camera mount (2 holes)

1 Camera mount (4 holes)

1 Receiver mount

1 T-shaped antenna mount

1 VTX antenna mount

1 Capacitor mount

1 Power plug printed part

1 GP Camera base mount

Injection Molded Parts:

1 Propeller guard

4 FC vibration rubber (M26)

6 Camera vibration rubber

4 Gimbal shock absorber rings M310.510.25

Other Accessories:

1 XT60E1-M plug with cable

4 Motor hubs M715mm

3 5.8G VTX extension cable (80mm)

7 Heatshrink tubes

1 Naked GP Camera base mount

4 BEC pads

2 Battery non-slip pads (Cinelog 35 V2)

2 Receiver antenna sticks (100mm)

1 Battery strap M20250

1 Battery strap M20220

1 L-shaped screwdriver 1.5mm

1 L-shaped screwdriver 2.0mm

1 L-shaped screwdriver 3.0mm

1 M5 wrench

1 Keychain

1 Quick Start Guide

2 GEPRC Stickers

1 Service Card

1 Packaging Box

1 User Manual

1 Promotion Card
