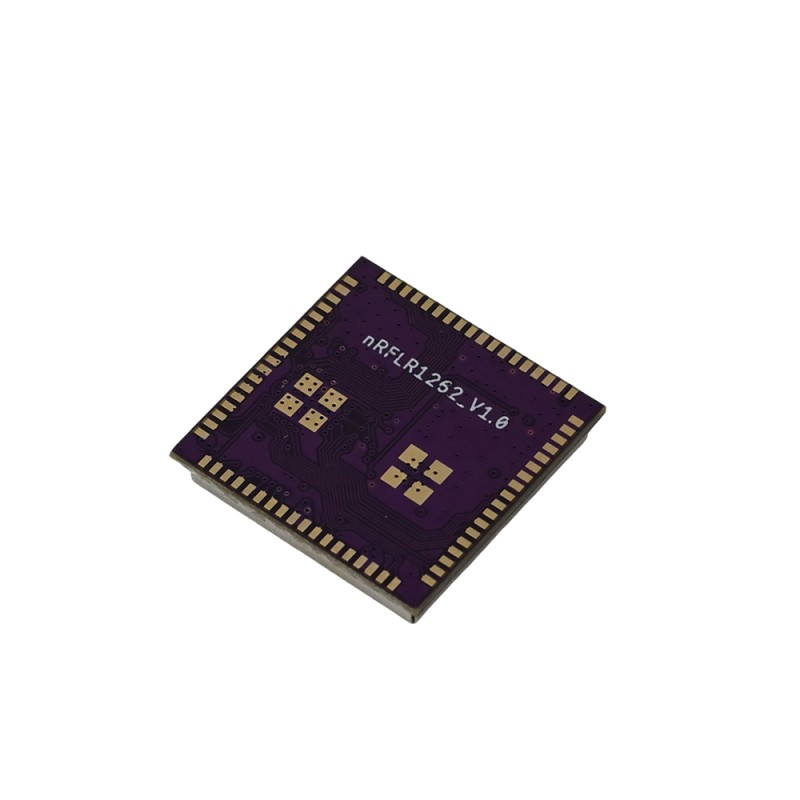

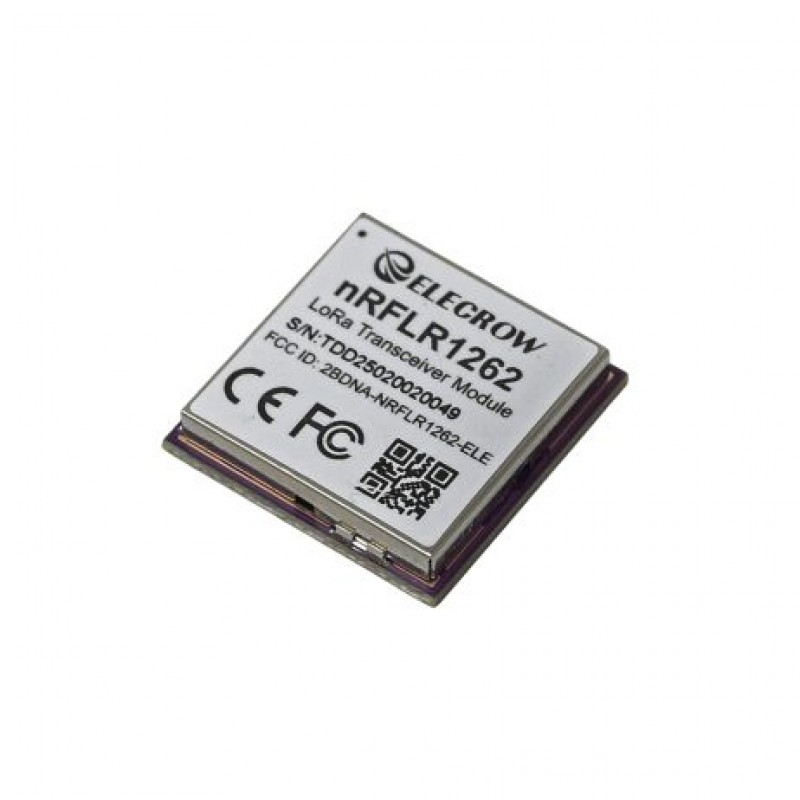

Elecrow nRFLR1262 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech SX1262

The Elecrow nRFLR1262 is a compact, ultra-low-power wireless transceiver module that combines the Nordic nRF52840 SoC with the Semtech SX1262 LoRa transceiver. Designed for long-range and energy-efficient communication, this module supports global LoRa and LoRaWAN frequencies (850930 MHz) and operates with a transmission rate of 0.01862.5 kbps and up to +20dBm output power.

Elecrow nRFLR1262 also includes Bluetooth 5.3, Bluetooth Mesh, Thread, Zigbee, and NFC for multi-protocol connectivity. Built-in AT command firmware and SDK support enable fast and flexible development. With a rich set of GPIOs including UART, I2C, and ADC, it offers great expandability for industrial, agricultural, smart city, and medical IoT applications.

DIAGRAM

Transceiver Module Comparison

Features:

1. Integrated nRF52840 + SX1262 for LoRa, Bluetooth 5.3, NFC, and Zigbee communication.
2. Ultra-low power: Only 5A in sleep mode.
3. Wide frequency support: 850930 MHz ISM band, LoRaWAN Class A/B/C.
4. Transmission range: Up to 10 km in open environments.
5. High sensitivity: -125.5 dBm with 170 dB link budget.
6. Multiple interfaces: UART, I2C, SPI, ADC, NFC, SWD for rich peripheral support.
7. Built-in AT command firmware, plus SDK for custom development.
8. Industrial-grade build: -40C to +85C, FCC/CE/RoHS certified.

Package Includes:

1 x Elecrow nRFLR1262 Wireless Transceiver Module-Integrates Nordic nRF52840 and Semtech SX1262.
