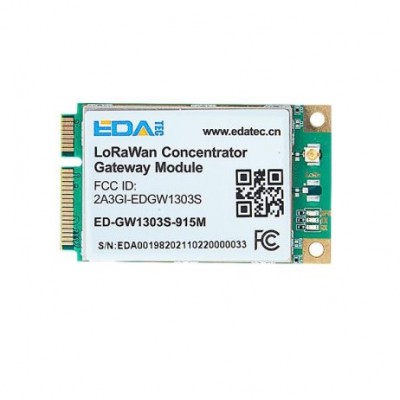

EDATEC 915M Lora Module for US Base on SX1303 FCC

ED-GW1303S module is a new generation of LoRaWAN gateway module in mini-PCIe form-factor with SPI interfaces based on Semtech SX1303 and SX1250. It features extremely low power consumption, outstanding performance with CE, FCC certified.

ED-GW1303S LoRaWAN gateway module support both US915 and EU868 frequency bands, enable you to have a wide-range of LoRaWAN frequency plans options to choose. This is Lora Module with part no. code as ED-GW1303S-915M.

EDATECs ED-GW1303S is a LoRaWAN gateway module in a mini PCIe form-factor with SPI interfaces and is based on the Semtech SX1303 and SX1250. The module features extremely low power consumption and outstanding performance with CE and FCC certifications.

ED-GW1303S is designed for M2M and IoT applications and can be widely applied in LPWAN gateway supported scenarios. It would be a perfect choice for you to significantly reduce the technical difficulties and time-consumption when developing the LoRa gateway devices, including LoRaWAN gateway, miner hotspots, etc.

Pinout Interfaces:

• Power Supply This module must be suppliedthrough the VCC_3V3 pins by a DC power
• SPI Interfaces Its SPI slave side and givesaccess to the configuration registers of SX1303
• GPS-PPS This module includes the GPS_PPSinput for received packets time-stamped and Finetimestamp
• RESET It includes the RESET active-high inputsignal to reset the radio operations as specifiedby the SX1303Specification
• Antenna RF Interface The module has one RF interface over a standard UFL connector, The RF port supports both Tx and Rx, providing the antenna interface.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

Package Includes:

1 x EDATEC 915M Lora Module for US Base on SX1303 FCC
