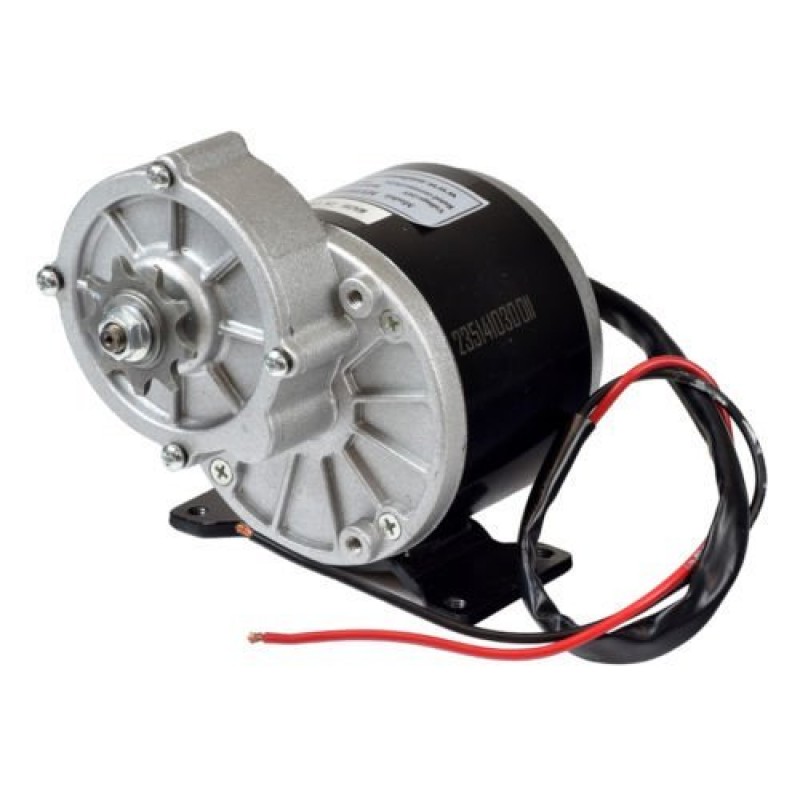

Ebike MY1016Z3 24V 350W Gear DC Motor - 324 RPM (GB)
- Product Code: EPI8261
- Availability: 32
-
Rs.5449.00
- (Excluding 18% GST)
OR
Ebike MY1016Z3 24V 350W Gear DC Motor is a popular reduction dc motor & its simply the most commonly used motor for scooters, bikes, and quads available in the market! Also due to its robustness, it is also in many DIY projects like Segway, e-cars, etc, and in many robots like ATV robots, combat robots, etc.

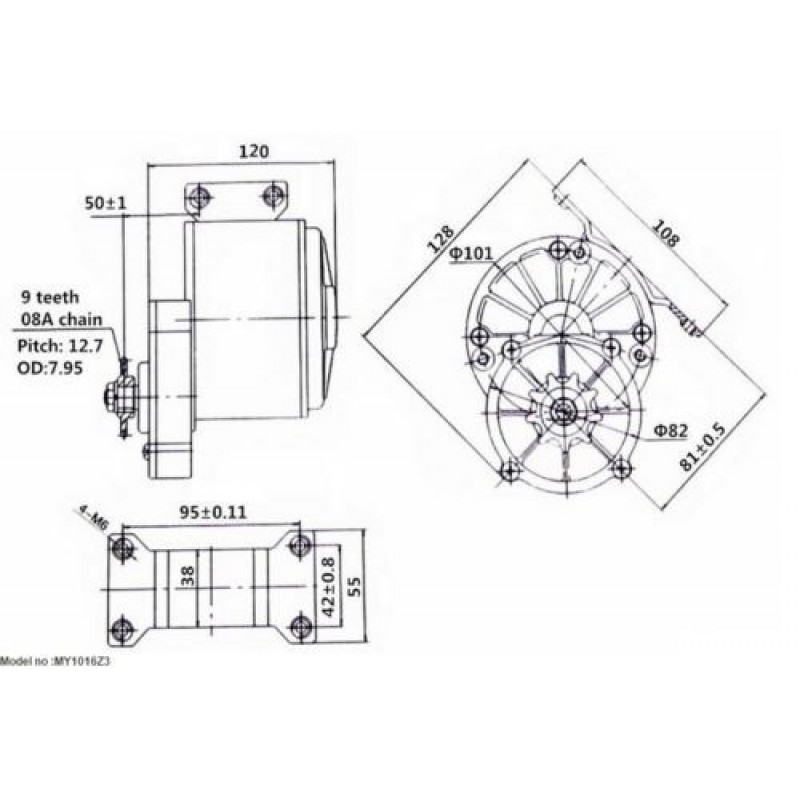

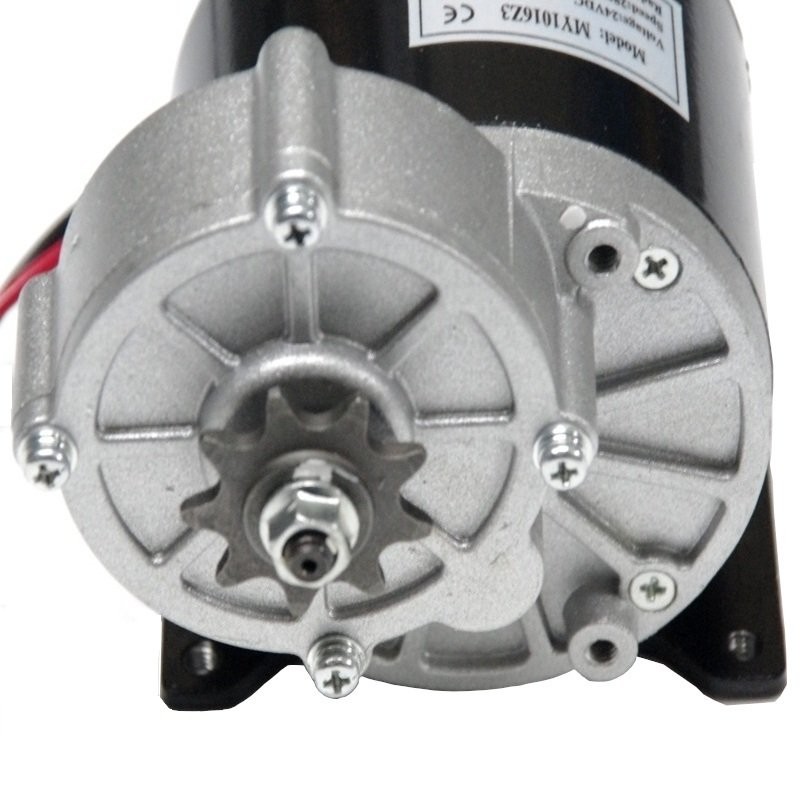

We understand the inventive mind and the thrill of creating something all your own. That is why we are proud to present the Ebike MY1016Z3 24V 350W Gear DC Motor 324 RPM complete with a 9 teeth sprocket having 1/2 (12.7mm) pitch.
This motor is great for those who want to make their own custom electric vehicle, whether its a scooter, electric bicycle, or something the world isnt even ready for. This electric motor comes with gear reduction which produces more low-end torque than your standard motor. You can change motor direction to left or right by just reversing wires. You can also use the following recommended products with this motor.
If you are wandering to build an E-bike and don't know what will be the best Motor for you then worry no more, we have got your back. At Robu, we have everything for you to get started with your E-bike project.
RecommendedProduct with this Motor:
Motor Controller 24V for MY1016 350W
24V/36V/48V EBike Twist Throttle Grip Accelerator for E-bike
Brake for Ebike
Note:
- This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motors power wires.
- The motor has a gearbox attached to it.
Package Includes :
1x Ebike MY1016Z3 24V 350W Gear DC Motor 324 RPM
Specifications :-
| Model | MY1016Z3 |
| Operating Voltage (VDC) | 24 |
| Operating Power | 350 watt |
| Rated Current(A) | 19.2 |
| Rated Speed After Reduction (RPM) | 324 |
| Rated Torque (Kg-Cm) | 110 |
| Stall Torque(Kg-Cm) | 110 |
| Sprocket | 9 teeth |
| Pitch(inch) | 1/2 |
| Weight (Kg) | 2.98 |
| Gearbox | Yes |
| Cable Length (Meter) | 0.5 |
| Shipment Dimensions | 20x15x10 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 5662.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
