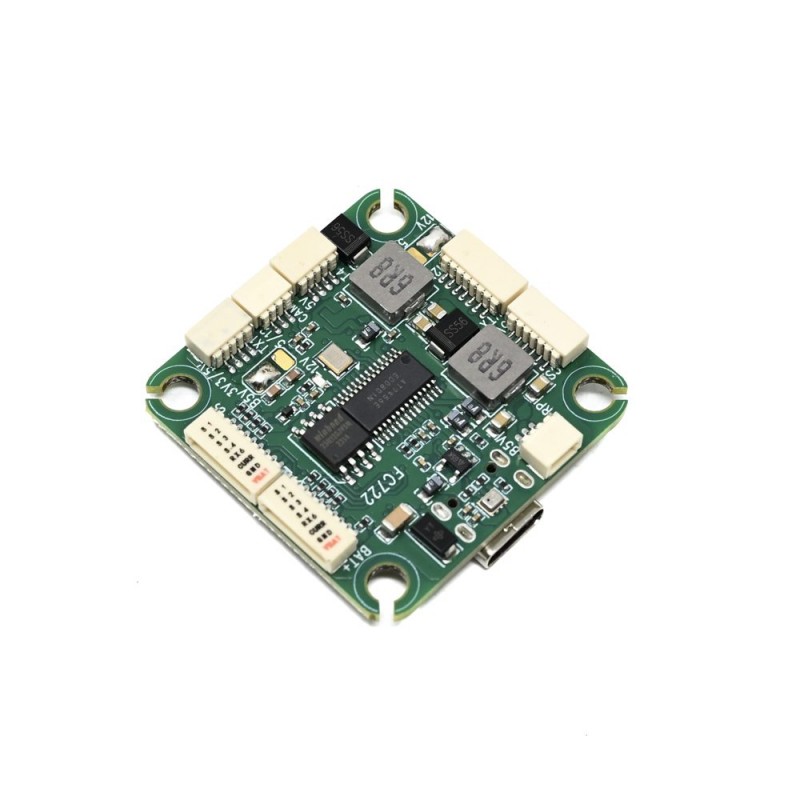

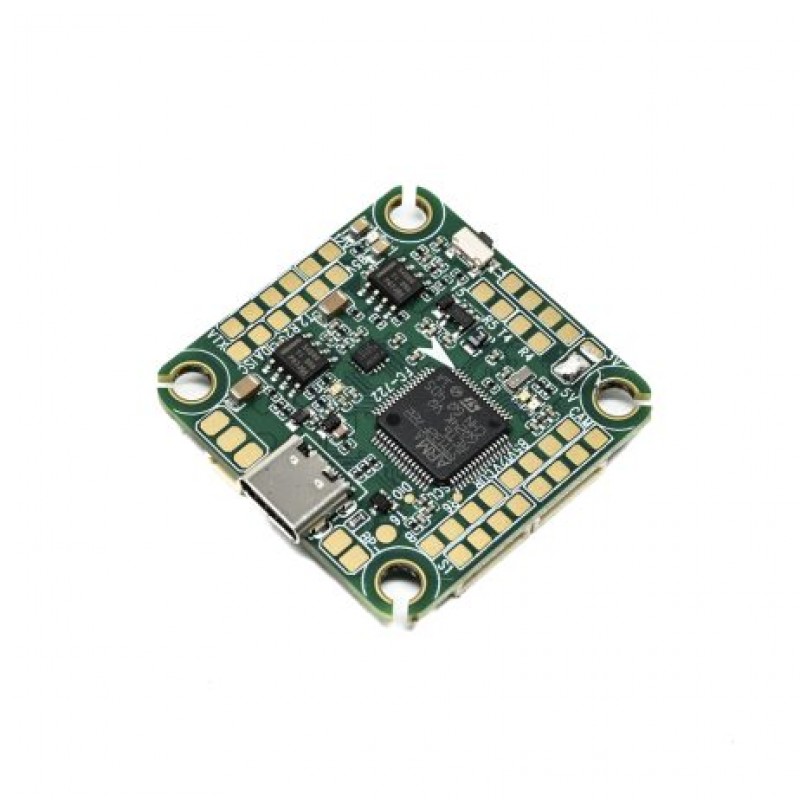

DYS F722 Flight Controller (ICM42688P)

The DYS F722 Flight Controller with ICM42688P is engineered for high-performance drone applications. Powered by the STM32F722 microcontroller, it integrates an ICM42688P gyroscope, BMP280 barometer, and AT7456E OSD for precise flight control and telemetry. With 6 UART ports, 8 ESC motor outputs, and a 16MB black box, it offers extensive connectivity and data logging capabilities. The controller supports 6S LiPo input and provides BEC outputs of 3.3V/1A, 5V/3A, and 12V/3A. Its compact 38mm x 38mm design with 30.5mm mounting holes ensures compatibility with various drone frames. Ideal for FPV enthusiasts seeking reliability and advanced features.

Features:

1. Equipped with STM32F722 microcontroller for robust processing power.
2. Utilizes ICM42688P gyroscope for high-precision stabilization.
3. Integrated BMP280 barometer for accurate altitude measurements.
4. Includes AT7456E OSD chip for real-time on-screen display.
5. Offers 16MB black box for comprehensive flight data logging.
6. Provides 6 UART ports for extensive peripheral connectivity.
7. Supports 8 ESC motor outputs for multi-motor configurations.
8. Compatible with 6S LiPo batteries for extended flight times.
9. Features BEC outputs: 3.3V/1A, 5V/3A, and 12V/3A.

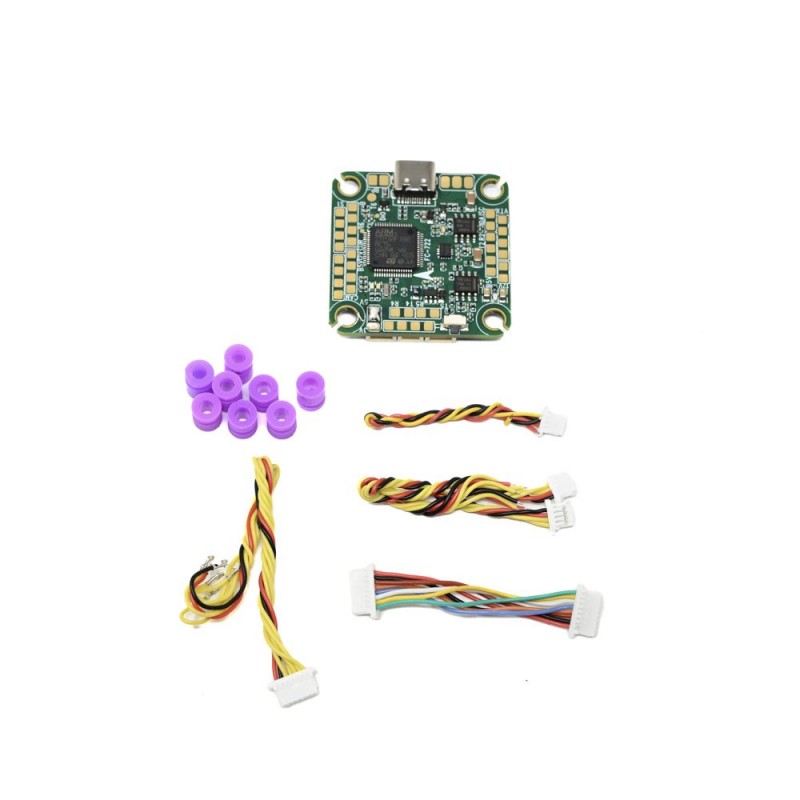

Package Includes:

1 x DYS F722 Flight Controller
