Switch Box for 2 DPDT Switches

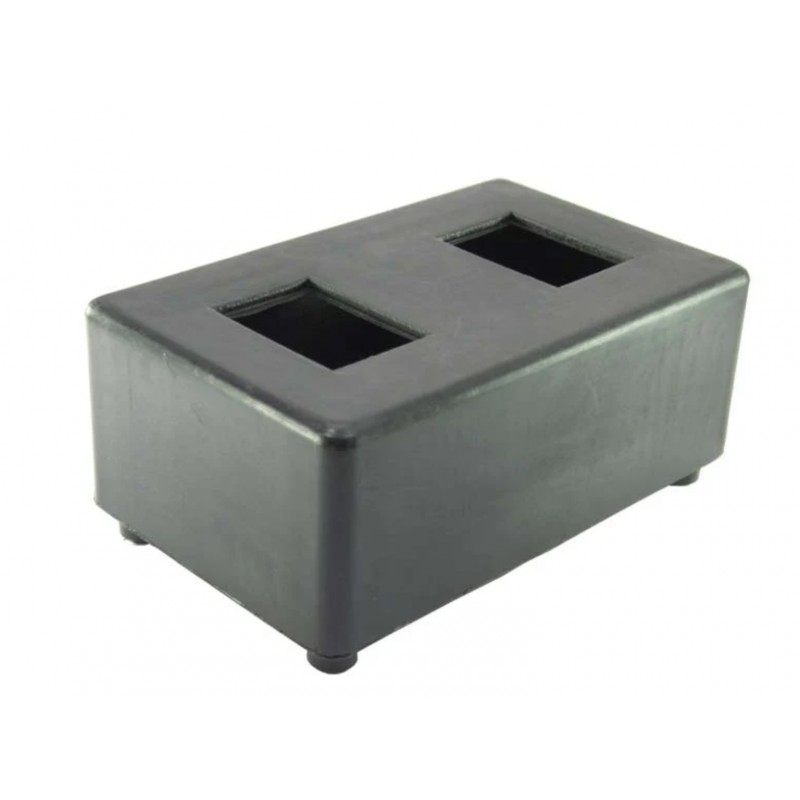

This is Robotics Switch Box Enclosure Without DPDT Switches.

The switch box is used to accommodate two DPDT Rocker Switches. It is a perfect makeshift remote for your robot.

This is a Remote Control Box for Wired Hobby Robot Control. To make the anti-clockwise motion of the motor, the polarity of supply must be inverted in a clockwise motion. For “Polarity Reversal” DPDT switches are generally used.

A Double Pole Double Throw (DPDT) switch is an electromechanical switch that has 2 inputs and 4 outputs and each input has 2 corresponding outputs that it can connect to.

APPLICATIONS:-

Remote-controlled robot.

AVR-based robotics projects.

ARM-based robotics projects.

PIC-based robotics projects.

Arduino-based robotics projects.

Raspberry-pi-based robotics projects.

Android-based robotic projects.

Features :-

Homopolymer.

Good Processability.

Good Impact Resistance.

Good Stiffness.

Switched will directly snap-fit into slots.

For Linear Actuators and other DC Motors
