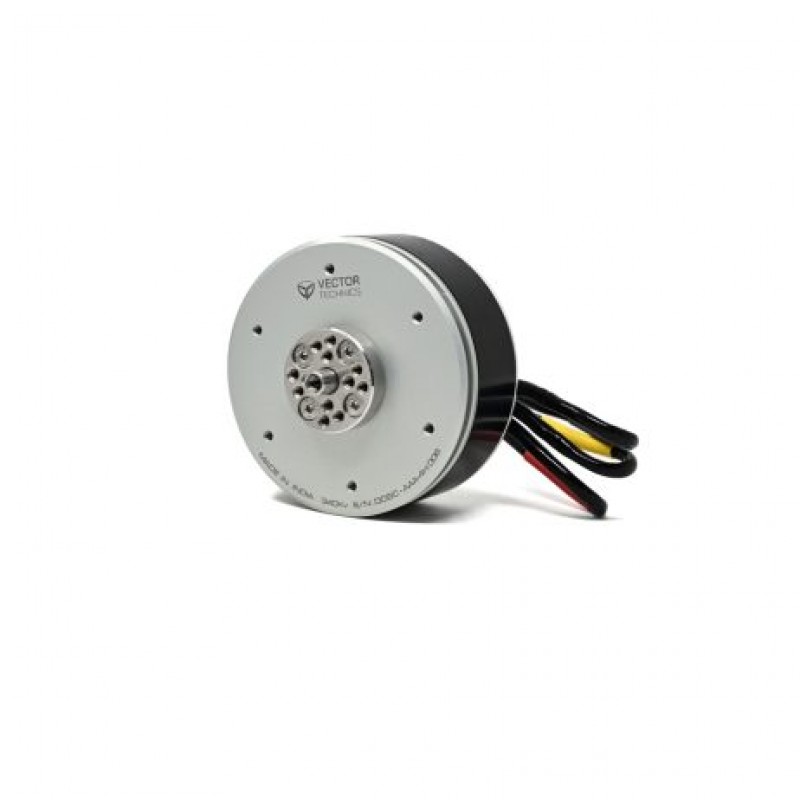

Vector 6015 -340Kv Motor

This motor features a Kv of 340 RPM/V at 48V and a Kt of 0.0407 Nm/A at 4508 rpm. It supports a maximum continuous current of 40A and delivers continuous power up to 900W. With a power density of 2.43 W/g (rated) and 3.87 W/g (maximum), the motor operates efficiently within a voltage range of 44V to 52V (12S LiHV). Ideal for high-performance applications.

Features:

1. High-efficiency motor with 340 RPM/V Kv rating at 48V
2. Torque constant of 0.0407 Nm/A at 4508 rpm
3. Supports 40A maximum continuous current
4. Delivers 900W maximum continuous power
5. Operates in a 44V to 52V (12S LiHV) voltage range
6. Durable design with triple bearings for smooth operation

Package Includes:

1 x Vector 6015 -340Kv Motor
