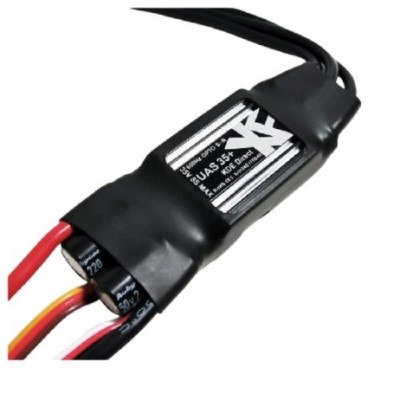

KDE 35A+ Electronic Speed Controller (ESC) for Electric Multi-Rotor (sUAS) Series

The KDE 35A+ Electronic Speed Controller (ESC) for Electric Multi-Rotor (sUAS) Series is optimized for multi-rotor applications and utilize a proprietary algorithm for up to 600Hz refresh rate control and high-speed response to the flight system commands. Electronic Speed Controller has dynamic PWM and Motor Advance Timing algorithms are used for optimal flight performance.

For maximum stability and performance of the flight controller, the system is tuned to react almost instantaneously to the flight commands and UAS Brushless Motor response capability. ESC Programming Device: KDE Direct Device Manager Adapter

Electronic Speed Controller include 200C, 14 AWG silicone-wire power leads and 15 AWG silicone-wire motor leads with dual 4.0mm (KDEXF-BC40) and 3.5mm (KDEXF-BC35) 24K matching Bullet Connectors. The UAS series is compatible with 2S LiPo 8S LiHV power systems allowing for the next level of performance and efficiency for your sUAS and Multi-Rotor applications.

Features:

1. Regenerative Braking active braking during motor deceleration phase, providing instantaneous response to the flight controller
2. commands and matched-response to acceleration profiles (less float during flight).
3. Temperature Controlled Synchronous Rectification new proprietary algorithm for smooth-running motors at low-throttle and improved,
4. faster response under high-peak loads; all while significantly increasing flight-time efficiency and reducing operating temperatures (also termed active-freewheeling).
5. Dynamic Timing and Startup Power optimally-tuned for smooth and precision-controlled startup throughout the full-range of UAS Brushless Motors (no hesitation, stuttering, or response lag).
6. Increased Drive and Throttle Frequency Resolution high-accuracy, linear throttle response throughout full-range of operation control.
7. Motor Synchronization frequency matched start-up protocols for smooth and efficient motor operation.
8. Anti-Spark Circuitry protects the integrity and life-span of critical connectors upon each initial plug-in and system power-up.
9. Auto Recognition of PWM Control Signals factory calibrated, automatic throttle calibration ideal for most applications.

Package Includes:

2 x KDE Direct XF 3.5mm 24K Bullet Connectors (Pair, KDEXF-BC35)
2 x KDE Direct XF 4.0mm 24K Bullet Connectors (Pair, KDEXF-BC40)
