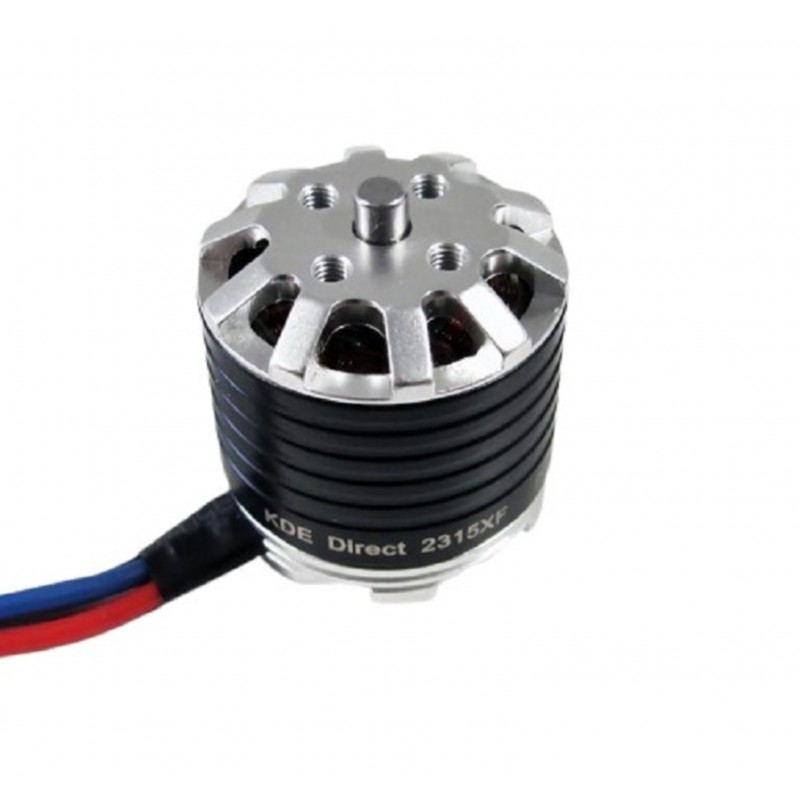

KDE 2315XF-965 Brushless Motor for Electric Multi-Rotor(sUAS) Series

The KDE 2315XF-965 Brushless Motor is a high-performance, durable motor designed for electric multi-rotor and sUAS applications. 2315XF-965 Brushless Motor features efficient copper windings, Japanese stator laminations, and high-quality bearings for smooth operation.

2315XF-965 Brushless Motor With a Kv of 965 RPM/V, adjustable timing, and versatile mounting options, it ensures reliable performance in extreme conditions and easy integration into various airframes.

Features:

1. High-Quality Construction for Extreme Durability: High-grade, 240C continuous (340C maximum) solid-core copper windings ensure failure-free operation even in extreme climates. Japanese-built 0.2 mm silicon-steel stator laminations combined with Kevlar tie-wraps for enhanced performance and efficiency.
2. Superior Bearing Design: Triple-bearing supported ABEC-7 bearings provide maintenance-free and reliable operation for hundreds of hours.
3. Optimized for Versatility and Ease of Installation: Includes pre-soldered 200C, 18 AWG, 255mm silicone-wire leads with 3.5mm 24K bullet connectors (KDEXF-BC35). Rotational-direction matched and color-coded (black/red/blue) for seamless installation into various airframes. Customizable wire leads can be easily adjusted to length and soldered as required.
4. Designed for Performance: Vibration-free and efficient operation tailored for a wide range of multi-rotor and sUAS applications. Every detail scrutinized to ensure top-tier quality and performance.

Package Includes:

1 x KDE 2315XF-965 Brushless Motor for Electric Multi-Rotor(sUAS) Series
