Holybro Pixhawk 6X(Rev8) Mini Set+M10 GPS

The Holybro Pixhawk 6X Mini Set + M10 GPS offers exceptional reliability and performance with triple redundancy, featuring three ICM-45686 IMU sensors with BalancedGyro technology and two barometer sensors. Powered by the high-performance STM32H753 processor (480 MHz), it supports fast computations and efficient data processing. The Ethernet interface ensures seamless integration with mission computers, while the temperature-controlled IMU board maintains consistent performance. With isolated sensor domains, separate power control, and a robust secure element (NXP EdgeLock SE050), the Pixhawk 6X is designed for industrial and commercial drone applications, ensuring high precision, reliability, and flexibility.

Features:

1. Redundant Sensors: 3x ICM-45686 IMU sensors (32g) with BalancedGyro and 2x barometer sensors for high reliability.
2. High-Performance Processor: STM32H753 processor running at 480 MHz for fast data processing.
3. Modular Flight Controller: Separated IMU, FMU, and Base systems with 100-pin and 50-pin Pixhawk Autopilot Bus connectors.
4. Triple Redundancy Domains: Isolated sensor domains with separate buses and power control for enhanced system reliability.
5. Vibration Isolation: Advanced durable vibration isolation material with high-frequency resonance for better sensor accuracy.
6. Ethernet Interface: For high-speed integration with mission computers, enabling fast data transmission.
7. Temperature-Controlled IMU: Optimized for consistent performance with a temperature-controlled IMU board.

Applications:

1. Drones & UAVs for mapping and monitoring.
2. Autonomous Vehicles for land, air, and sea navigation.
3. Precision Agriculture for crop monitoring and spraying.
4. Robotics for custom autonomous systems.
5. Surveillance & Security for real-time monitoring.
6. Search & Rescue for emergency response.

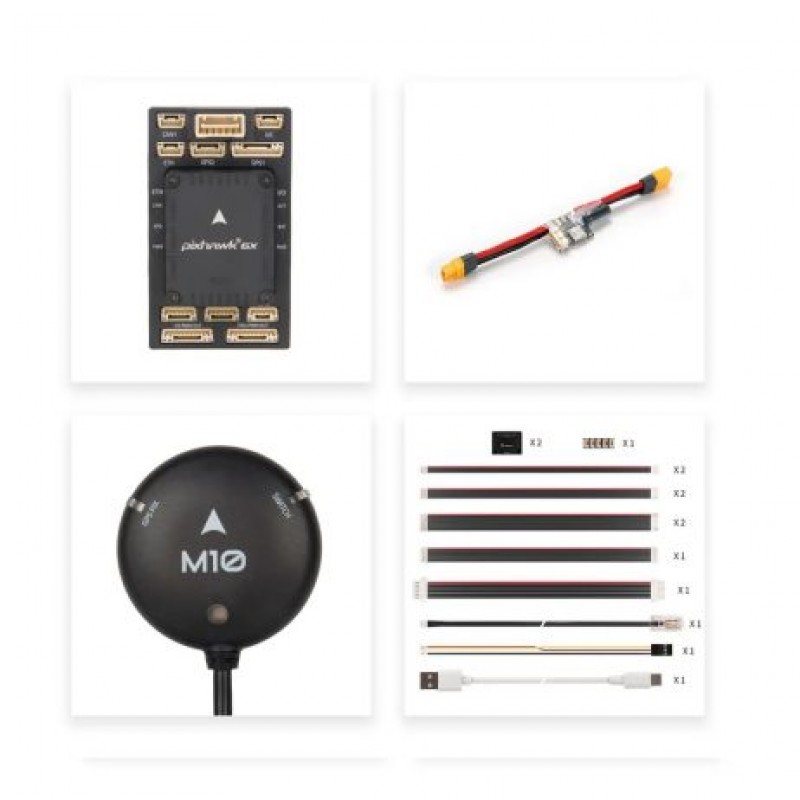

Package Includes:

1 x Pixhawk 6X Flight Controller Module
1 x Mini Baseboard
1 x PM02D HV Power Module
1 x Cable Set
1 x M10 GPS
